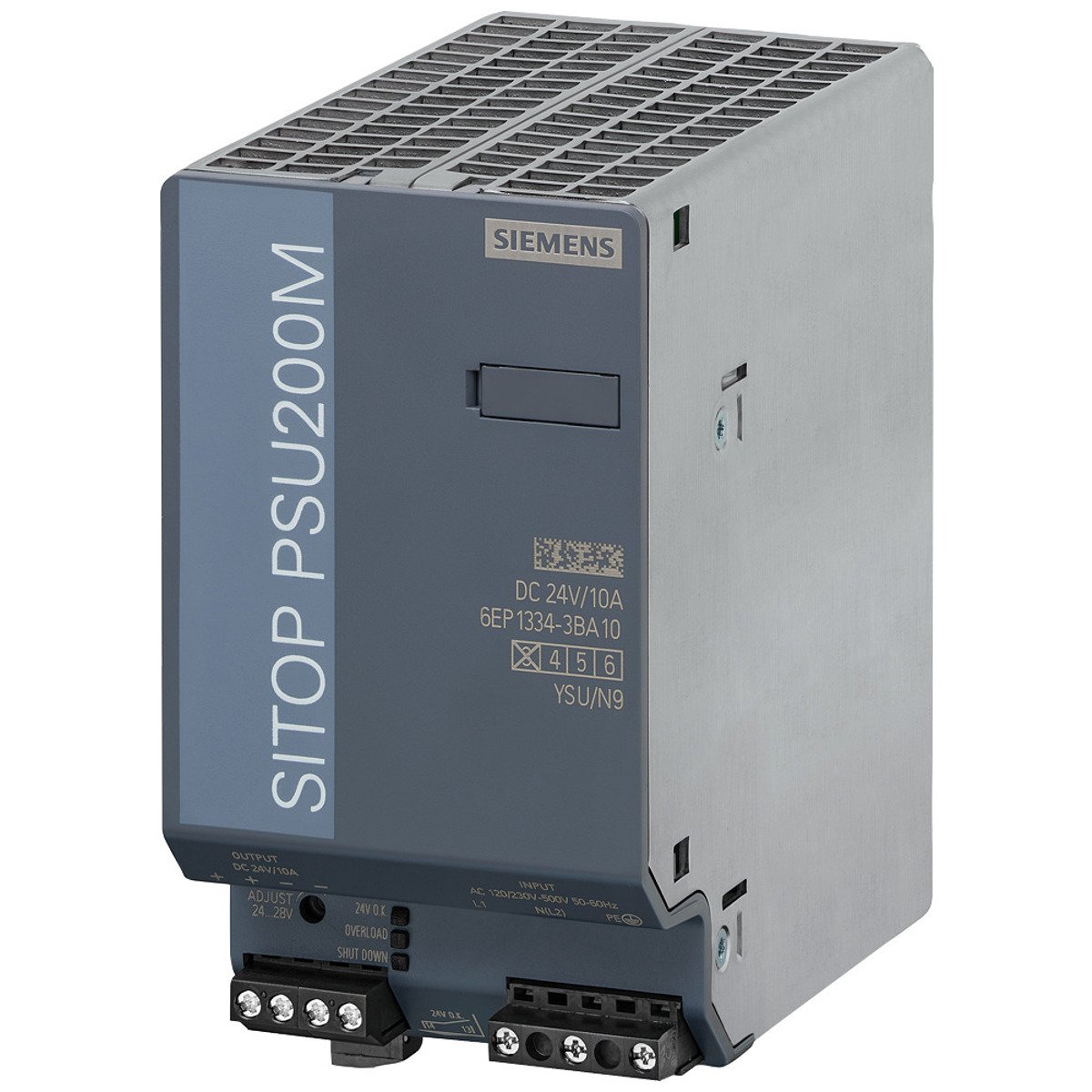

Siemens 6EP13343BA10 Sitop Psu200m 10 A Stabilized Power Supply

Product Description

The SIEMENS 6EP13343BA10 Sitop Psu200m 10 A stabilized power supply with input 120/230-500 V AC and output 24 V/10 A DC. The SITOP modular single-phase and 2-phase power supplies are technology power supplies for demanding solutions and provide maximum functionality for use in complex plants and machines. The ultra-wide-range input enables connection to single-phase supply systems.

• Power Boost function supplies up to three times the nominal current over short durations
• Choice between constant current with automatic restart or latching disconnection if overload occurs
• High degree of efficiency minimizes energy consumption and heat generation

Product Highlights

Siemens offers reliable and efficient power supplies for every plant. DIN Rail Mount.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6EP13343BA10
• Country of Origin: Romania

Technical Specifications

• Catalog Number: 6EP13343BA10
• Manufacturer: SIEMENS
• Brand: Siemens
• Country of Origin: Romania
• Made in USA: No
• UPC: 887621837259
• GTIN: 00887621837259
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: 6EP1334-3BA10
• Series: SITOP PSU200M
• Unit of Measure: EA
• Frequency Rating: 47 to 63 Hz
• Mounting Type: DIN Rail
• Output Voltage: 24 VDC
• Standard & Approvals: cULus Listed, UL 508 File No. E197259, CSA C22.2 No. 107.1
• Amperage Rating: 10 A
• Power Rating: 240 W
• Input Voltage: 120/230 to 500 VAC
• EANUCC13: 4025515152880
• Case Material: Metallic
• Type: 1/2-Phase Stabilized
• Efficiency: 91%
• Operating Temperature: -25 C ~ 70 C (With Derating)
• Applications: ITE (Commercial)
• Packaging: Bulk
• Features: Adjustable Output
• Number of Outputs: 1
• Voltage - Input: 85 ~ 264 VAC, 176 ~ 550 VAC (2PH)
• Approval Agency: CB, cCSAus, CE, CSA, cULus, FM, UL
• Voltage - Output 1: 24V
• Standard Number: 60950-1
• Current - Output 1: 10 A
• Base Product Number: 6EP13343
