Siemens 6EP13325BA10 Sitop PSU100C 24 V/4 A (DIN Rail Mount) 6EP13321SH22

Product Description

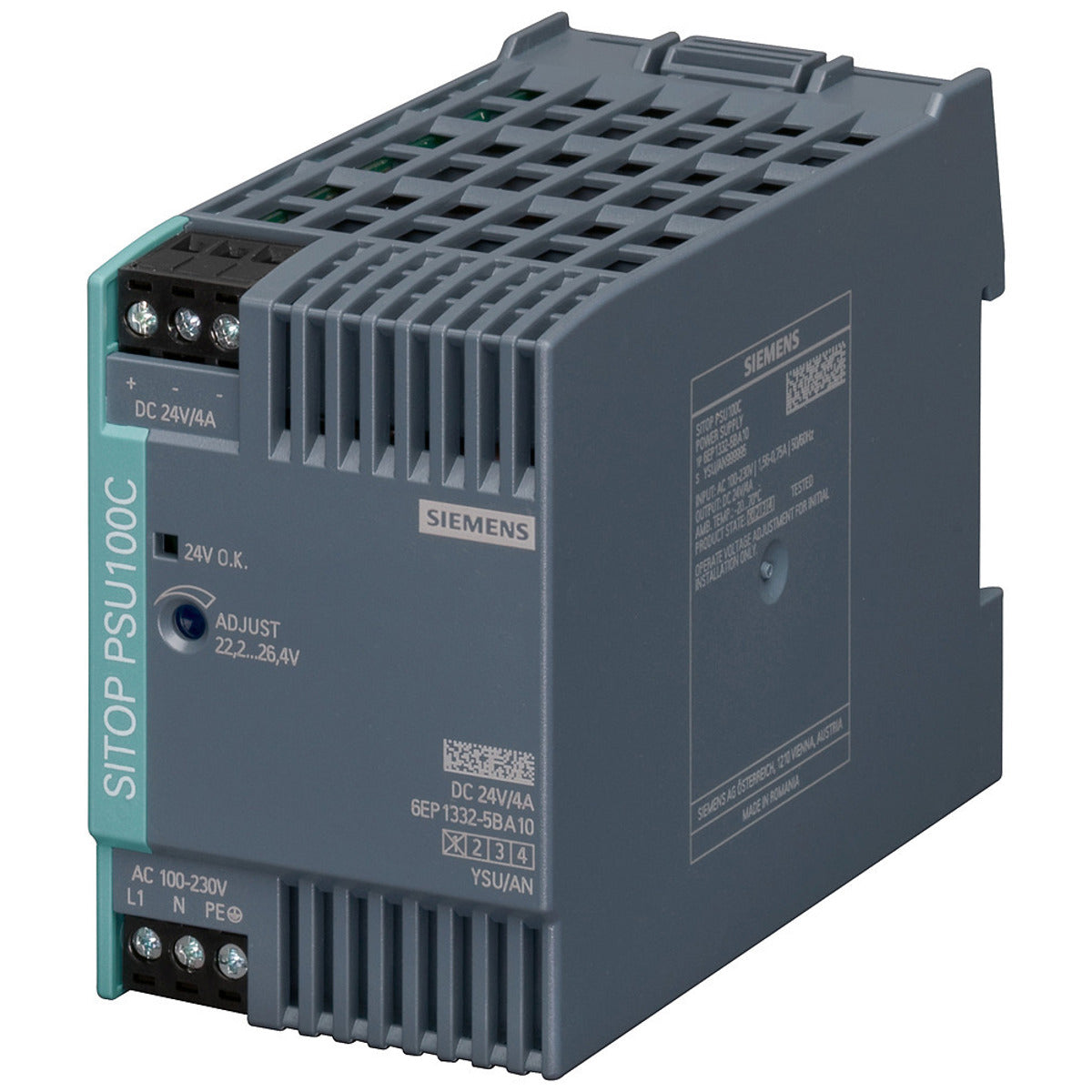

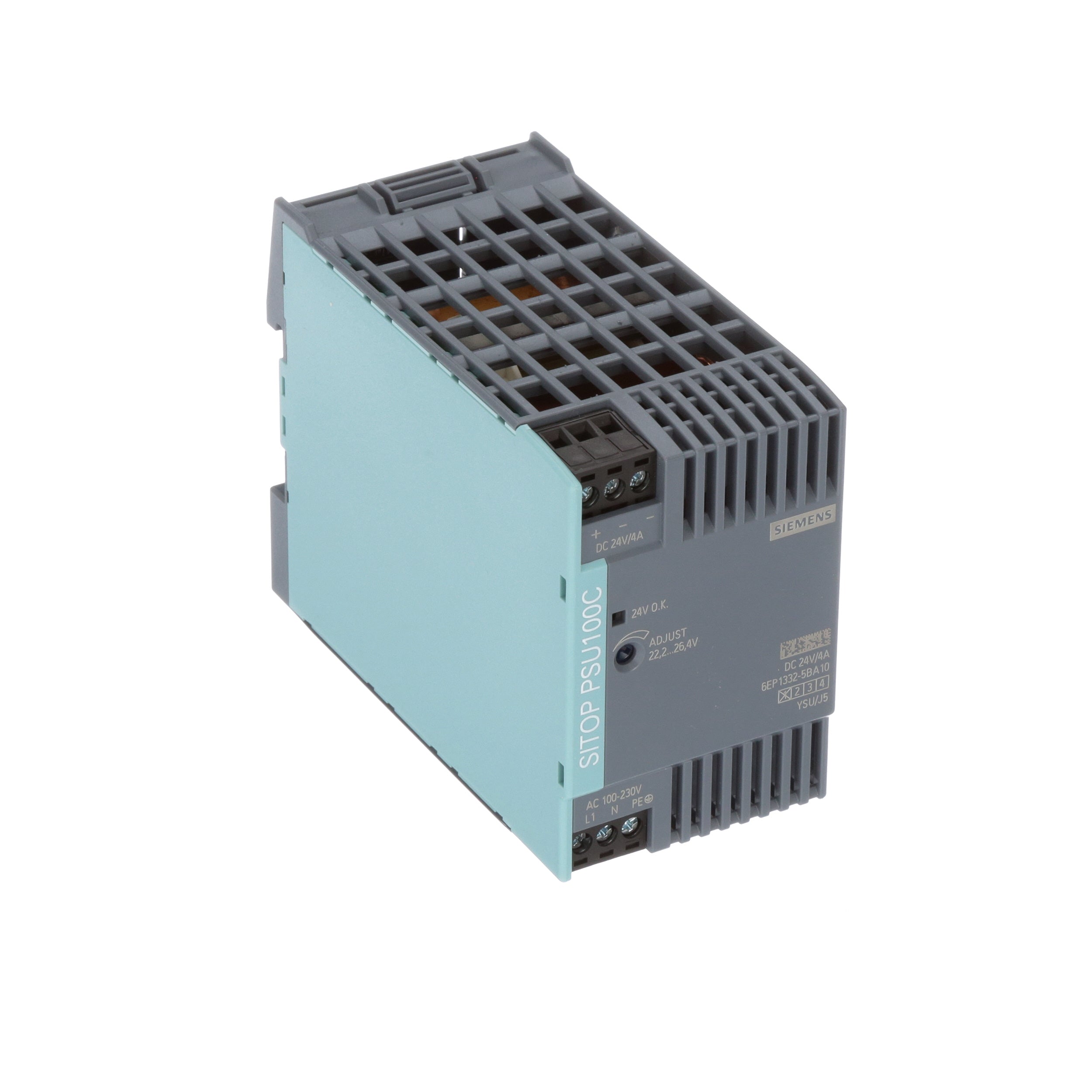

Siemens 6EP13325BA10 is a SITOP PSU100C stabilized industrial power supply that provides a regulated 24 V DC output at up to 4 A. The unit accepts wide-range inputs of AC 120–230 V or DC 110–300 V and uses switching operation for single-output power delivery. It is a compact enclosed device designed for DIN-rail mounting in distributed control and automation applications. Manufactured in Romania.

• Regulated 24 V DC output, 4 A maximum
• Wide input range: AC 120–230 V or DC 110–300 V
• Compact enclosed design for DIN-rail mounting; switching operation

Product Highlights

Stabilized 24 V/4 A output; wide AC/DC input range; compact DIN-rail enclosed design; made in Romania

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6EP13325BA10
• Country of Origin: Romania

Technical Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: 6EP13325BA10
• Brand: SITOP
• Series: SITOP PSU100C
• Type: Industrial AC-DC power supply (switching)
• Number of Outputs: 1
• Output Voltage: 24 V DC
• Output Current: 4 A
• Output Power: 96 W
• Output Voltage Range: 22.2-26.4 V DC
• Output Current Range: 0-4.0 A
• Input Voltage: AC 120-230 V; DC 110-300 V
• Input Voltage Range (alternative reported): 85-264 VAC (reported by additional sources)
• Input VDC Range: 110-300 VDC
• Input Current: 2.25 A (100 VAC) / 1.15 A (230 VAC)
• Frequency: 47-63 Hz
• Operation: Switching
• Mounting Type: DIN Rail Mount
• Enclosure: Enclosed
• Dimensions: 3.15 x 2.07 x 3.94 inches (H x W x D)
• Weight: 0.68 lb (approx.)
• Operating Temperature: -20 to +70 C
• IP Rating: IP20
• Efficiency: Approximately 88%
• Certifications and Approvals: UL, CSA, CE, CB (various regional certifications reported)
• Country of Origin: Romania
• Replaced Catalog Number: 6EP13321SH22
• UPC: 040892789430
• Compliance: RoHS (REACH SVHC present reported)
