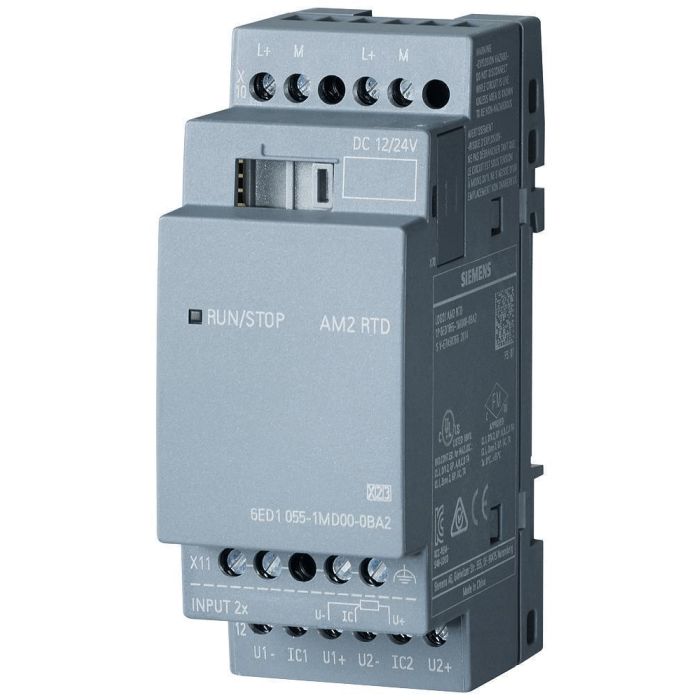

Siemens 6ED10551MD000BA2 logo am2 rtd expansion module

Product Description

The Siemens 6ED10551MD000BA2 is a LOGO AM2 RTD expansion module. This input/output module features 2 inputs and is designed for use with various models including 6ED10521CC010BA8 and 6ED10521FB000BA8. It supports RTD input and is suitable for a range of applications. The module can be mounted on a DIN rail.

• Features RTD Input
• Has 2 inputs
• Compatible with multiple models: 6ED10521CC010BA8, 6ED10521FB000BA8, 6ED10521HB000BA8, 6ED10522CC010BA8, 6ED10522FB000BA8, 6ED10522HB000BA8, 6ED10522MD000BA8, 6ED10580BA080YA1, Mfr. No. 6ED10521MD000BA8

Product Highlights

The Siemens LOGO AM2 RTD expansion module with 2 inputs, is ideal for expanding your programmable logic controller capabilities.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ED10551MD000BA2
• Country of Origin: CN

Technical Specifications

• Mfr. Part #: 6ED10551MD000BA2
• USHTS: 8538908180
• JPHTS: 853890000
• ECCN: EAR99
• Number of Inputs: 2
• Temperature Rating: 0 to 55 deg C
• Terminal Type: Screw
• Type: LOGO
• Voltage Rating: 12/24 V DC
• Power Required: 12/24V DC
• Number of Outputs: 0
• For Use With: 6ED10521CC010BA8, 6ED10521FB000BA8, 6ED10521HB000BA8, 6ED10522CC010BA8, 6ED10522FB000BA8, 6ED10522HB000BA8, 6ED10522MD000BA8, 6ED10580BA080YA1, Mfr. No. 6ED10521MD000BA8
• Features: RTD Input
• Product Type: Input/Output Module
• Number of analog outputs: 0
• Manufacturer product family: LOGO!
• Input, resistance present: No
• analog inputs, configurable: Yes
• description of product type: AM2 RTD
• Resolution of the analog inputs: 10 bit
• Input, voltage present: No
• Number of analog inputs: 2
• Input, thermoelement present: No
• Input, current present: No
• Input, resistance thermometer present: Yes
• Manufacturer product root: Expansion module
• Design of electrical connection: Screw/spring connection
• Input signal can be configured: Yes
• Current Rating: 30 mA
• Wire Connection Type: Screw Clamp
• Input Circuit Voltage - Minimum: 12 V DC
• Mounting Style: DIN Rail
• Input Circuit Voltage - Maximum: 24 V DC
• Standard & Approvals: CE Certified, CSA Certified, UL Listed, FM Approved, IEC 61131, WEEE (2012/19/EU), REACH Article No. 33
• Country of Manufacture: CN
