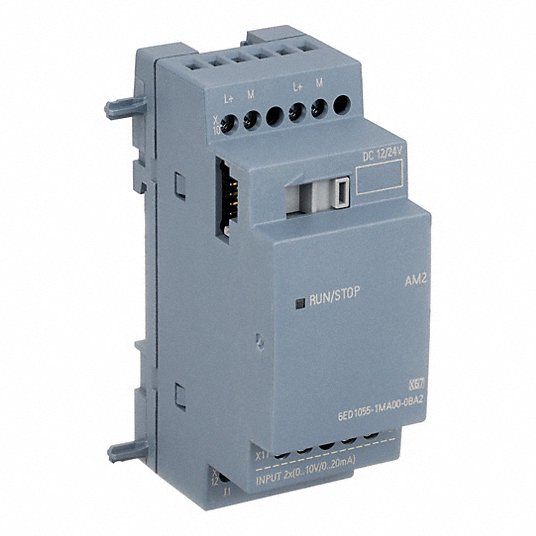

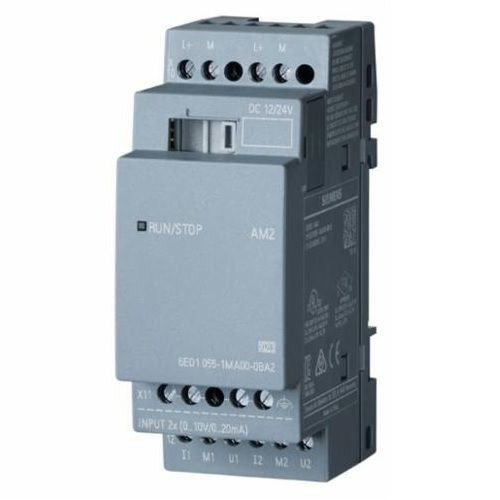

Siemens 6ED10551MA000BA2 LOGO 2 Analog Input Module, 4~20mA or 0-10 VDC

Product Description

The Siemens 6ED10551MA000BA2 LOGO 2 Analog Input Module accepts 4~20mA or 0-10 VDC inputs. This module is part of the LOGO series. It features screw terminals and operates on a 12/24 VDC voltage rating. It is suitable for use in PLC systems.

• Accepts 4~20mA or 0-10 VDC analog inputs
• Features screw terminals for secure connections
• Operates on a 12/24 VDC voltage rating

Product Highlights

The Siemens LOGO 2 analog input module expands PLC capabilities with analog signal processing.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ED10551MA000BA2
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Model: LOGO
• MPN: 6ED10551MA000BA2
• Category: PLC Processors
• Condition: New
• Number of Inputs: 2
• Temperature Rating: 0 to 55 deg C
• Terminal Type: Screw
• Type: LOGO
• Voltage Rating: 12/24 VDC
• Standard & Approvals: CE Certified, CSA Certified, UL Listed, FM Approved, IEC 61131, VDE 0631, WEEE (2012/19/EU), REACH Article No. 33
• Amperage Rating: 0 to 20 mA
• Manufacturer Part Number: 6ED10551MA000BA2
• Manufacturer: SIEMENS
• Series: Logo 8 Series
• Current Rating: 30 mA
• Input Circuit Current - Maximum: 20 mA
• Input Circuit Current - Minimum: 4 mA
• Input Circuit Voltage - Maximum: 24 V DC
• Input Circuit Voltage - Minimum: 12 V DC
• Mounting Style: DIN Rail
• Number and Type of Inputs: (2) Analog
• Number of Outputs: 0
• Power Required: 12/24V DC
• Product Type: Input/Output Module
• Wire Connection Type: Screw Clamp
