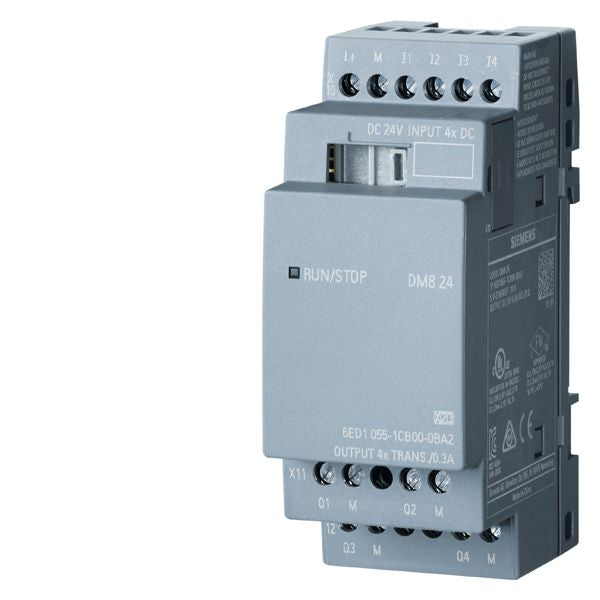

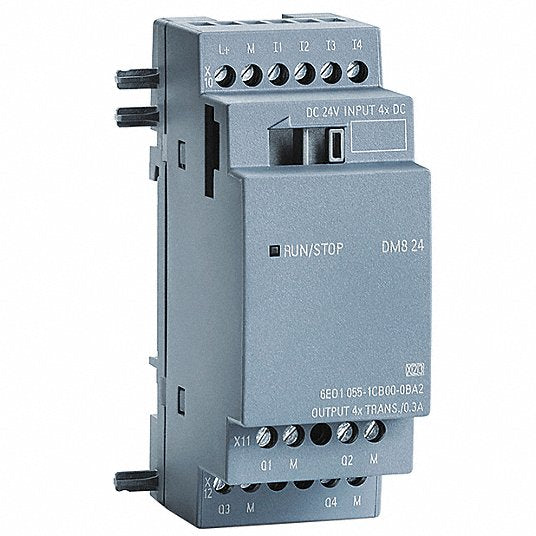

Siemens 6ED10551CB000BA2 I/O Module 4 Digital 4ss 24V

Product Description

The SIEMENS 6ED10551CB000BA2 is an input/output (I/O) module designed for DIN rail mounting and operates on 24VDC. This module is designed for use with LOGO! 8 systems. It features 4 digital inputs and 4 solid-state outputs, making it suitable for various industrial automation and control applications.

• DIN Rail Mounting
• Operating temperature: 0°C ~ 55°C
• 4 Digital Inputs and 4 Solid State Outputs

Product Highlights

The SIEMENS 6ED10551CB000BA2 I/O module is ideal for expanding the capabilities of LOGO! 8 systems with additional digital input and solid-state output channels.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ED10551CB000BA2
• Country of Origin: China

Technical Specifications

• Category: Industrial Automation and Controls
• Controllers: PLC Modules
• Number of Outputs and Type: 4 - Solid State
• Manufacturer: Siemens
• Voltage - Supply: 24VDC
• Series: Logo 8 Series
• Mounting Type: DIN Rail
• Packaging: Bulk
• Termination Style: Screw Terminal
• Part Status: Active
• Operating Temperature: 0°C ~ 55°C
• Type: Input, Output (I/O) Module
• Approval Agency: CE, CSA, FM, UL
• For Use With/Related Products: LOGO! 8
• Base Product Number: 6ED10551
• Number of Inputs and Type: 4 - Digital
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8537.10.9170
• REACH Status: REACH Unaffected
• Alternate Catalog Number: 6ED1055-1CB00-0BA2
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: 6ED10551CB000BA2
• Country of Origin: CN
• Dimensions: 90 mm H x 35.5 mm W x 58 mm D
• EU RoHS Indicator: C
• Gross Volume Per Pack: 22.64
• Gross Volume UOM: in
• Gross Weight Per Pack: 0.2800 lb
• Gross Weight per Pack Metric: 0.13
• Gross Weight UOM Metric: kg
• Harmonization Tariff Schedule Code: 8538908180
• Height: 2.1700 in
• Height [Metric]: 5.5118 cm
• Length: 3.7800 in
• Length [Metric]: 9.6012 cm
• Returnable: Y
• Standards: RoHS Compliant
• Terminal Type: Screw
• UNSPSC: 32151705
• UPC 11: 88762184747
• UPC 12: 887621847470
• Width: 2.7600 in
• Width [Metric]: 7.0104 cm
• Amperage Rating: 0.88/2.1 mA, 0.3 A
• Number of Inputs: 4
• Number of Outputs: 4
• Voltage Rating: 24 VDC
• Overall Width: 1.42 in
• Overall Height: 2.1 in
• Overall Depth: 2.28 in
• Power Required: 24V DC
• Product Type: Input/Output Module
• Wire Connection Type: Screw Clamp
• Input Type: (4) Transitor
• Input Circuit Voltage - Maximum: 24 V
• Compatible with Manufacturer Model Number: 6ED10521CC010BA8, 6ED10521HB000BA8, 6ED10521MD000BA8, 6ED10522CC010BA8, 6ED10522HB000BA8, 6ED10522MD000BA8, 6ED10580BA080YA1
• Output Type: (4) Relay
• min. supply voltage with DC: 20 volt
• Output current: 0 ampere
• Supply voltage type: DC
• Input voltage, type: DC
• Manufacturer product root: Expansion module
• min. permissible voltage at input: 0 volt
• max. supply voltage with DC: 28.8 volt
• Min. delay time with change of signal: 2 millisecond
• Number of inputs, digital: 4
• Manufacturer product family: LOGO!
• Max. perm. voltage: 29 volt
• max. permissible voltage at input: 29 volt
• Output voltage type: DC
• digital outputs, configurable: Yes
• Max. delay time with change of signal: 2 millisecond
• Input current for state 1: 2 milliampere
• Design of digital output: Transistor
• Short circuit protection, outputs present: Yes
• Redundancy-compatible present: No
• description of product type: DM8 24
• min. permissible voltage at output: 0 volt
• Number of outputs, digital: 4
• digital inputs, configurable: Yes
• Design of electrical connection: Screw/spring connection
• Input Circuit Current - Maximum: 2 mA
• Output Circuit Current - Maximum: 0.3 A
• Current Rating: 100 mA
• Compatible with Mfr. Model No.: 6ED10521CC010BA8, 6ED10521HB000BA8, 6ED10521MD000BA8, 6ED10522CC010BA8, 6ED10522HB000BA8, 6ED10522MD000BA8, 6ED10580BA080YA1
• For Use with Mfr Model Number: 6ED10521CC010BA8, 6ED10521HB000BA8, 6ED10521MD000BA8, 6ED10522CC010BA8, 6ED10522HB000BA8, 6ED10522MD000BA8, 6ED10580BA080YA1
• Compatible Manufacturer Part Number: 6ED10521CC010BA8, 6ED10521HB000BA8, 6ED10521MD000BA8, 6ED10522CC010BA8, 6ED10522HB000BA8, 6ED10522MD000BA8, 6ED10580BA080YA1
• For Use With Mfr. Model Number: 6ED10521CC010BA8, 6ED10521HB000BA8, 6ED10521MD000BA8, 6ED10522CC010BA8, 6ED10522HB000BA8, 6ED10522MD000BA8, 6ED10580BA080YA1
• Mounting Style: DIN Rail Mount
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Primary Type: I/O
• Number and Type of Inputs: (4) Transitor
• Number and Type of Outputs: (4) Relay
