Siemens 6AV66470AC113AX0 Simatic Hmi Panel

Product Description

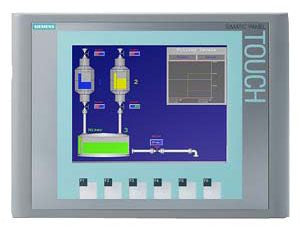

The SIEMENS 6AV66470AC113AX0 is a SIMATIC HMI (Human-Machine Interface) panel designed for industrial automation and process control applications. HMI panels in this series serve as the operator interface between personnel and programmable logic controllers (PLCs) or distributed control systems. The unit provides touchscreen-based interaction for monitoring system status, entering setpoints, and managing alarms. At approximately 2.987 pounds and measuring 10.197 inches long by 7.677 inches wide by 3.504 inches deep, this panel is sized for standard industrial cabinet and panel cutout installations.

This HMI panel is suited for industrial environments where operators need a reliable local interface for machine control, process visualization, or building automation. Typical installations include manufacturing equipment, HVAC control panels, water treatment systems, and other automated process applications. Integration is handled by licensed automation engineers or controls technicians working within a Siemens-based control architecture.

Key Features

• Touchscreen operator interface for real-time process monitoring and control input
• Compact form factor at 10.197 x 7.677 x 3.504 inches for panel-mount installation
• Lightweight construction at 2.987 pounds for straightforward mounting
• Part of the SIMATIC HMI product family for integration with Siemens automation systems
• Designed for industrial-grade environments requiring continuous operator interaction

Compatibility

Designed for use within Siemens SIMATIC automation architectures. No additional specific compatible model numbers or replaced part numbers were provided in the product data. Consult Siemens documentation or a controls supplier to confirm compatibility with a specific PLC platform or software version before ordering.

Installation Notes

Installation should be performed by a qualified controls technician or licensed automation engineer familiar with industrial panel wiring and low-voltage control systems. Disconnect and lock out all power to the control panel before removing or installing the HMI. Follow the applicable National Electrical Code (NEC) requirements for panel wiring and grounding. Refer to the Siemens SIMATIC HMI installation manual for cutout dimensions, sealing requirements, and communication wiring procedures specific to this unit.

Technical Specifications

• Weight: 2.987 pounds
• Length: 10.197 inches
• Width: 7.677 inches
• Height/Depth: 3.504 inches
• UPC: 04089254930

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6AV66470AC113AX0
