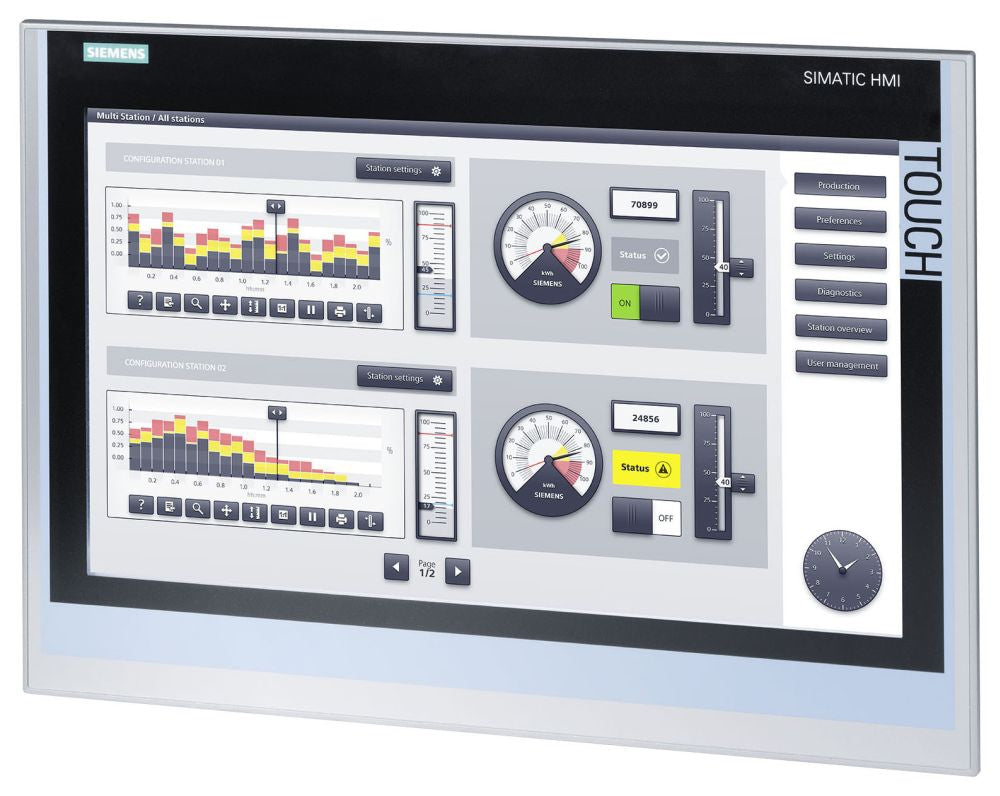

Siemens 6AV21240UC020AX1 Simatic Hmi Panel

Product Description

The SIEMENS 6AV21240UC020AX1 is a SIMATIC HMI (Human-Machine Interface) touchscreen panel designed for industrial control and automation applications. This unit serves as the operator interface between personnel and machine or process control systems, displaying real-time data, alarms, and system status. It is installed in control panels and enclosures across manufacturing, process control, and building automation environments. At 19.092 pounds and packaged at 26.181 inches x 20.472 inches x 8.661 inches, this is a substantial panel-mount unit intended for permanent installation by qualified automation or controls technicians.

The 6AV21240UC020AX1 is suited for industrial automation environments where operators need a reliable, centralized interface to monitor and control equipment. Typical installation scenarios include machine control panels, SCADA integration points, and process line supervisory stations in both light and heavy industrial facilities. This panel is designed for use within Siemens SIMATIC automation ecosystems, making it a natural fit for facilities already running Siemens PLCs or distributed control infrastructure.

Key Features

• SIMATIC HMI platform for real-time operator interaction with industrial control systems
• Touchscreen interface for intuitive navigation of machine states, alarms, and process data
• Panel-mount form factor suited for integration into control enclosures and operator stations
• Substantial build weight of 19.092 pounds reflects robust industrial-grade construction
• Single-unit packaging with outer dimensions of 26.181 inches x 20.472 inches x 8.661 inches

Compatibility

Designed for use within Siemens SIMATIC automation environments. Consult Siemens documentation and TIA Portal configuration guides to confirm compatibility with specific PLC families, firmware versions, and communication protocols before installation.

Installation Notes

Installation should be performed by a licensed automation technician or controls engineer familiar with industrial HMI panel mounting and commissioning procedures. De-energize the control panel and follow all applicable lockout/tagout procedures before mounting or wiring this unit. Ensure the cutout dimensions and enclosure depth match the panel specifications before installation. Communication and I/O wiring must comply with NEC requirements and the facility's applicable electrical codes.

Technical Specifications

• Package Weight: 19.092 pounds
• Package Length: 26.181 inches
• Package Width: 20.472 inches
• Package Height: 8.661 inches
• UPC: 80476652392
• Quantity per Pack: 1

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6AV21240UC020AX1
