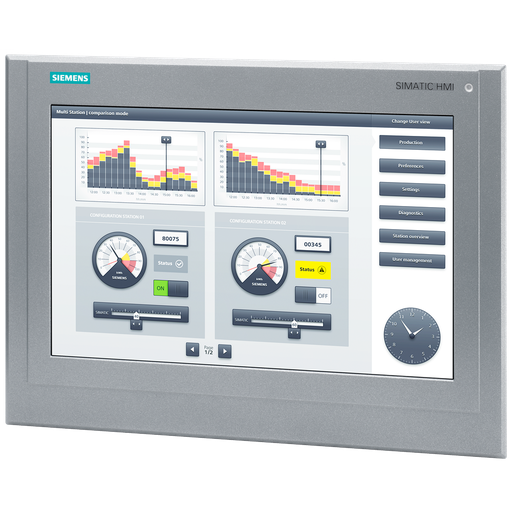

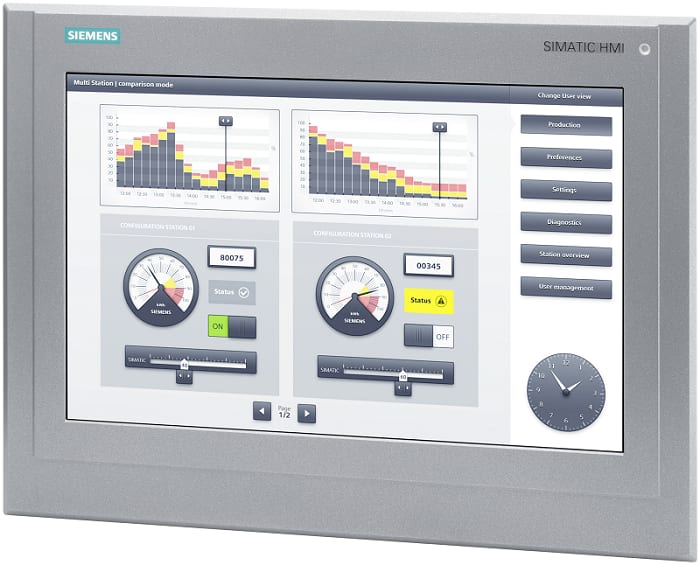

Siemens 6AV21240QC130AX0 Simatic Hmi Tp1500 Comfort Outdoor

Product Description

The SIEMENS 6AV21240QC130AX0 Simatic HMI TP1500 Comfort Outdoor is a comfort panel with touch operation and a 15" widescreen TFT display, showcasing 16 million colors. It features a Profinet interface, MPI/Profibus DP interface, and 12 MB user memory. Configurable from WinCC Comfort V13 SP1, it runs on Windows CE 6.0.

• Comfort Panel
• Touch Operation
• 15 Widescreen-TFT-Display

Product Highlights

The Simatic HMI TP1500 offers expansion and memory card interfaces, with IP66 dust and water resistance, suitable for industrial automation and HMI applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6AV21240QC130AX0
• Country of Origin: Germany

Technical Specifications

• Manufacturer: Siemens
• PLM Short Description: Active Product
• Product Class: 995
• HQ Catalog Number: 6AV2124-0QC13-0AX0
• Country of Manufacture: Germany
• Product Family: SIMATIC
• RoHS: yes
• Standard Pack: 1
• Height (inches): 8
• Weight (lbs): 11.950000
• Width (inches): 20
• Length (Inches): 25
• Brand: Siemens
• Model: 6AV2 124-0QC13-0AX0
• MPN: Does not apply
• UPC: Does not apply
• Condition: New
• Category: Industrial Automation and Controls, Human Machine Interface (HMI), Machine Interface
• Case Color: Gray
• Operating Temperature: -30°C ~ 60°C
• Packaging: Box
• Ingress Protection: IP66 - Dust Tight, Water Resistant
• Part Status: Active
• Voltage - Supply: 24VDC
• Type: Touchscreen
• Features: Expansion Interface, Memory Card Interface
• Size - Display: 15.0"
• For Use With/Related Products: Multiple Manufacturer, Multiple Product
• Display Type: TFT
• Product Type: HMI Panel
• Series: TP1500 Comfort Outdoor
• Display Resolution: 1280 x 800 pixel
• Number of Ports: 2
• Minimum Operating Temperature: -30°C
• Diagonal Display Size: 15.4in
• Backlighting: Yes
• Maximum Operating Temperature: 60°C
• Length: 77mm
• Depth: 310mm
• Standards/Approvals: CE, cULus
• Width: 415mm
• IP Rating: IP20, IP66
• Hazardous Area Certification: ATEX, Zone 2
