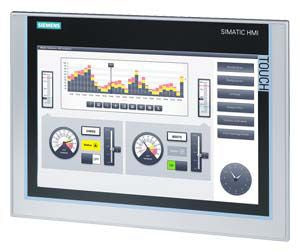

Siemens 6AV21240MC010AX0 TP1200 Comfort Touch Panel

Product Description

The SIEMENS 6AV21240MC010AX0 is the TP1200 Comfort series human-machine interface (HMI) touch panel, designed for industrial process visualization and machine control applications. This widescreen touch display provides operators and automation technicians with a high-resolution interface for monitoring and interacting with programmable logic controllers (PLCs) and industrial automation systems. The unit measures 20.039 inches wide, 14.252 inches tall, and 4.961 inches deep, weighing 7.635 pounds. It is installed by industrial automation technicians and controls engineers in panel enclosures, machine cabinets, and control stations across manufacturing, process control, and building automation environments.

The TP1200 Comfort panel is suited for demanding industrial environments where reliable operator interface performance is required. Typical installations include discrete manufacturing lines, process control panels, and automated machinery where real-time data visualization and operator input are critical. The panel integrates with Siemens SIMATIC PLC platforms and is configured using the TIA Portal engineering software. It is commonly deployed in both new panel builds and retrofit control system upgrades.

Key Features

• 12-inch widescreen touch interface for high-resolution process visualization
• Comfort series HMI with advanced scripting and data logging capabilities
• Panel-mount form factor compatible with standard industrial enclosure cutouts
• Packaged dimensions: 20.039 inches x 14.252 inches x 4.961 inches for enclosure planning
• Shipping weight of 7.635 pounds for logistics and mounting load calculations

Compatibility

Designed as an OEM-style replacement or new-installation HMI panel for industrial automation control systems compatible with the Siemens TP1200 Comfort product family.

Installation Notes

Installation should be performed by a qualified industrial automation technician or controls engineer. De-energize all associated control panels and PLC systems before mounting or wiring the unit. Follow applicable National Electrical Code (NEC) guidelines for control wiring and grounding within panel enclosures. Configure the panel using the appropriate version of Siemens TIA Portal prior to commissioning.

Technical Specifications

• Series: TP1200 Comfort
• Package Dimensions (L x W x H): 14.252 inches x 20.039 inches x 4.961 inches
• Weight: 7.635 pounds
• Quantity per Pack: 1
• UPC: 04089268605

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6AV21240MC010AX0
