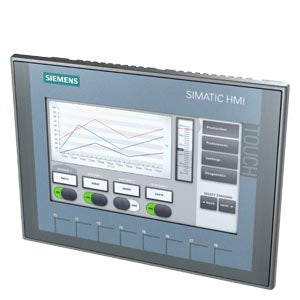

Siemens 6AV21232GB030AX0 Simatic HMI KTP700 Basic Panel 7 inches TFT Display

Product Description

The SIEMENS 6AV21232GB030AX0 Simatic HMI KTP700 Basic Panel features key/touch operation and a 7" TFT display with 65536 colors. Configurable from WinCC Basic V13/ STEP 7 Basic V13, it contains open-source software. These Basic Panels are ideal for simple HMI applications and are installation-compatible with existing touch devices.

• Enhanced productivity and minimization of engineering costs
• Can be deployed in an upright position where installation space is restricted
• Simple and user-friendly representation of process values

Product Highlights

The Simatic HMI KTP700 Basic Panel offers a user-friendly interface with flexible connectivity and a maintenance-free design.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6AV21232GB030AX0
• Country of Origin: China

Technical Specifications

• Product family: Standard devices 2nd Generation
• Product Lifecycle (PLM): PM300:Active Product
• Number of Ports: 3
• Mounting Type: Chassis Mount
• Series: SIMATIC HMI Basic Series
• HMI Type: Touch Screen & Pushbutton HMI
• IP Rating: IP65
• Supply Voltage: 24 VDc
• Technology: TFT LCD Display
• Backlighting: Yes
• Display Colors: 65,536 Color
• Display Size: 7 in
• Display Resolution: 800 x 480 pixels
• Display Type: Color
• Case Color: Black
• Operating Temperature: 0 C ~ 50 C
• Ingress Protection: IP65 - Dust Tight, Water Resistant
• Type: Touchscreen
• Voltage - Supply: 24VDC
• Size - Display: 7.0"
• For Use With/Related Products: Multiple Manufacturer, Multiple Product
