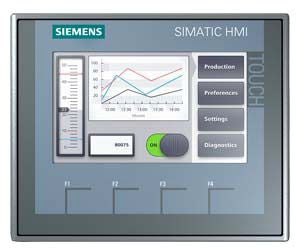

Siemens 6AV21232DB030AX0 Simatic Hmi Panel

Product Description

The SIEMENS 6AV21232DB030AX0 is a SIMATIC HMI (Human-Machine Interface) panel designed for industrial automation and control applications. This unit provides operators with a touchscreen interface for monitoring and interacting with automated systems, PLCs, and process control equipment. Compact and panel-mountable, it is sized at 7.795 inches long by 5.039 inches wide by 2.008 inches deep and weighs 1.012 pounds. Installation and commissioning are typically handled by licensed industrial electricians or automation controls technicians familiar with SIMATIC system integration.

The 6AV21232DB030AX0 is suited for use in light industrial, manufacturing, and process control environments where a compact HMI panel is required. It is designed to integrate with SIMATIC automation architectures for real-time process visualization and operator control. Its compact form factor makes it appropriate for panel-door mounting in control cabinets where space is limited.

Key Features

• Touchscreen HMI panel for operator interaction with automated control systems
• Compact dimensions of 7.795 inches x 5.039 inches x 2.008 inches for space-efficient panel mounting
• Lightweight at 1.012 pounds for straightforward cabinet integration
• Designed for SIMATIC automation system environments
• Sold individually — 1 per pack

Compatibility

Designed as an OEM-style HMI panel for use within SIMATIC industrial automation and process control system architectures.

Installation Notes

Installation should be performed by a qualified industrial electrician or controls technician. De-energize the control panel and follow lockout/tagout procedures before beginning any wiring or mounting work. Consult the applicable SIMATIC HMI installation manual for cutout dimensions, torque guidance, and communication wiring requirements. Applicable work should conform to NEC standards for industrial control panel wiring.

Technical Specifications

• Length: 7.795 inches
• Width: 5.039 inches
• Depth: 2.008 inches
• Weight: 1.012 pounds
• UPC: 88762183028
• Quantity per Pack: 1

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6AV21232DB030AX0
