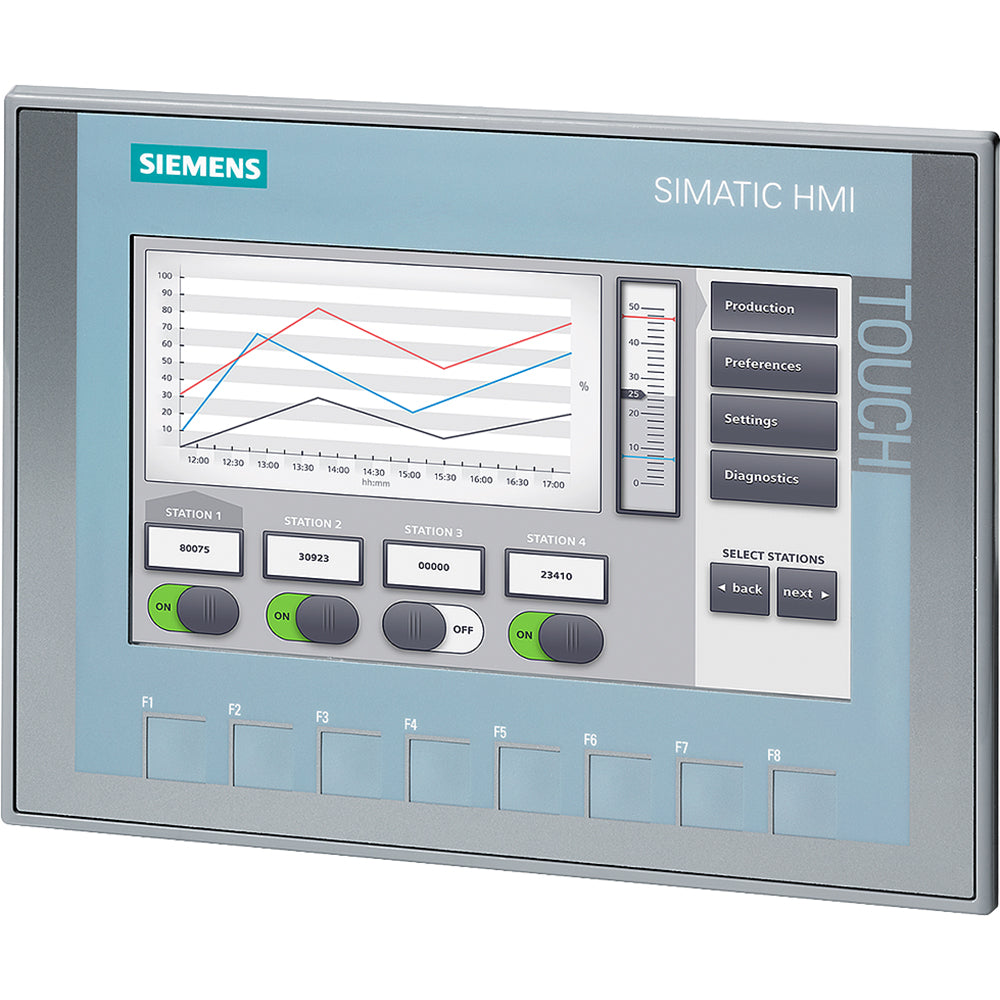

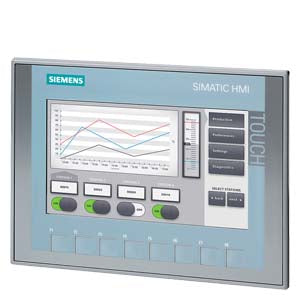

Siemens 6AG11232GB032AX0 Siplus HMI KTP700 Basic (7 inch)

Product Description

Siemens 6AG11232GB032AX0 is a SIPLUS HMI KTP700 Basic human-machine interface featuring a 7-inch TFT display with 65,536 colors and PROFINET connectivity. The panel is conformal-coated for extended temperature operation from -20 to +50 C and is intended for surface mounting. It accepts 19.2 to 28.8 VDC supply and includes an expansion interface with IP65/NEMA 4, 4X ingress protection for industrial environments.

• 7-inch TFT display supporting 65,536 colors with PROFINET interface
• Conformal coating and extended operating temperature range of -20 to +50 C
• 19.2 to 28.8 VDC supply, expansion interface, surface mount with IP65/NEMA 4, 4X

Product Highlights

7-inch TFT HMI with conformal coating, PROFINET, IP65, 19.2–28.8 VDC

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6AG11232GB032AX0

Technical Specifications

• Manufacturer: Siemens
• Manufacturer Part Number: 6AG11232GB032AX0
• Model: SIPLUS HMI KTP700 Basic
• Series: SIMATIC
• Based on: 6AV2123-2GB03-0AX0
• Display Size: 7.0 inch
• Display Type: TFT color
• Display Colors: 65,536 colors
• Interface: PROFINET
• Input Voltage: 19.2 to 28.8 VDC
• Operating Temperature: -20 to +50 C
• Ingress Protection: IP65 (NEMA 4, 4X)
• Mounting Type: Surface mount
• Coating: Conformal coating
• Features: Expansion interface
• Part Status: Active
• RoHS Compliance: RoHS3 compliant
• ECCN: EAR99
• HTSUS: 8537.10.9170
• REACH Status: REACH unaffected
