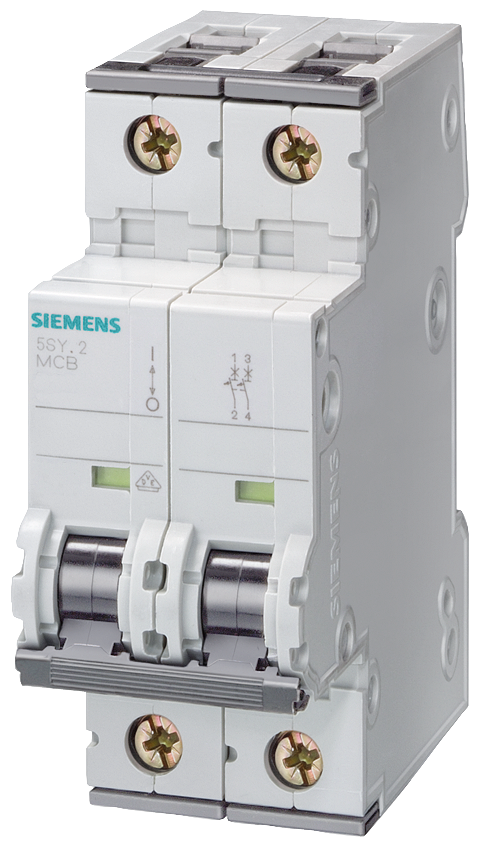

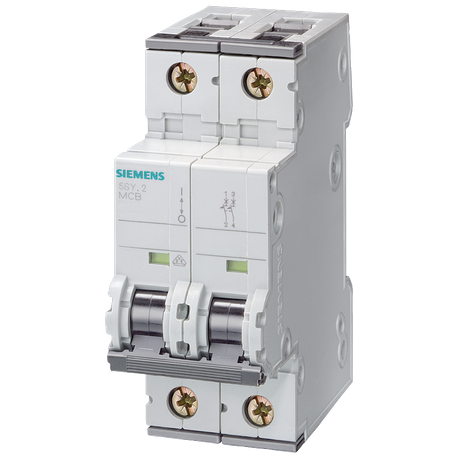

Siemens 5SY6206-7 Miniature Supplementary Protector 480 VAC 6 A 2 Poles

Product Description

The Siemens 5SY6206-7 is a 6 Amp C Curve 2-Pole supplementary protector designed for various electrical applications. This miniature circuit breaker operates at 480 VAC and provides reliable protection against overcurrents. It features a robust construction suitable for installation on DIN Rail, making it easy to integrate into existing electrical panels.

• Compact size with dimensions of ninety millimeters high by thirty-six millimeters wide and seventy millimeters deep.
• Dual pole design with a current rating of six amps.
• CE marked and compliant with multiple standards including UL and IEC.

Product Highlights

Ideal for supplementary protection applications, this device offers excellent current limiting and selectivity characteristics.

Product Information

Standard Information

• Brand: Siemens
• Country of Origin: Germany

Technical Specifications

• Voltage Rating: 480 VAC
• Current Rating: 6 Amp
• Number of Poles: 2
• Mounting Type: DIN Rail
• Interrupt Rating: 6 kA
• Temperature Rating: -25 to 45 degrees Celsius
• Material: Thermoplastic
• Frequency Rating: 50 Hz
• Trip Type: Thermal/Magnetic
• Dimensions: 90 mm H x 36 mm W x 70 mm D
