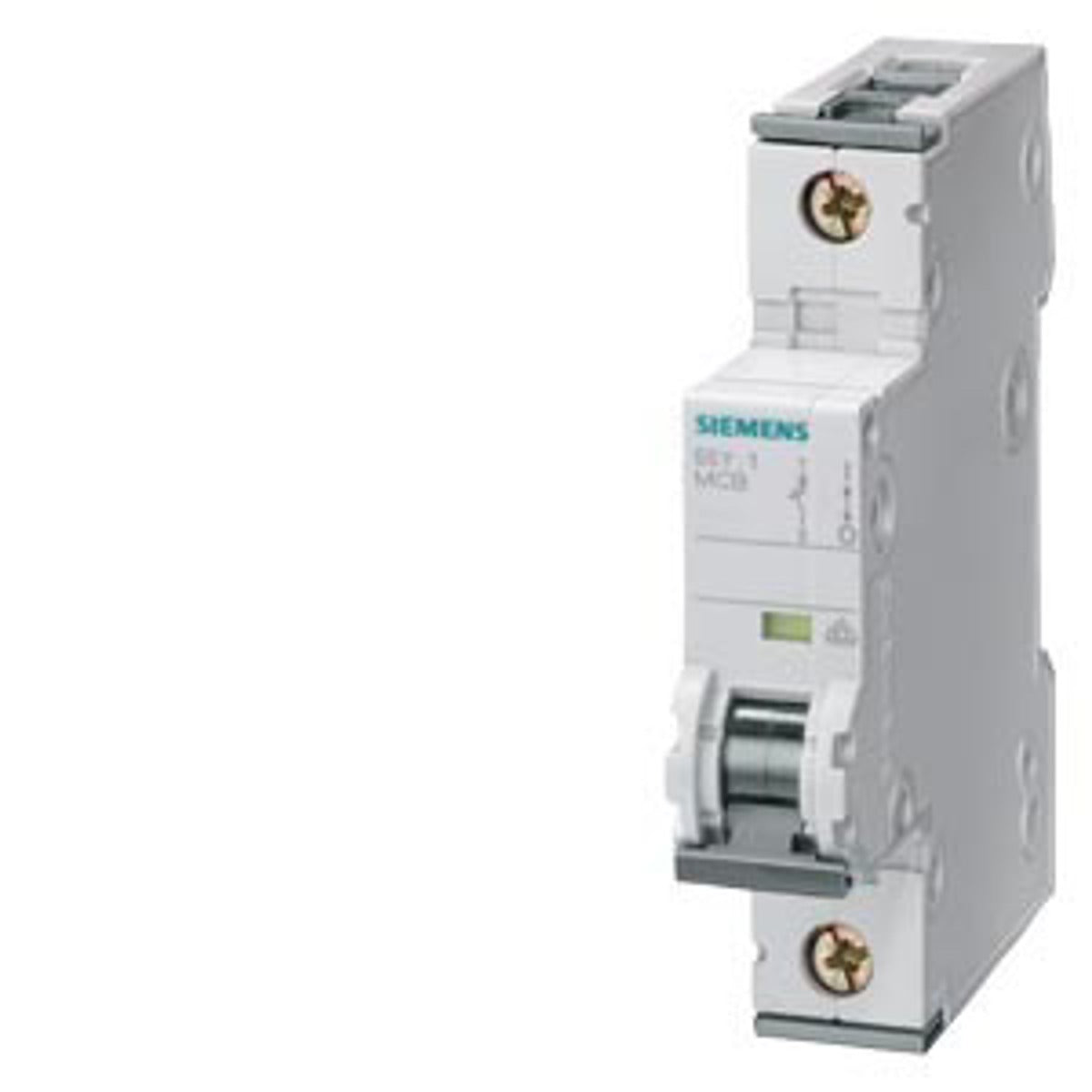

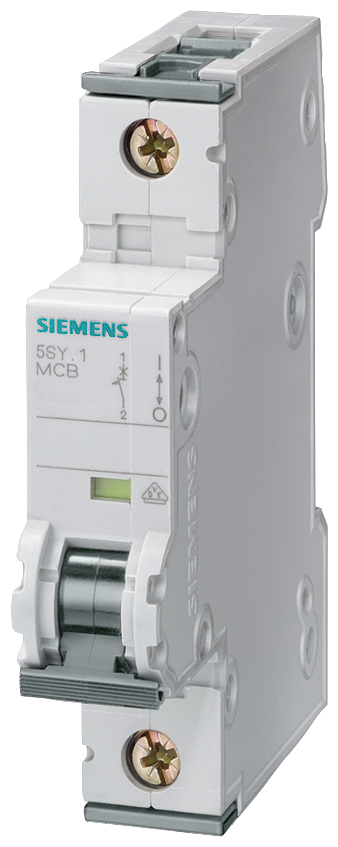

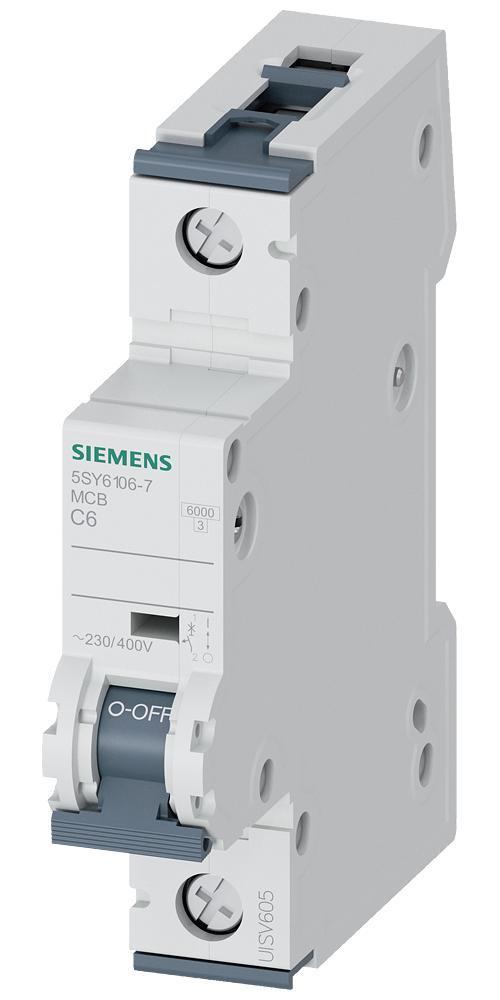

Siemens 5SY6106-7 6 Amp C Curve 1-Pole Supplementary Protector

Product Description

The Siemens 5SY6106-7 is a supplementary protector, 1P, 6A, curve C 400V 6KA, designed as a 1 pole, C, 6A, D=70MM miniature circuit-breaker 2. It is suitable for industrial use and supplementary protection. Type C characteristic is for general device protection in control circuits.

• Identical wire screw connections on line and load side
• Thermoplastic construction
• DIN Rail Mounting

Product Highlights

This Siemens supplementary protector offers reliable circuit protection with a 6 Amp current rating and a 5 kAIC interrupt rating.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY6106-7
• Country of Origin: Germany

Technical Specifications

• Type: 5SY Supplementary Protectors
• Brand: Siemens
• Width: 2.350 in
• Height: 2.95 Inch
• Length: 1 Inch
• Current: 6 AMP
• Voltage: 400 Volt
• Amperage: 6 Amp
• Material: Thermoplastic
• Sub Brand: Controls
• Applications: Supplementary Protectors
• Number of Poles: 1 Pole
• Interrupt Rating: 5 kAIC
• Catalog Number: 5SY6106-7
• Manufacturer: Siemens
• Country of Origin: Germany
• Made in USA: No
• Application: Supplementary Protectors
• Special Features: 5SY Supplementary Protectors
• UPC: 754554849959
• GTIN: 00754554849959
• Item Type: 5SY Supplementary Protectors
• Standard: CSA,E2186,UL
• Part Number #: 5SY6106-7
• Frame: C
• Trip Range: 1.13 to 1.45 A Thermal/5 to 10 A Magnetic
