Siemens 5SY4350-7 SUP PTOR 5SY4 3P 480V

Product Description

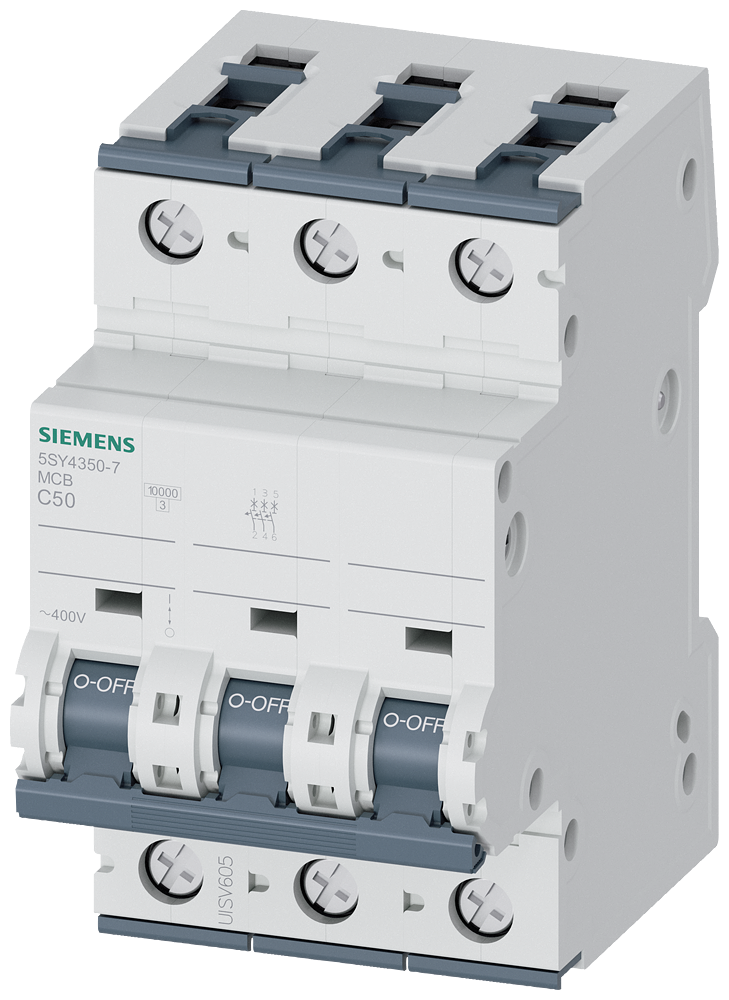

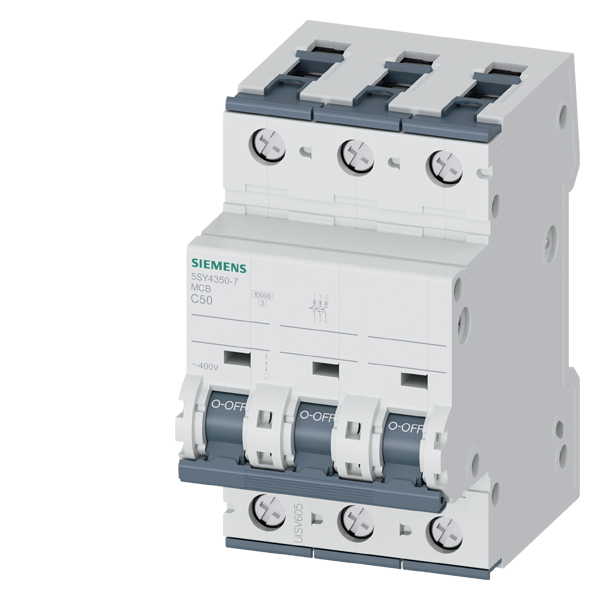

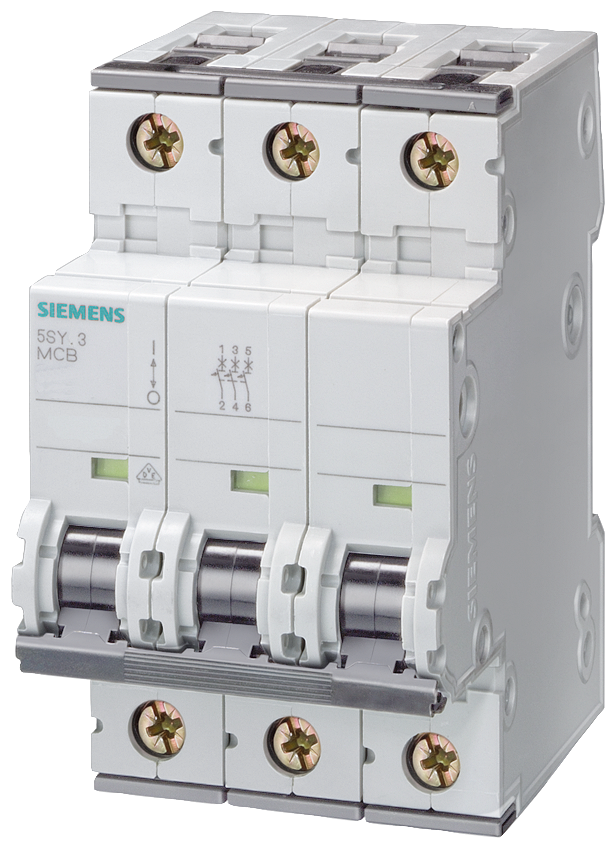

The SIEMENS 5SY4350-7 is a supplementary protector, UL1077 rated, IEC mini circuit breaker. This 3-pole breaker has a 50 Amp current rating and is designed for 480 VAC systems. It features a Trip Characteristic Curve C and measures 54mm in width and 70mm in depth. It is a 5SY4 series circuit breaker.

• Supplementary Protector
• 3 Pole
• 50 Amps
• 480 VAC
• Trip Characteristic Curve C

Product Highlights

Miniature circuit breaker with a 50A current rating, designed for supplementary protection in 480 VAC systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY4350-7
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 5SY4350-7
• Type: Supplementary Protector
• Class: C
• Width: 3.150 in
• Height: 3.8 Inch
• Length: 4-1/2 Inch
• Voltage: 400 Volt
• Amperage: 50 Amp
• Material: Thermoplastic
• Standard: CSA 22.2 NO. 235,CE,IEC,UL 1077,EN 60 898,EN 60 947-2
• Frequency: 50 Hz
• Sub Brand: SENTRON
• Applications: SUPPLEMENTARY PROTECTION
• Mounting Type: DIN RAIL
• TC Connection: Identical wire screw connections on line and load side.
• Connection Type: Identical Wire Screw Connections On Line And Load Side.
• Number of Poles: 3
• Interrupt Rating: 5 kAIC
• Short Circuit Current: 5 kA
• Mounting Style: DIN Rail
• Brand: Siemens
• Number of Throws: 1
• Tripping Characteristics: Type C
• Current Type: AC
• Maximum Amperage: 50 A
• Current Rating: 50A
• MPN: 5SY4350-7
• Features: Trip Indicator
• Country of Origin: Germany
