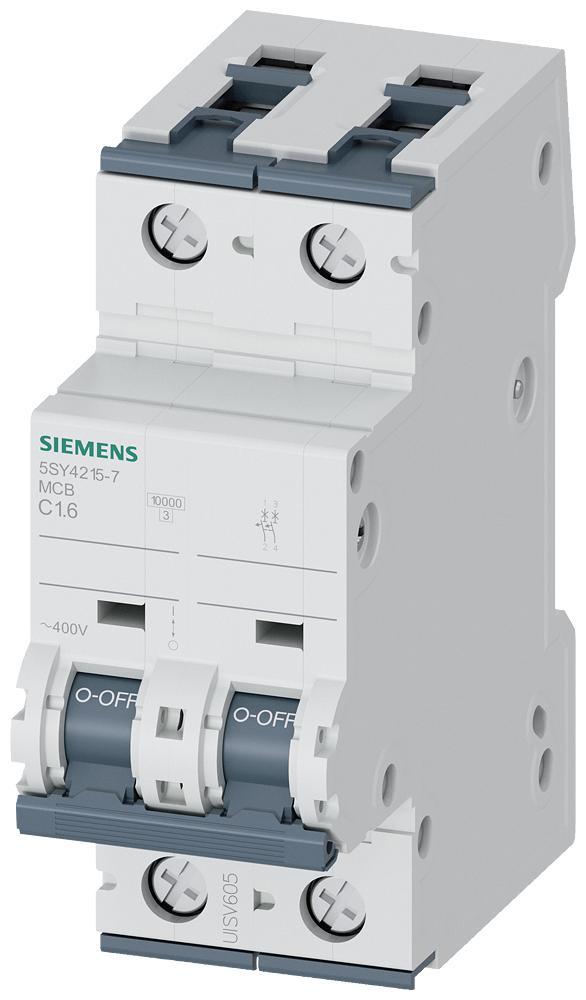

Siemens 5SY4215-7 Circuit Breaker 1.6A 2 Pole

Product Description

The Siemens 5SY4215-7 is a miniature circuit breaker designed for supplementary protection. Rated at 400V and 1.6A, this 2-pole breaker features a C trip characteristic curve and provides a 5 kAIC interrupt rating. It is suitable for DIN rail mounting and offers identical wire screw connections on both the line and load sides.

• UL1077 rated for supplementary protection
• Features a thermal magnetic trip
• Designed for DIN rail mounting

Product Highlights

Miniature circuit breaker with 400V, 1.6A, and 2-pole configuration, ideal for supplementary protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY4215-7
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• MPN: 5SY4215-7
• UPC: 4001869181585
• Category: Business & Industrial Electrical Equipment & Supplies Circuit Breakers & Disconnectors Circuit Breakers
• Amperage: 1.6 Amp
• Applications: SUPPLEMENTARY PROTECTION
• Connection Type: Identical Wire Screw Connections On Line And Load Side.
• Frequency: 50 Hz
• Interrupt Rating: 5 kAIC
• Material: Thermoplastic
• Mounting Type: DIN RAIL
• Number of Poles: 2 Pole
• Short Circuit Current: 5 kA
• Standard: EN 60 898,IEC,CSA 22.2 NO. 235,CE,UL 1077,EN 60 947-2
• Type: Miniature Circuit Breaker
• Voltage: 400 Volt
• Sub Brand: SENTRON
• Class: C
• Frame: 5SY4
• Temperature Rating (Degrees F): -25 to 45 deg C
• Trip Range: 1.808 to 2.32 A
• Connection type: Line/Load Side/Screw
• UNSPSC: 39121601
• AC Voltage Rating: 400V AC
• Circuit Breaker Type: Miniature
• DC Voltage Rating: Not Rated
• Curve Type: C
