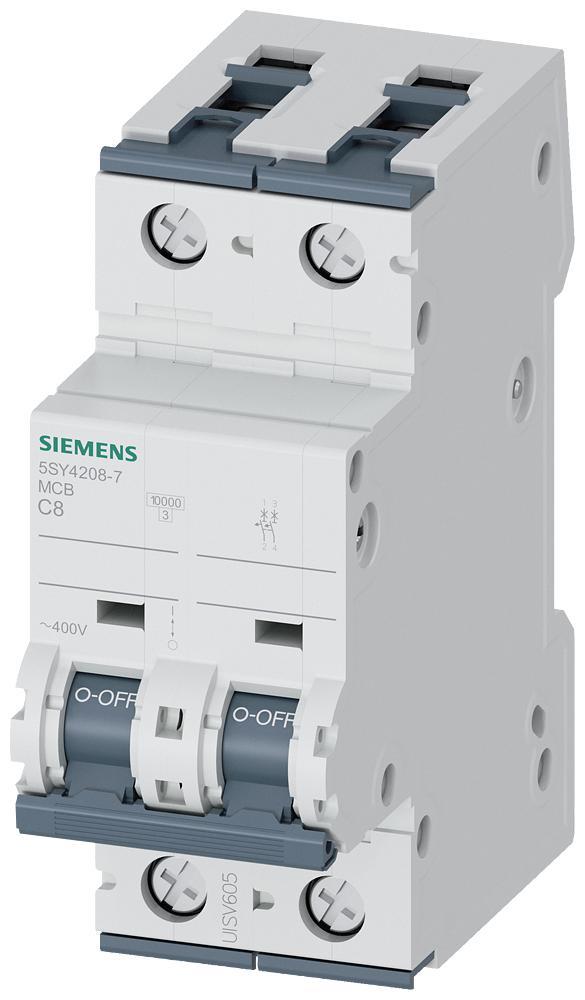

Siemens 5SY4208-7 Sentron Supplementary Protector 480 V AC 8 A

Product Description

The Siemens 5SY4208-7 Sentron Supplementary Protector is a miniature protector operating at 480 V AC and 8 A with a frequency of 50 Hz. It features a 10 kA interrupt capacity and a thermal magnetic trip with a trip range of 9.04 to 11.6 A. Designed with a 5SY4 frame, it supports DIN rail mounting and has an IP20 enclosure.

• Excellent current limiting and selectivity characteristics
• Combined terminals enable a simultaneous connection of busbars and feeder cables
• Identical terminals at both sides for an optional infeed from the top or the bottom

Product Highlights

This supplementary protector offers reliable circuit protection with convenient features like combined terminals and easy DIN rail mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY4208-7

Technical Specifications

• Brand: Siemens
• Part Number #: 5SY4208-7
• SKU #: 2132717
• Frame: 5SY4
• Frequency Rating: 50 Hz
• Temperature Rating (Degrees F): -25 to 45 deg C
• Trip Range: 9.04 to 11.6 A
• Type: Miniature
• Wire Size: 14 to 4 AWG
• Connection type: Line/Load Side/Screw
