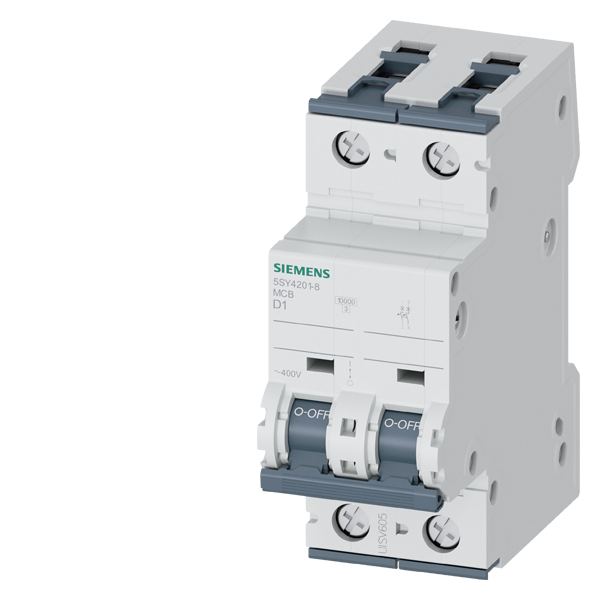

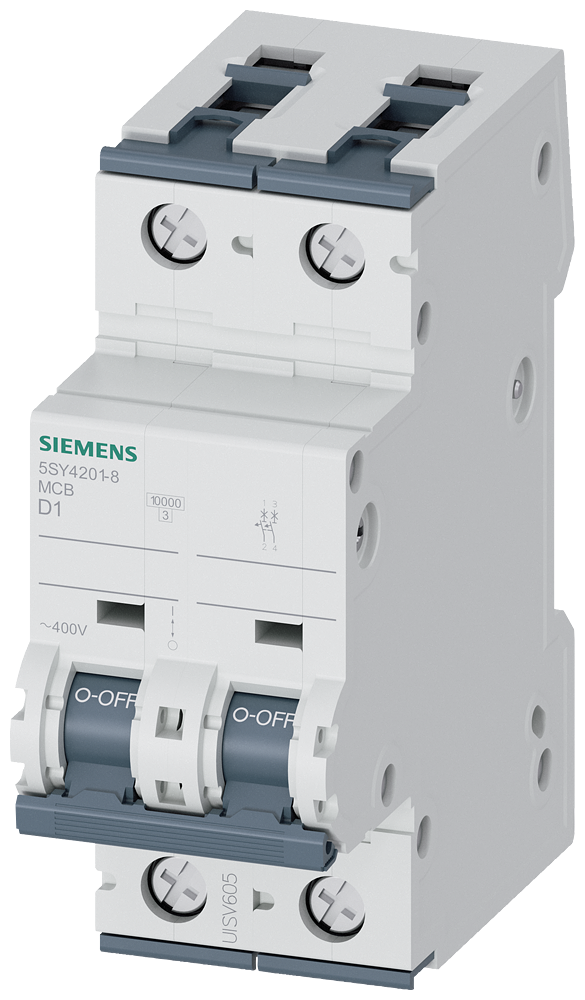

Siemens 5SY4201-8 SUP PTOR 5SY4 2P 480V

Product Description

The SIEMENS 5SY4201-8 is a supplementary protector, UL1077 rated IEC mini circuit breaker. This 2-pole breaker has a 1 Amp rating and operates at 480 VAC, featuring a Trip Characteristic Curve D. It provides supplementary protection in various applications.

• Rated to UL1077 standard
• 2 Pole, 1 Amp, 480 VAC
• Trip Characteristic Curve D

Product Highlights

The SIEMENS 5SY4201-8 supplementary protector is ideal for supplementary protection applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY4201-8
• Country of Origin: Germany

Technical Specifications

• Amperage: 1 Amp
• Applications: SUPPLEMENTARY PROTECTION
• Connection Type: Identical Wire Screw Connections On Line And Load Side.
• Frequency: 50 Hz
• Interrupt Rating: 5 kAIC
• Material: Thermoplastic
• Mounting Type: DIN RAIL
• Number of Poles: 2 Pole
• Short Circuit Current: 5 kA
• Standard: CE,EN 60 947-2,UL 1077,CSA 22.2 NO. 235,EN 60 898,IEC
• TC Connection: Identical wire screw connections on line and load side.
• Type: Miniature Circuit Breaker
• Voltage: 480 Volt
• Brand: Siemens
• Sub Brand: SENTRON
• Class: D
