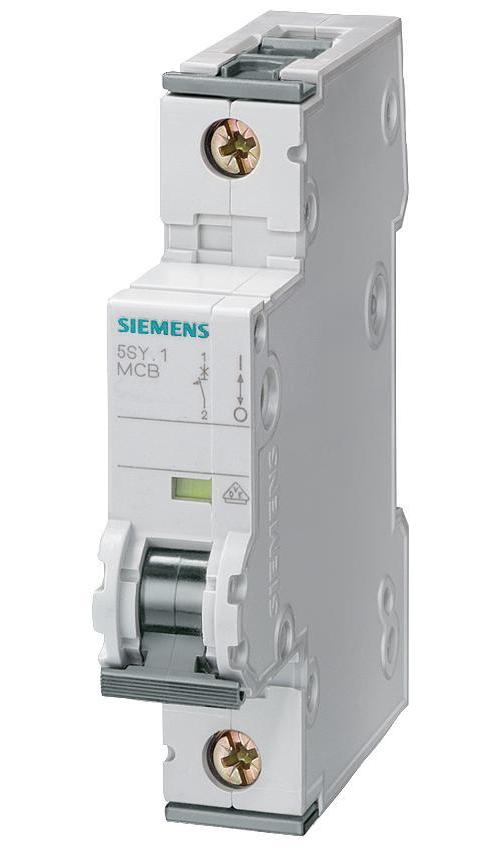

Siemens 5SY4116-8 Circuit Breaker 16A D Curve

Product Description

The SIEMENS 5SY4116-8 is a UL1077 supplementary protector miniature circuit breaker designed to provide additional protection. It trips faster than a standard UL 489 circuit breaker, offering enhanced protection for sensitive devices. It can be used in industrial applications and as a local disconnecting means when a branch circuit protection device is present.

• High rated breaking capacity of up to 14,000 A
• Identical terminals on both sides for optional infeed
• No tools required for mounting or dismounting

Product Highlights

Supplementary protector with high breaking capacity and easy installation, suitable for industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY4116-8

Technical Specifications

• UNSPSC Code: 39120000
• Actuator Type: Toggle
• Brand: SIEMENS
• Current Rating: 16 A
• Manufacturer Part Number: 5SY4116-8
• Mounting Type: DIN Rail Mount
• Number of Poles: 1 Pole
• Series: 5SY Series
• Type: Thermal/Magnetic
• Rated Voltage: 230/400V AC
• Characteristics: D
• Short circuit breaking capacity: 10kA
• IP rating: IP20
• Cross section of connecting wires: 1...25mm 2
• Manufacturer series: 5SY4
• Operating temperature: -40...70°C
