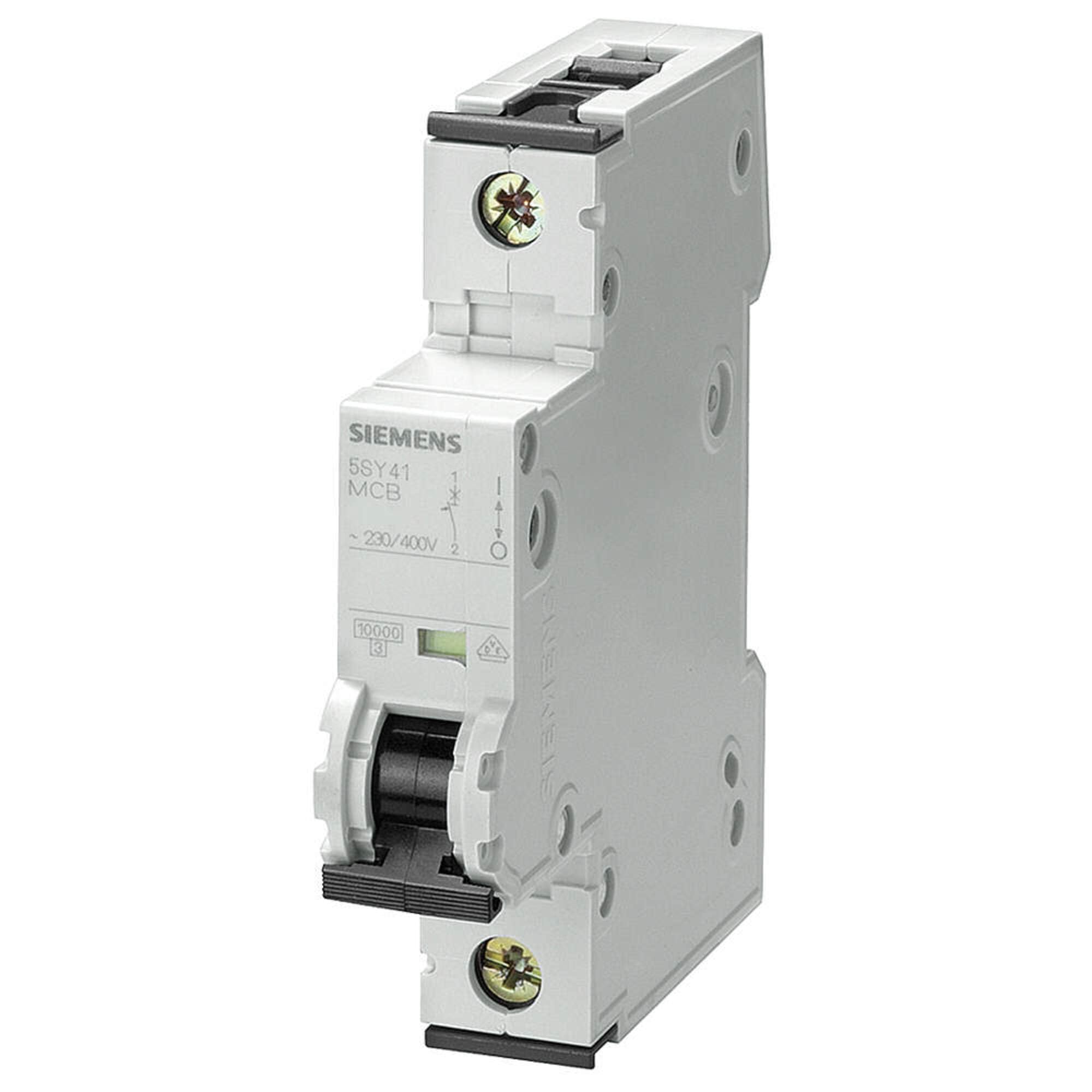

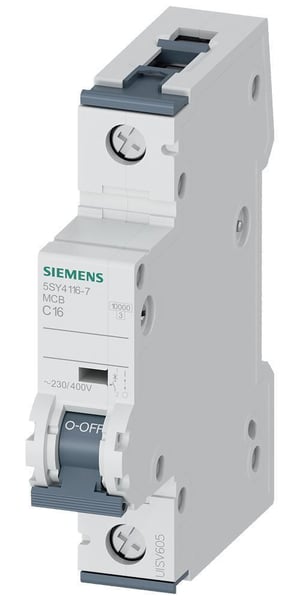

Siemens 5SY4116-7 Miniature Circuit Breaker 16A

Product Description

The SIEMENS 5SY4116-7 is a miniature circuit breaker designed to provide supplementary protection. This 16A circuit breaker is designed to trip faster than a standard UL 489 circuit breaker, offering additional protection for sensitive devices. It features a delayed overload release for low overcurrents and an instantaneous electromagnetic release for high overload and short-circuit currents.

• High rated breaking capacity of up to 14,000 A
• Identical terminals at both sides for an optional infeed from the top or the bottom
• No tool required for mounting or dismounting

Product Highlights

Provides reliable circuit protection with a focus on supplementary protection for sensitive devices.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY4116-7

Technical Specifications

• Brand: SIEMENS
• MPN: 5SY4116-7
• UPC: 754554837918
• Manufacturer: Siemens
• Model / MPN: 5SY4116 7
• Product Type: CIRCUIT_BREAKER
• UNSPSC Code: 39120000
• Actuator Type: Toggle
• Alternate Mfr Part Number: 5SY4116-7
• Approvals: UL 1077
• Current Rating: 16 A
• Mounting Type: DIN Rail Mount
• Number of Poles: 1 Pole
• Series: 5SY Series
• Type: Thermal/Magnetic
• Unit of Measure: EA
• Number Of Poles: 1
• Temperature Rating: -25 to 45 deg C
• Frame: 5SY4
• Connection Type: Line/Load Side/Screw
• Frequency Rating: 50 Hz
• Wire Size: 14 to 4 AWG
• Amperage Rating: 16 A
• Interrupt Rating: 10 kA
• Enclosure Type: IP20
• Trip Type: Thermal Magnetic
• Dimensions: 90 mm H x 18 mm W x 70 mm D
• Voltage Rating: 480 VAC
• Trip Range: 18.08 to 23.2 A
• Condition: New Open box
• Category: Business & Industrial
• Rated voltage: 230/400V AC
• Mounting: for DIN rail mounting
• Characteristics: C
• Short circuit breaking capacity: 10kA
• IP rating: IP20
• Cross section of connecting wires: 1...25mm 2
• Manufacturer series: 5SY4
• Trade name: MCB
• Operating temperature: -40...70°C
• Gross weight: 155.48 g
