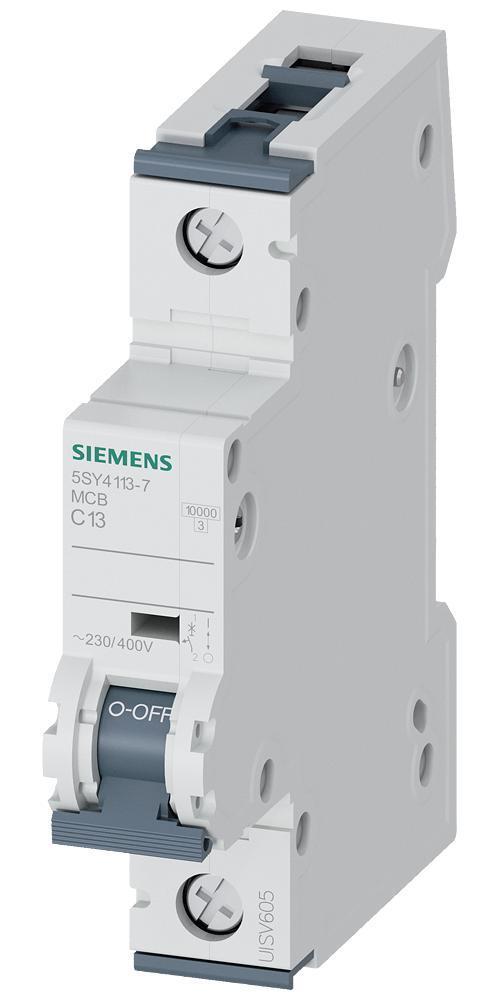

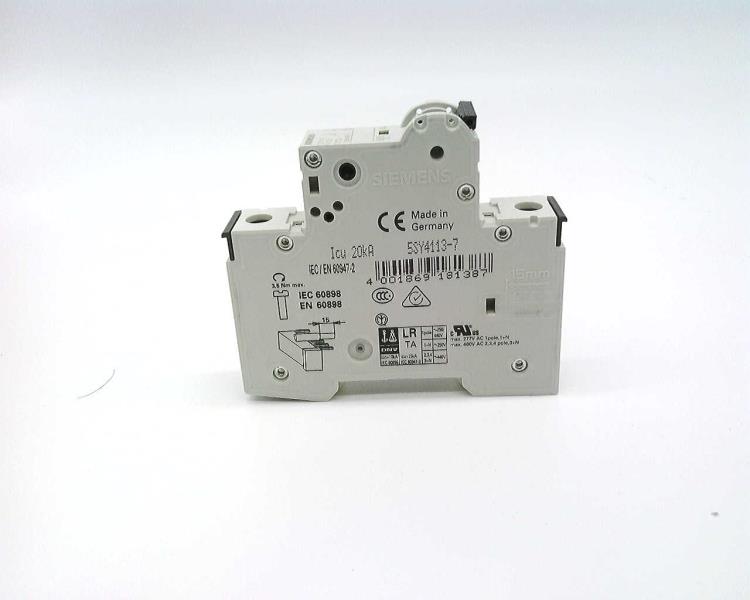

Siemens 5SY4113-7 Miniature Circuit Breaker 13A

Product Description

The SIEMENS 5SY4113-7 Miniature Circuit Breaker, Sentron, is a 1-pole breaker rated at 240V and 13A with a 7.5K C Curve. It provides supplementary protection and features excellent current limiting and selectivity. Ideal for general device protection in control circuits, it supports 35 mm DIN-rail mounting.

• Excellent current limiting and selectivity characteristics
• Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
• Combined terminals enable a simultaneous connection of busbars and feeder cables

Product Highlights

Miniature circuit breaker with excellent current limiting, finger-safe terminals, and combined terminals for easy installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY4113-7

Technical Specifications

• Manufacturer Part Number: 5SY4113-7
• Manufacturer: SIEMENS
• Mounting Type: DIN Rail Mount
• Number of Poles: 1
• Actuator Type: Toggle
• Current Rating: 13 A
• Characteristic: C Curve
• Frame: 5SY4
• Trip Range: 14.69 to 18.85 A
• Connection type: Line/Load Side/Screw
