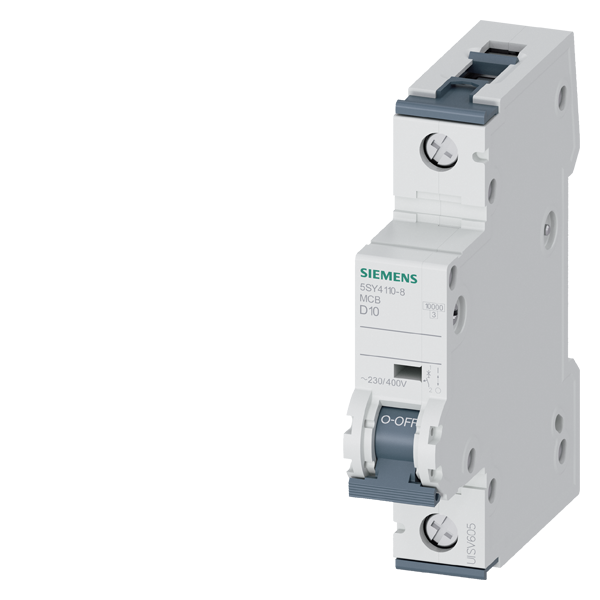

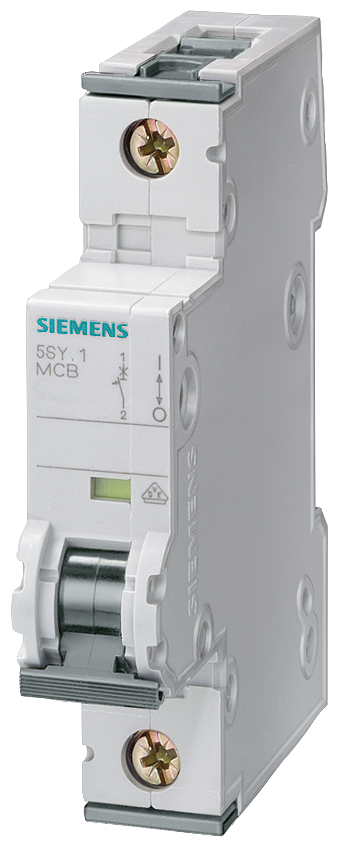

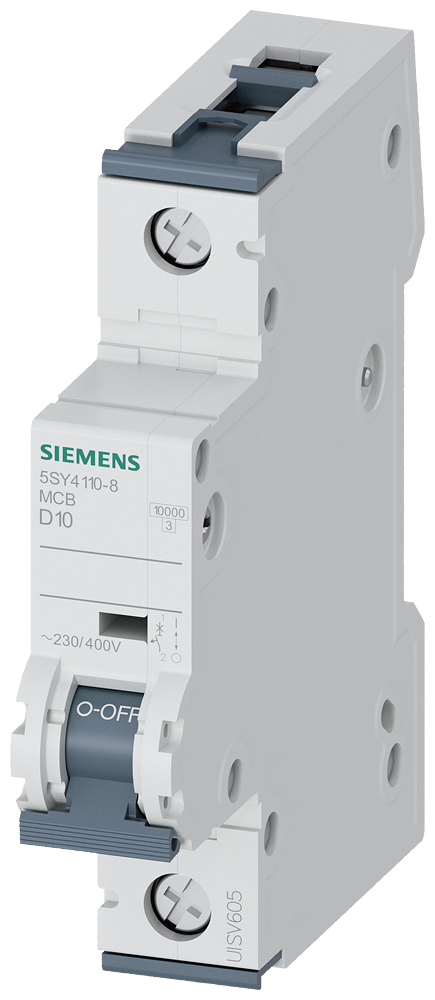

Siemens 5SY4110-8 Circuit Breaker 1-P, 10A, D Curve

Product Description

The SIEMENS 5SY4110-8 is a UL 1077 supplementary protector designed to provide additional protection. These protectors trip faster than standard UL 489 circuit breakers, offering enhanced protection for sensitive devices. It can be used in industrial applications and as a local disconnecting means inside the panel when a branch circuit protection device is already present.

• High rated breaking capacity of up to 14,000 A
• Identical terminals at both sides for an optional infeed from the top or the bottom
• No tool required for mounting or dismounting

Product Highlights

Supplementary protectors are equipped with a delayed overload/time-dependent thermal release for low overcurrent's and with an instantaneous electromagnetic release for high overload and short-circuit currents.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY4110-8
• Country of Origin: Germany

Technical Specifications

• Manufacturer Part Number: 5SY4110-8
• Manufacturer: SIEMENS
• Mounting Type: DIN Rail
• Number of Poles: 1
• Series: 5SY Series
• Voltage Rating: 230 V, 400 V
• Overload: Thermal/Magnetic
• Actuator Type: Toggle
• Type: Thermal/Magnetic
• Approvals: UL1077 Recognized
• Standards: UL1077 Recognized
• Current Rating: 10 A
• Characteristic: D curve
• Voltage Rating - AC: 400 V
• Voltage Rating - DC: 72 V
• Approval Agency: CB, CCC, CSA, IMQ, UR, VDE
