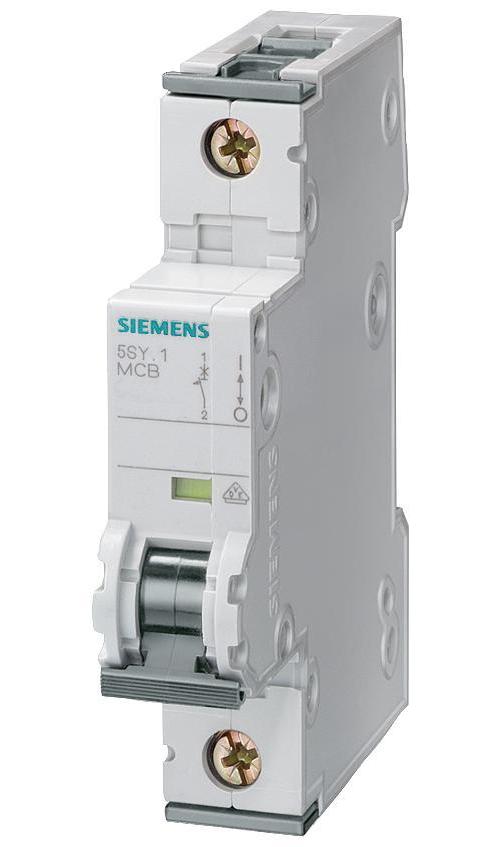

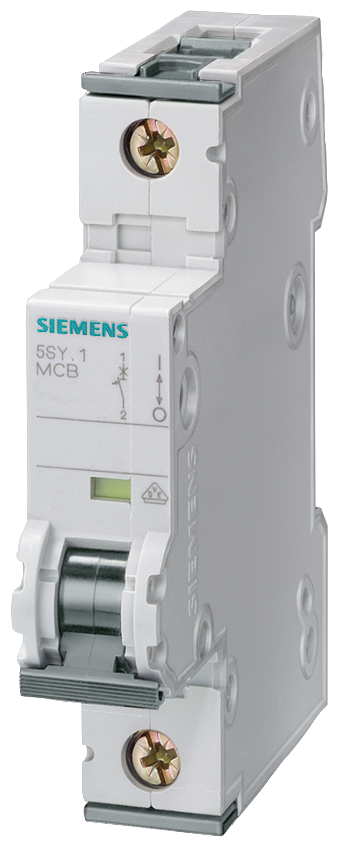

Siemens 5SY4104-8 MCB, 1P, 4 Amp

Product Description

The Siemens 5SY4104-8 is a supplementary protector, UL1077 rated, and an IEC mini circuit breaker. This 1-pole breaker has a 4 Amp current rating and operates at 277 VAC. It features a Trip Characteristic Curve D, with dimensions of 18mm width and 70mm depth. It is UL File E116386 in Vol. 1 Sec. 2.

• Supplementary Protector
• UL1077 Rated
• IEC Mini Circuit Breaker

Product Highlights

Miniature circuit breaker with a 4 amp current rating, 277 VAC, and a Trip Characteristic Curve D.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY4104-8
• Country of Origin: Germany

Technical Specifications

• Type: Supplementary Protector
• Brand: Siemens
• Width: 0.827 in
• Height: 3.27 Inch
• Length: 3.661 Inch
• Current: 4 Amp
• Voltage: 400 Volt
• Amperage: 4 A
• Material: Thermoplastic
• Number of Poles: 1
• Manufacturer: SIEMENS
• Rated Voltage: 230/400V AC
• Mounting: for DIN rail mounting
• Characteristics: D
• Short Circuit Breaking Capacity: 10kA
• IP Rating: IP20
• Cross Section of Connecting Wires: 1...25mm2
• Manufacturer Series: 5SY4
• Trade Name: MCB
• Operating Temperature: -40...70°C
• Frequency Rating: 50 Hz
• Interrupt Rating: 5 kA
• Temperature Rating (Degrees F): -25 to 45 deg C
• Wire Size: 14 to 4 AWG
• UNSPSC: 39121601
