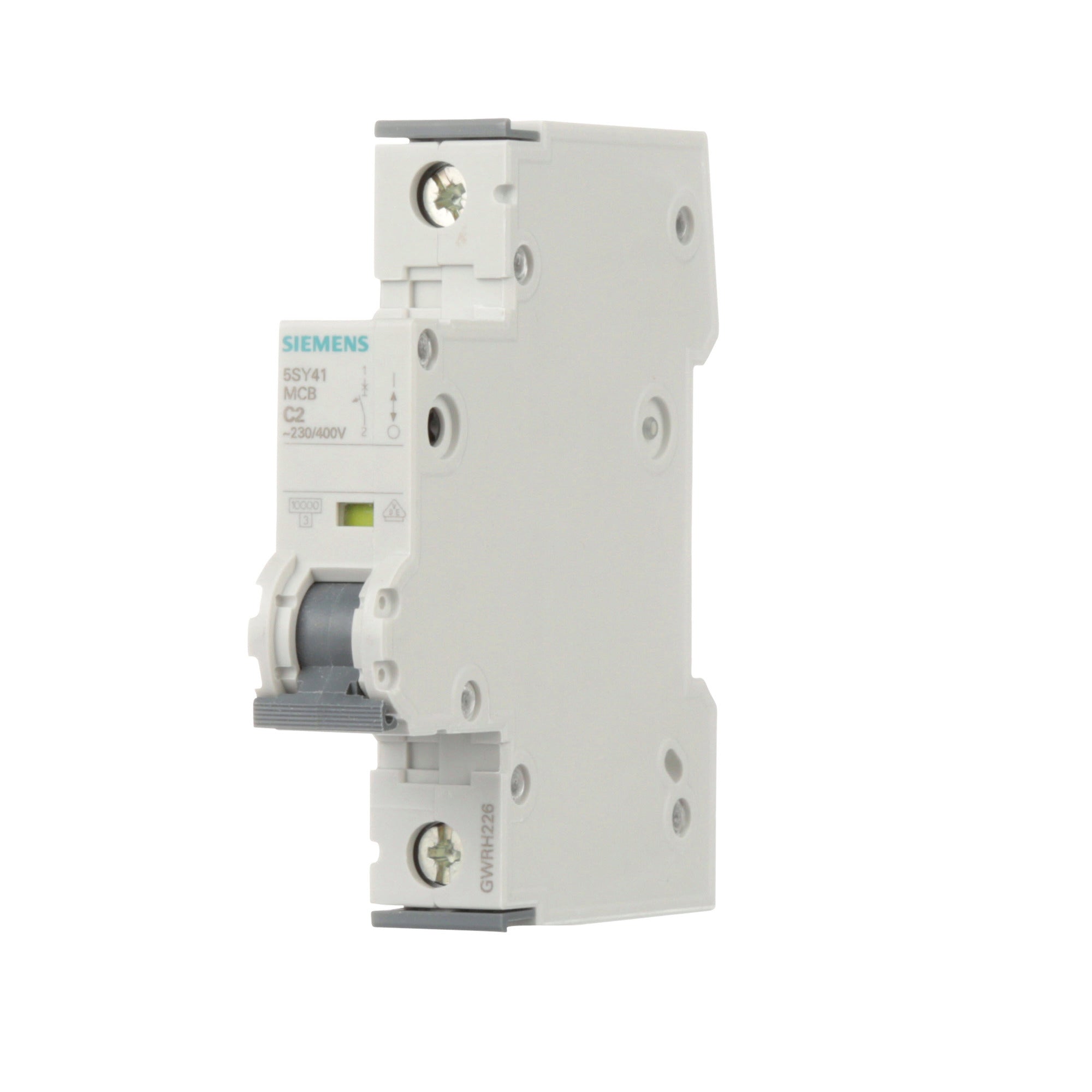

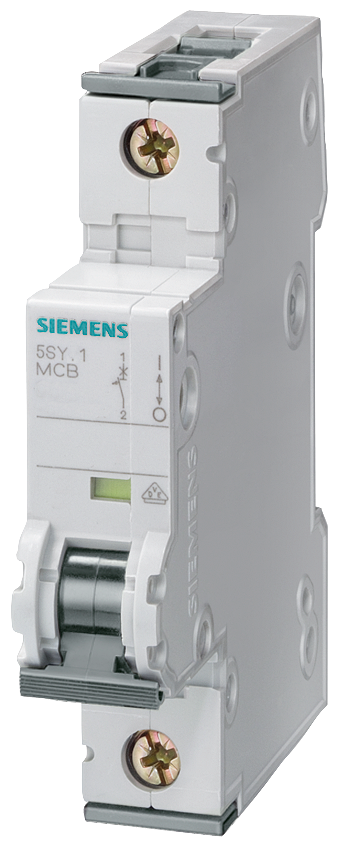

Siemens 5SY4102-7 2 Amp C Curve 1-Pole Supplementary Protector

Product Description

The Siemens 5SY4102-7 is a 2 amp C curve, 1-pole supplementary protector. This device is UL1077 rated and designed for general device protection in control circuits. It has a trip characteristic curve C and a width of eighteen millimeters. The product is suitable for use in applications requiring supplementary protection with a voltage rating of two hundred seventy-seven volts AC.

• 1 Pole with 2 Amps rating
• Trip characteristic curve C
• UL1077 certified for safety

Product Highlights

This supplementary protector is ideal for use in control circuits and ensures reliable operation through its thermal and magnetic trip mechanisms.

Product Information

Standard Information

• Brand: Siemens
• MPN: 5SY4102-7

Technical Specifications

• Catalog Number: 5SY4102-7
• Manufacturer: Siemens
• Trip Characteristic: C
• Voltage Rating: 277 VAC
• Amperage Rating: 2 AMP
• Number of Poles: 1 Pole
• Width: 18 mm
• Depth: 70 mm
• Height: 76 mm
• Weight: 0.350 lb
• Standard: UL 1077, CE, IEC
• Country of Origin: Germany
• Application: Supplementary Protection
