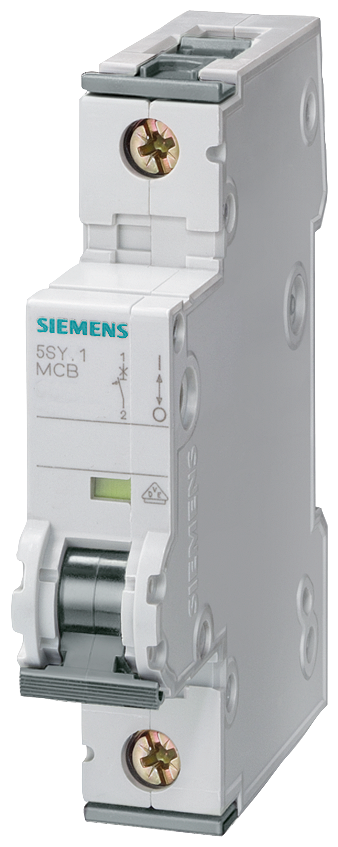

Siemens 5SY4101-8 Supplementary Protector 480 VAC 1 A

Product Description

The Siemens 5SY4101-8 Supplementary Protector ensures reliable circuit protection. Designed for industrial applications, this 480 VAC device features a 1 A amperage rating and thermal/magnetic trip for enhanced safety. It has a 5 kA interrupt rating and is suitable for DIN rail mounting. Its compact dimensions seamlessly fit your needs.

• Type D characteristic is designed for high inrush loads
• Identical wire screw connections on line and load side
• Quick-assembly system mounting

Product Highlights

Supplementary protector with thermal/magnetic trip, designed for industrial applications and DIN rail mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY4101-8
• Country of Origin: DE

Technical Specifications

• Brand: Siemens
• Frame: D
• UNSPSC: 39121601
• Trip Type: Thermal/Magnetic
• Wire Size: 14 to 4 AWG
• Application: Industrial Applications
• Mounting Type: DIN Rail
• Enclosure Type: IP20
• Voltage Rating: 480 VAC
• Connection Type: Screw
• Frequency Rating: 50/60 Hz
• Temperature Rating: -25 to 55 °C
• Amperage Rating: 1 A
• Poles: 1
• Interrupt Rating: 5 kA
• Standard: UL 1077 Rated
