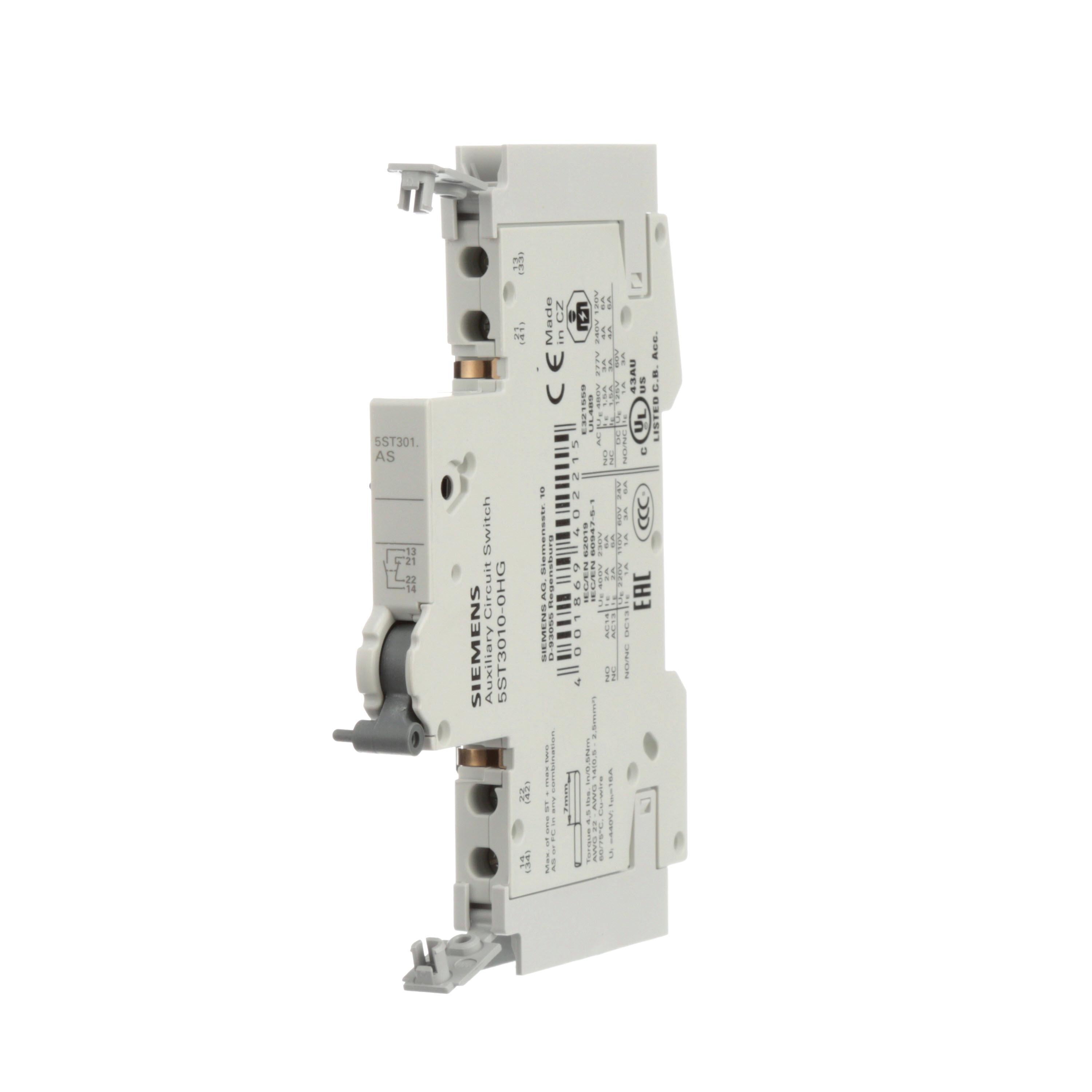

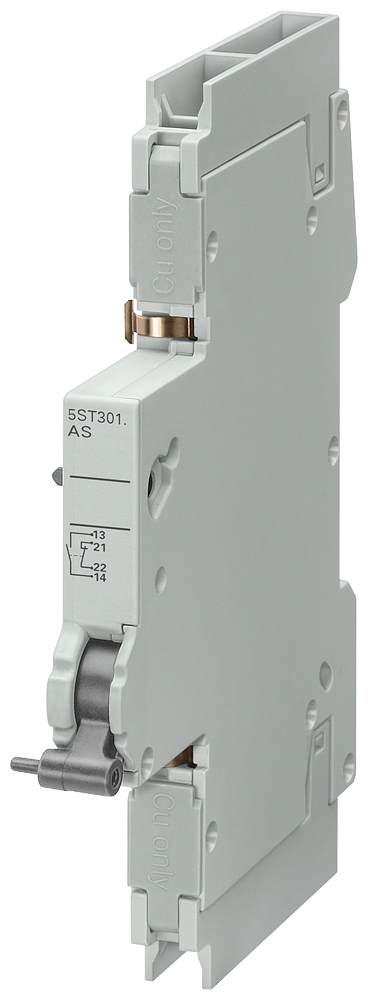

Siemens 5ST3010-0HG Auxiliary Switch 1No + 1Nc UL489

Product Description

The SIEMENS 5ST3010-0HG auxiliary switch features 1NO+1NC contact configuration and is designed for miniature circuit breakers according to UL 489. It signals the contact position of the miniature circuit breaker, whether tripped manually or due to a fault. Suitable for use with 5SJ4 miniature circuit breakers.

• For use with miniature circuit breakers
• Contact Configuration: 1NO+1NC
• Suitable for supplementary protection accessories

Product Highlights

The SIEMENS 5ST3010-0HG auxiliary switch signals contact position and is suitable for supplementary protection accessories.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5ST3010-0HG
• Country of Origin: IN

Technical Specifications

• Manufacturer Part Number: 5ST3010-0HG
• Manufacturer: SIEMENS
• UNSPSC Code: 39120000
• Series: 5ST Series
• UPC Code: 754554968858
• Primary Type: External Accessories
• Alternate Mfr Part Number: 5ST3010-0HG
• Type: Terminal Covers/Seals
• Standards: UL 489
• For Use With: Miniature circuit breakers
• Application: SUPPLEMENTARY PROTECTION ACCESSORIES
• Catalog Number: 5ST3010-0HG
• Contact Configuration: 1NO-1NC
• Country of Origin: IN
• Dimensions: 110 mm H x 9 mm W x 70 mm D
• Harmonization Tariff Schedule Code: 8536509065
• Height: 3.2000 in
• Length: 3.6000 in
• Material: N/A
• Sub Brand: SENTRON
• UNSPSC: 39121601
• UPC 11: 75455496885
• UPC 12: 754554968858
• Width: 0.7000 in
• Brand: Siemens
• Voltage Rating: 400/480 VAC
• Connection Type: Terminal
• Suitable For Use With: 5SJ4 Miniature Circuit Breaker
• Current Type: AC/DC
• Control Style: Switch
• Item Height: 4.3 in
• Number in Pack: 1
• Model: 5ST30100HG
• MPN: 5ST30100HG
• Item Width: 0.35 in
• Fuse Type: Switch
