Product Description

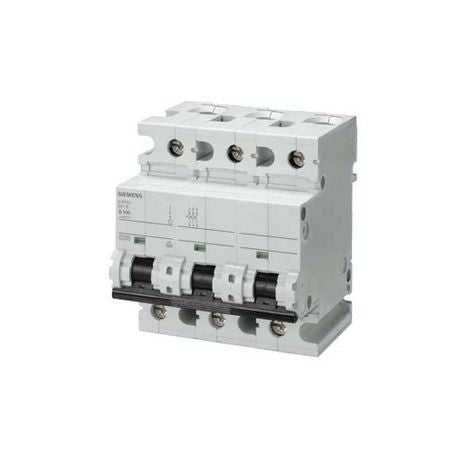

Siemens 5SP4391-6 is a high current miniature circuit breaker designed for power distribution systems. This device is approved for use in various installations, capable of handling applications up to four hundred volts AC and one hundred amps. With a ten kiloampere interrupt rating, it ensures safety and reliability in electrical systems.
- Rated voltage of four hundred volts AC
- Three pole design, suitable for thermal and magnetic trip mechanisms
- Compatible with auxiliary switches and remote controlled mechanisms
Product Highlights
This circuit breaker provides effective protection for electrical systems in buildings and industrial applications. Its design includes features for easy installation and adaptability to different wiring configurations.
Product Information
Standard Information
-
Brand: Siemens
-
Part Number: 5SP4391-6
Technical Specifications
-
Voltage Rating: 400 VAC
-
Wire Size: 14 to 2 AWG
-
Frequency Rating: 50 Hz
-
Amperage Rating: 100 A
-
Dimensions: 90 mm H x 81 mm W x 76 mm D
-
Connection Type: Screw
-
Series: 5SP
-
Number Of Poles: 3
-
Type: High Current
-
Temperature Rating: -25 to 55 deg C
-
Mounting Type: DIN Rail
-
Interrupt Rating: 10 kA
-
Enclosure Type: IP20/IP40
-
Trip Range: 1.13 to 1.45 A
-
Trip Type: Thermal/Magnetic
-
UPC: 754554921778
-
GTIN: 00754554921778
-
UNSPSC: 39121601
