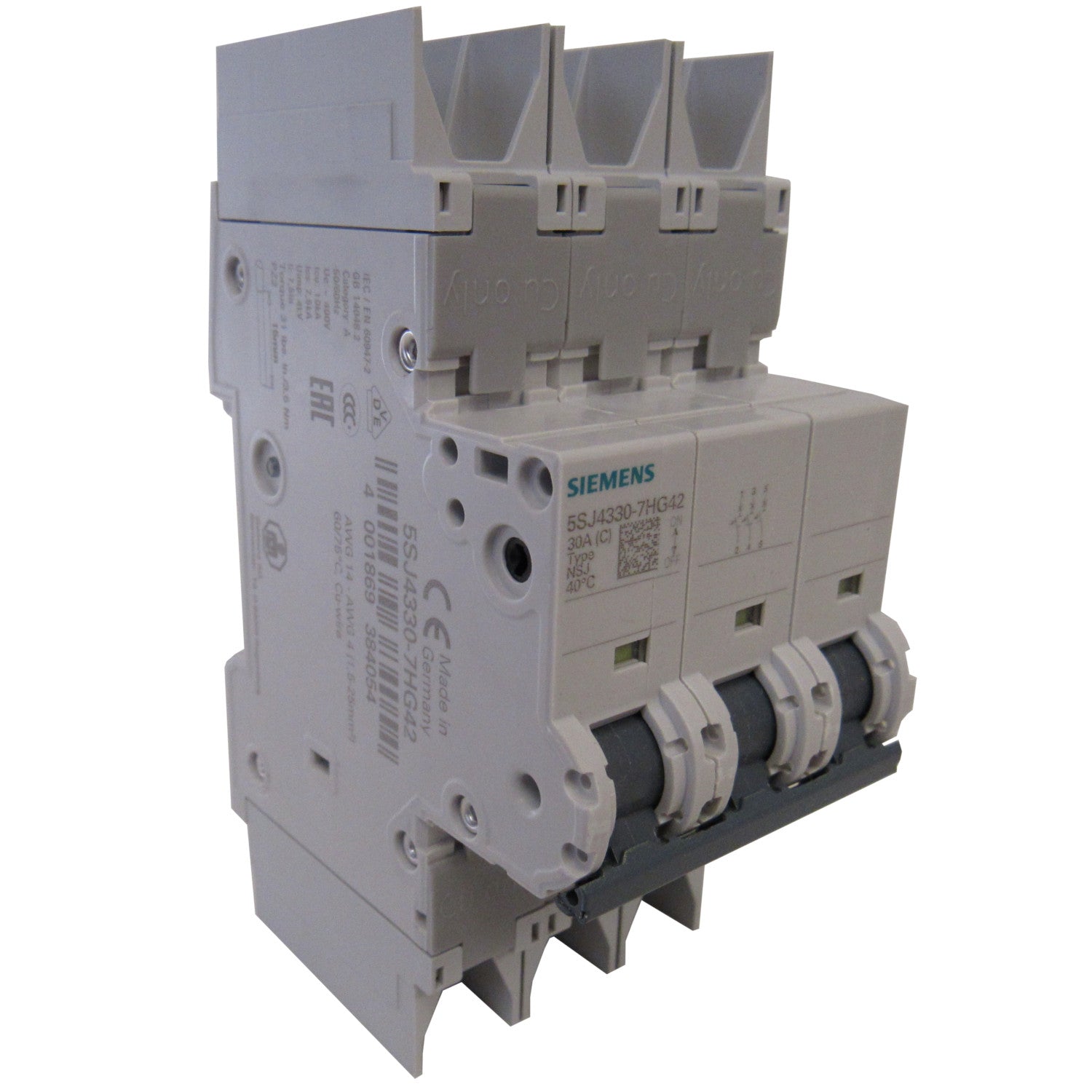

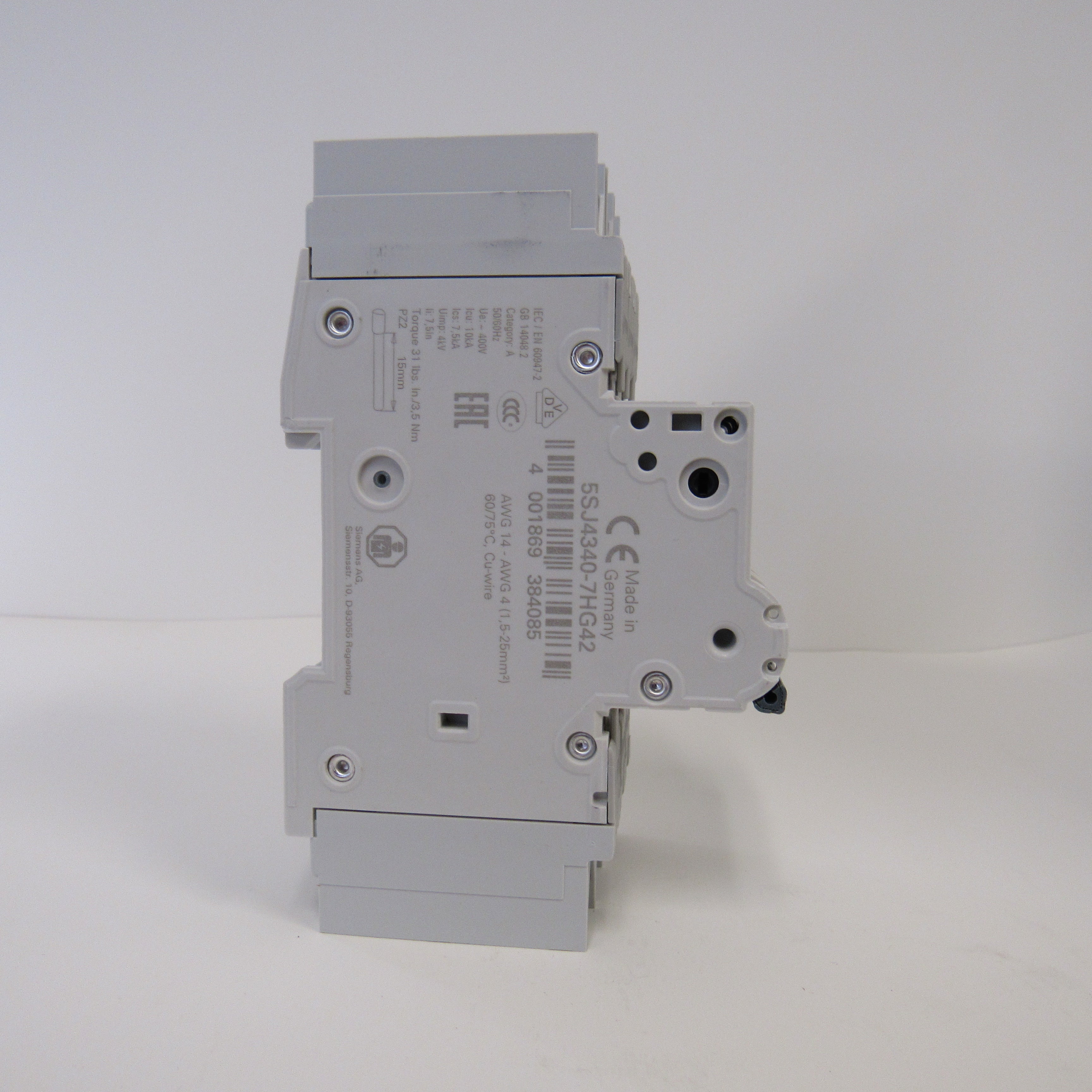

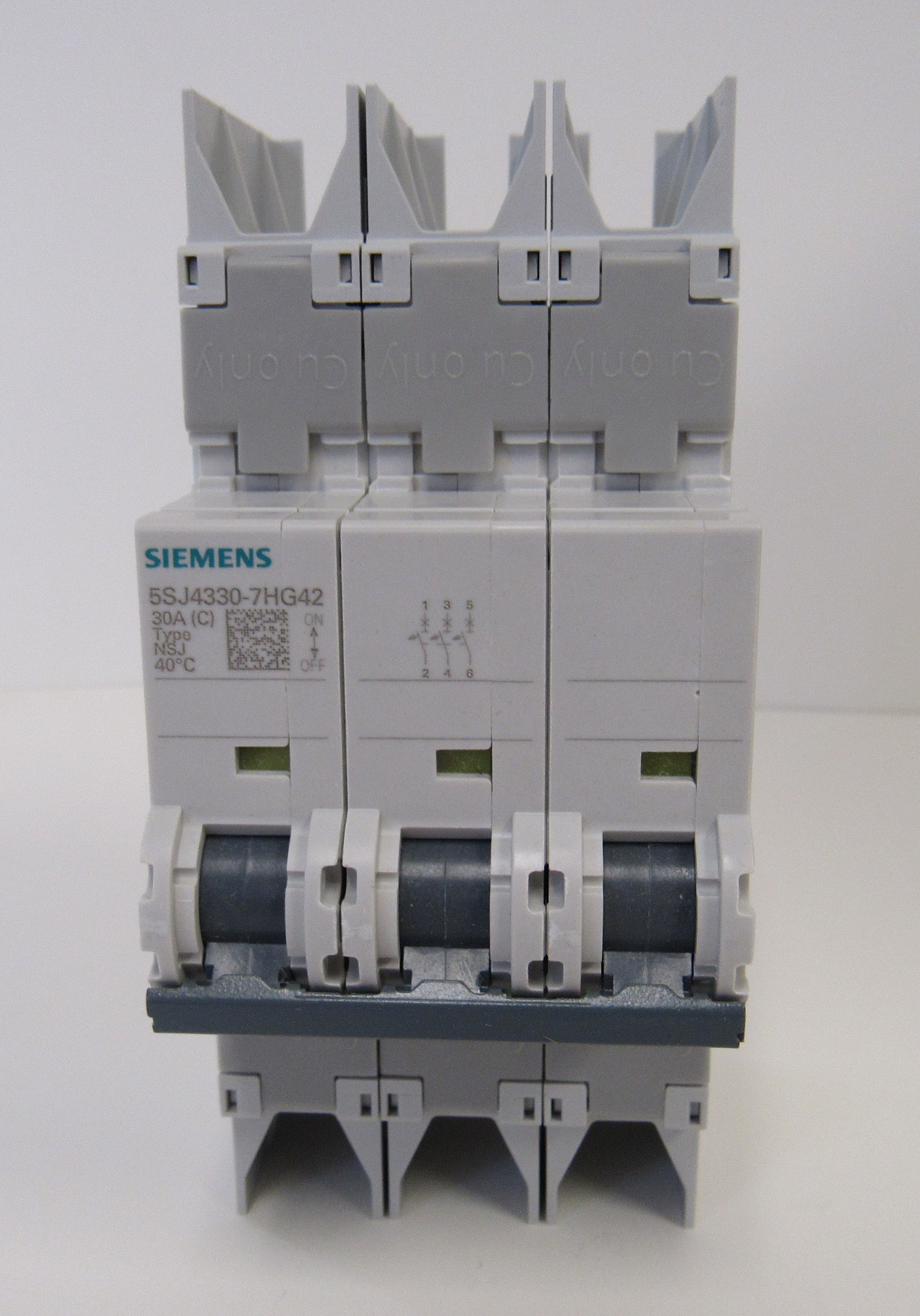

Siemens 5SJ4330-7HG42 Sentron Type NSJ Miniature Circuit Breaker 240 VAC 30 A

Product Description

The SIEMENS 5SJ4330-7HG42 Sentron Type NSJ miniature circuit breaker protects electrical systems against overload and short circuits. It is rated at 240 VAC, 30 A, with a 14 kA interrupt rating and features a thermal/magnetic trip. Designed with identical wire screw connections on line and load side and a visible indicator for on and off/trip.

• 40 deg C calibration base (industrial applications)
• Can be used for field wiring applications 14 to 4 AWG copper only
• Suitable for reverse feed applications

Product Highlights

This miniature circuit breaker is suitable for branch circuit protection applications and DIN rail mounting. It is designed for general device protection in control circuits.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ4330-7HG42
• Country of Origin: Germany

Technical Specifications

• Connection Type: Line/Load/Screw
• Interrupt Rating: 14 kA
• Mounting Type: DIN Rail
• Trip Type: Thermal/Magnetic
• Voltage Rating: 240 VAC
• Frequency Rating: 50 Hz
• Enclosure Type: IP20
• Wire Size: 14 to 4 AWG
• Amperage Rating: 30 A
• Actuator Type: Handle
• Type: Type NSJ
• Number Of Poles: 3
• Phase: 3
• Temperature Rating: -25 to 55 deg C
• Vendor SKU: 5SJ4330-7HG42
• UNSPSC: 39121601
• Application: Branch Circuit Protection Applications
• Standard & Approvals: CSA 22.2 No. 5-02|CE Marked|cULus Listed|IEC/EN 60898|IEC/EN 60947-2|HACR Rated|UL 489 File No. E243414
• Manufacturer: Siemens
• Brand: Siemens
• Voltage Rating - AC: 400 V
• Voltage Rating - DC: 60 V
• Series: SENTRON
• Packaging: Box
• Part Status: Active
• Illumination: None
• Approval Agency: CCC, CE, EAC, UL489
• Current Rating (Amps): 30A
• Alternate Catalog Number: 5SJ4330-7HG42
• Connection: Identical wire screw connections on line and load side.
• Country of Origin: DE
• Standard: UL 489, CSA 22.2 NO. 5-02, HACR, IEC/EN 60 898, IEC/EN 60 947-2
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCSA 22.2 No. 5-02CE MarkedcULus ListedIEC/EN 60898IEC/EN 60947-2HACR RatedUL 489 File No. E243414
• Sub Brand: SENTRON
