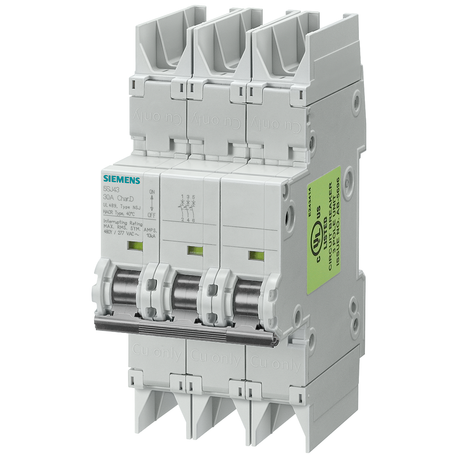

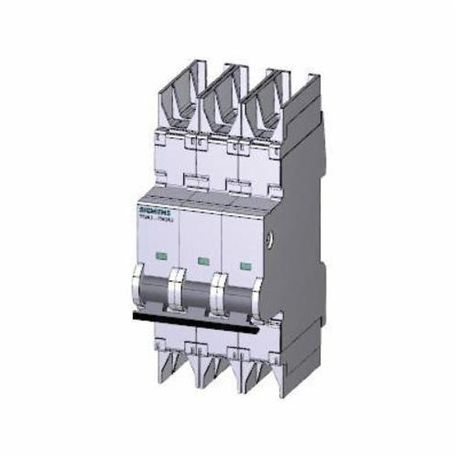

Siemens 5SJ4325-8HG42 Sentron™ Type NSJ Miniature Circuit Breaker 240 VAC 25 A 3 Poles

Product Description

The Siemens Sentron™ 5SJ4325-8HG42 Type NSJ miniature circuit breaker is designed with 240 VAC, 25 A, and a 14 kA interrupt rating. This 3-pole breaker features a thermal/magnetic trip for branch circuit protection applications. It is suitable for reverse feed applications and field wiring applications using 14 to 4 AWG copper conductors.

• Features a 40 deg C calibration base for industrial applications and a 30 deg C calibration base.
• Includes a visible indicator for on/off/trip and touch protection to EN50274.
• Offers identical wire screw connections on the line and load side.

Product Highlights

The Siemens 5SJ4325-8HG42 circuit breaker provides reliable branch circuit protection with a thermal/magnetic trip mechanism and is suitable for various applications with its versatile design.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ4325-8HG42

Technical Specifications

• Wire Size: 14 to 4 AWG
• Voltage Rating: 240 VAC
• Trip Type: Thermal/Magnetic
• Connection Type: Line/Load/Screw
• ActuatorType: Handle
• Temperature Rating: -25 to 55 deg C
• Frequency Rating: 50 Hz
• Interrupt Rating: 14 kA
• Phase: 3
• Number Of Poles: 3
• Amperage Rating: 25 A
• Type: Type NSJ
• Enclosure Type: IP20
• Mounting Type: DIN Rail
• Application: Branch Circuit Protection Applications
• Standard & Approvals: CSA 22.2 No. 5-02|CE Marked|cULus Listed|IEC/EN 60898|IEC/EN 60947-2|HACR Rated|UL 489 File No. E243414
• Manufacturer: Siemens
• Brand: Siemens
• Voltage Rating - AC: 400 V
• Voltage Rating - DC: 60 V
• Approval Agency: CCC, CE, EAC, UL489
