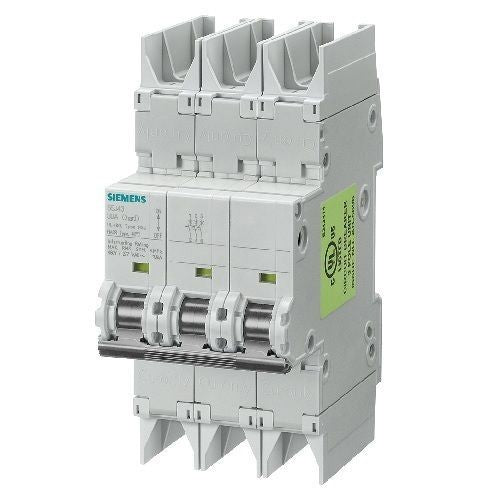

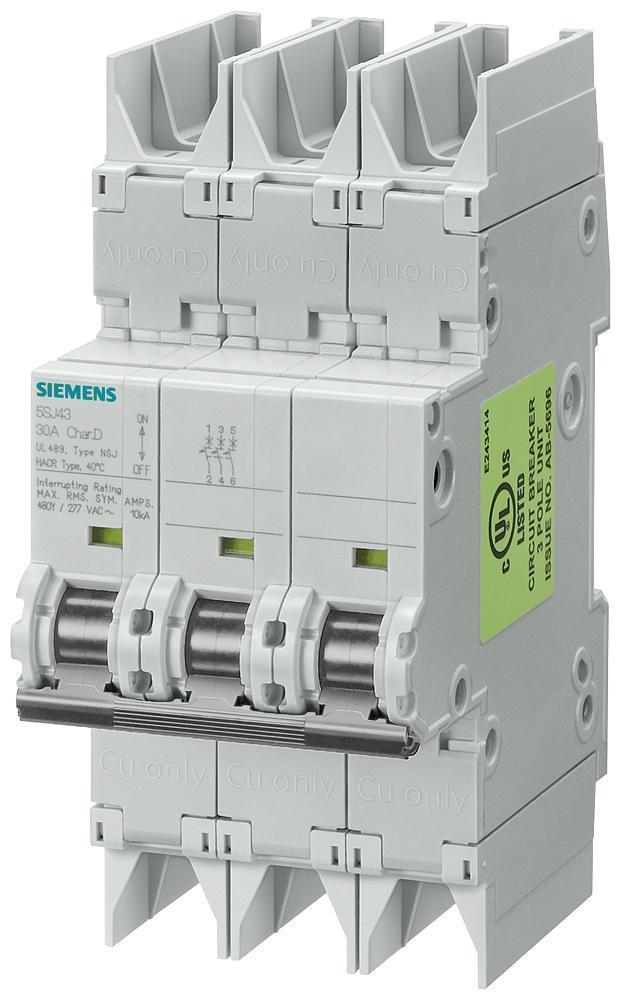

Siemens 5SJ4320-8HG42 Mcb 5SJ4 3P 20A

Product Description

The SIEMENS 5SJ4320-8HG42 is a circuit breaker designed for circuit protection. Rated at 20A, it is suitable for use with AC voltage up to 400V and DC voltage up to 125V. It features a lever actuator and is designed for DIN rail mounting. It is suitable for branch circuit protection applications.

• Suitable for reverse feed applications
• Visible indicator for on and off/trip
• Touch protection to EN50274

Product Highlights

The SIEMENS 5SJ4320-8HG42 is a reliable circuit breaker for DIN rail mounting, providing effective circuit protection in various applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ4320-8HG42
• Country of Origin: DE

Technical Specifications

• Category: Circuit Protection
• Sub Category: Circuit Breakers
• Voltage Rating - AC: 400 V
• Manufacturer: Siemens
• Voltage Rating - DC: 125 V
• Series: 5SJ4 Series
• Actuator Type: Lever
• Number of Poles: 3
• Part Status: Active
• Illumination: None
• Mounting Type: DIN Rail
• Approval Agency: CCC, CE, CSA, EAC, UL, VDE
• Current Rating: 20 A
• Brand: Siemens
• Part Number #: 5SJ4320-8HG42
• Mounting Style: DIN Rail
• Maximum Amperage: 20 A
• Number of Phases: 3
• Break Time: Instantaneous
• Model: 5SJ4320-8HG42
• Interrupt Rating: 14 kA
• Trip Type: Thermal Magnetic
• Wire Size: 14 to 4 AWG
• Application: Branch Circuit Protection Applications
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA 22.2 No. 5-02, CE Marked, cULus Listed, IEC/EN 60898, IEC/EN 60947-2, HACR Rated, UL 489 File No. E243414
• Connection Type: Line/Load/Screw
• Enclosure Type: IP20
• Characteristic: D curve
• Number of Throws: 1
• Current Type: AC
• Temperature Rating: -25 to 55 deg C
• Frequency Rating: 50 Hz
