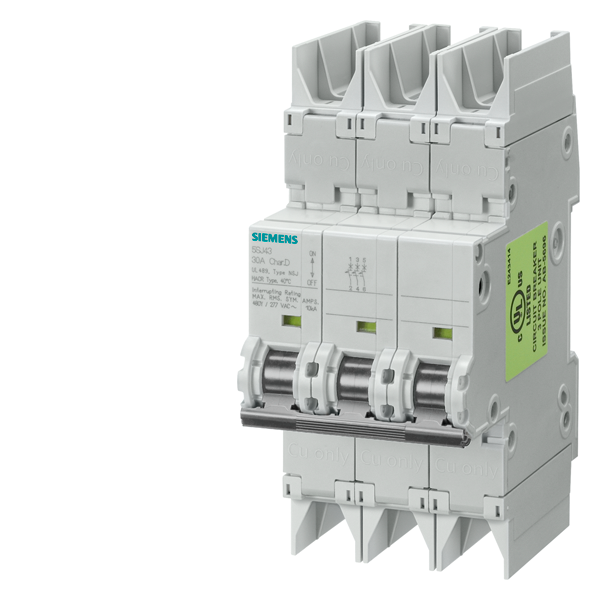

Siemens 5SJ4306-7HG42 Miniature Circuit Breaker 5SJ4 3P 6A

Product Description

The SIEMENS 5SJ4306-7HG42 Miniature Circuit Breakers (MCB) are thermal magnetic overcurrent protection devices intended for general industrial use, such as branch circuit and feeder protection. Provided with a manual means for opening the circuit, they are not ambient compensated. They provide effective protection for personnel, investment, and plants by reliably shutting down in the event of an overload or short-circuit.

• Thermal Magnetic Protection
• Screw Terminals
• Handle Actuator

Product Highlights

The SIEMENS 5SJ4306-7HG42 miniature circuit breaker provides reliable safety during installation due to standard reach-around and touch protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ4306-7HG42
• Country of Origin: Germany

Technical Specifications

• Manufacturer Part Number: 5SJ4306-7HG42
• Manufacturer: SIEMENS
• Mounting Type: DIN Rail Mount
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Number of Poles: 3
• Series: 5SJ4 Series
• Voltage Rating: 277 V V, 480 V V
• UPC Code: 754554960241
• Alternate Mfr Part Number: 5SJ4306-7HG42
• Type: Thermal/Magnetic
• Current Rating: 6 A
• Characteristic: C Curve
• Amperage: 6 Amp
• Applications: Miniature Circuit Breakers IEC
• Current: 6 AMP
• Interrupt Rating: 14 kAIC
• Material: Thermoplastic
• Rated Voltage DC: 400 V
• Standard: CSA,E2186,UL
• Tc Connection: Identical wire screw connections on line and load side.
• Voltage: 400 Volt
• Brand: Siemens
• Sub Brand: Controls
• 12-Digit UPC: 754554960241
• Product UPC: 75455496024
• Dimensions: 121 mm H x 54 mm W x 70 mm D
• UNSPSC: 39121601
• Part Number #: 5SJ4306-7HG42
• SKU #: 2168388
• ETIM Group: Circuit breakers and fuses
• ETIM Class: Miniature circuit breaker (MCB)
• Additional equipment possible: true
• Ambient temperature during operating: -25 - 55°C
• Built-in depth: 70mm
• Concurrently switching neutral conductor: false
• Connectable conductor cross section multi-wired: - -
• Connectable conductor cross section solid-core: - -
• Current limiting class: None
• Degree of protection (IP): IP20
• Explosion-proof: false
• Flush-mounted installation: false
• Frequency: - -
• Number of poles (total): 3
• Number of protected poles: None
• Over voltage category: 3
• Pollution degree: 3
• Rated current: 6A
• Rated impulse withstand voltage Uimp: None
• Rated insulation voltage Ui: 440V
• Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 10kA
• Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 10kA
• Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 15kA
• Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 15kA
• Rated voltage: 400V
• Release characteristic: C
• Voltage type: AC/DC
• Width in number of modular spacings: 3
