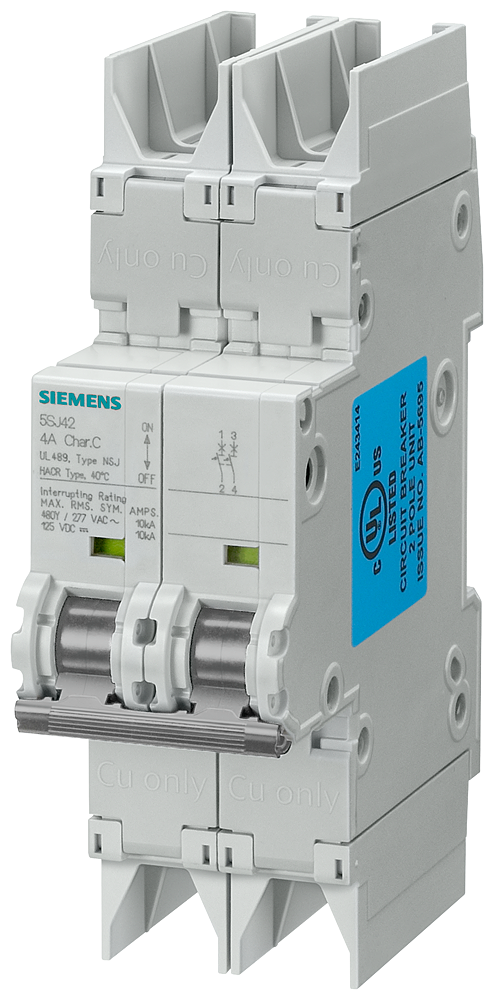

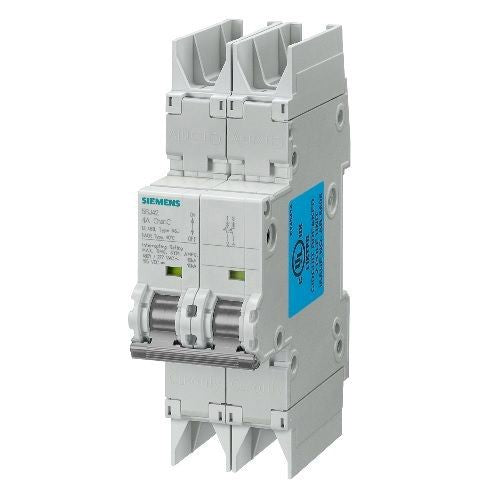

Siemens 5SJ4218-8HG42 Sentron Type NSJ Miniature Circuit Breaker 15 A

Product Description

The Siemens 5SJ4218-8HG42 Sentron Type NSJ Miniature Circuit Breaker operates at 240 VAC with a 15 A current rating and a 14 kA interrupt rating. Featuring a thermal magnetic trip and designed with 2 poles, this circuit breaker is suitable for branch circuit protection applications. It can be used with 14 to 4 AWG copper wiring.

• 40 deg C calibration base (industrial applications)
• Suitable for reverse feed applications
• Visible indicator for on and off/trip

Product Highlights

The Siemens miniature circuit breaker provides effective protection for personnel and plants by reliably shutting down in the event of an overload or short-circuit.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ4218-8HG42
• Country of Origin: DE

Technical Specifications

• Frequency Rating: 50 Hz
• Interrupt Rating: 14 kA
• Mounting Type: DIN Rail
• Number Of Poles: 2
• Phase: 1
• Temperature Rating: -25 to 55 deg C
• Trip Type: Thermal Magnetic
• Type: Type NSJ
• Voltage Rating: 240 VAC
• Wire Size: 14 to 4 AWG
• Application: Branch Circuit Protection Applications
• Amperage Rating: 15 A
• Actuator Type: Handle
• Connection Type: Line/Load/Screw
• Enclosure Type: IP20
• Current Rating: 15 A
• Standard: UL 489, CSA 22.2 NO. 5-02, HACR, IEC/EN 60 898, IEC/EN 60 947-2
• Sub Brand: SENTRON
• Brand: SIEMENS
• Model: 5SJ4218-8HG42
