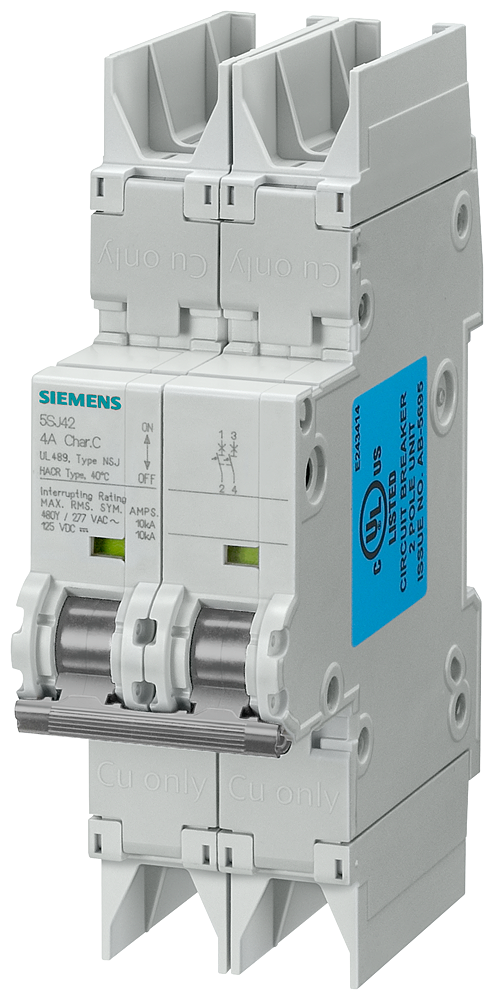

Siemens 5SJ4214-7HG42 MCB 5SJ 2P 0.3A

Product Description

The SIEMENS 5SJ4214-7HG42 is a miniature circuit breaker designed for branch circuit protection. Rated at 0.3A, it is suitable for use in residential, commercial, and industrial settings. This 2-pole breaker is UL 489 rated and can be used for both AC and DC voltage applications. It features a Class C trip and screw connections for easy installation.

• Suitable for residential, non-residential, and industrial buildings
• Can be used according to IEC/EN 60898-1 and UL 489 standards
• Fast mounting with busbars up to 115 A and feeder terminals up to 50 sq-mm

Product Highlights

The SIEMENS 5SJ4214-7HG42 miniature circuit breaker provides reliable circuit protection for a variety of applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ4214-7HG42
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Width: 1.575 in
• Height: 3.31 Inch
• Length: 4.921 Inch
• Voltage: 400 Volt
• Amperage: 0.3 Amp
• Material: Thermoplastic
• Standard: UL 489 Rated
• Frequency: 50 Hz
• Sub Brand: SENTRON
• Applications: BRANCH CIRCUIT PROTECTORS
• Mounting Type: DIN Rail
• TC Connection: Identical wire screw connections on line and load side.
• Connection Type: Identical Wire Screw Connections On Line And Load Side.
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kAIC
• Short Circuit Current: 10 kA
• Part Number #: 5SJ4214-7HG42
• Application: Branch Circuit Protection Applications
• Manufacturer: Siemens
• Reference: 5SJ42147HG42
• Item Code: 5SJ42147HG42
• Category: Circuit Protection
• Circuit Breakers: Circuit Breakers
• Voltage Rating - AC: 400 V
• Voltage Rating - DC: 60 V
• Series: SENTRON
• Actuator Type: Lever
• Packaging: Box
• Illumination: None
• Approval Agency: CCC, CE, EAC, UL489, VDE
• Current Rating (Amps): 300mA
