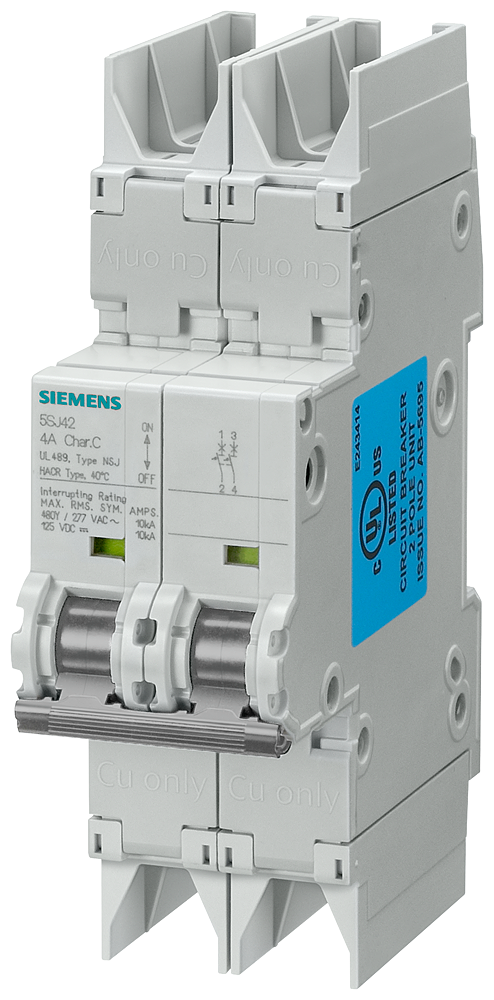

Siemens 5SJ4204-7HG42 MCB, 2P, 4A

Product Description

The Siemens 5SJ4204-7HG42 is a 2-pole MCB designed for overcurrent protection in industrial applications. It is UL Listed and certified to Canadian Standards. Suitable for branch circuit and feeder protection, the device features a visible trip indicator and identical wire screw connections on line and load sides.

• Thermal magnetic protection
• Standard DIN rail mounting (35 mm)
• Suitable for branch circuit and feeder protection applications

Product Highlights

The Siemens 5SJ4204-7HG42 MCB offers reliable overcurrent protection with easy installation and clear trip indication.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ4204-7HG42
• Country of Origin: Germany

Technical Specifications

• GTiN: 00754554959856
• Size: N/A
• Type: NSJ
• Brand: Siemens
• Class: C
• Width: 1.550 in
• Height: 3-1/4 Inch
• Length: 4.9 Inch
• Weight: 0.728 lb
• Current: 4 AMP
• Voltage: 400 Volt
• Amperage: 4 Amp
• Material: Thermoplastic
• Standard: EN 60 947-2,UL 489,EN 60 898,IEC,CSA 22.2 NO. 5-02,HACR
• Frequency: 50 Hz
• Sub Brand: SENTRON
• Product UPC: 75455495985
• 12-Digit UPC: 754554959856
• Applications: BRANCH CIRCUIT PROTECTORS
• Mounting Type: DIN Rail
• Response Time: N/A
• TC Connection: Identical wire screw connections on line and load side.
• Connection Type: Identical Wire Screw Connections On Line And Load Side.
• Number of Poles: 2 Pole
• Interrupt Rating: 14 kAIC
• Country of Origin: Germany
• Short Circuit Current: 14 kA
• UNSPSC Code: 39120000
• Actuator Type: Toggle
• Approvals: UL 489
• Characteristic: C Curve
• Current Rating: 4 A
• Manufacturer Part Number: 5SJ4204-7HG42
• Series: 5SJ4 Series
• Standards: UL 489
• Termination: screw
• Unit of Measure: EA
• Voltage Rating: 277 V
• Alternate Catalog Number: 5SJ4204-7HG42
• Application: BRANCH CIRCUIT PROTECTORS
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: 5SJ4204-7HG42
• Connection: Identical wire screw connections on line and load side.
• Enclosure Type: IP20
• EU RoHS Indicator: C
• Frequency Rating: 50 Hz
• Gross Volume Per Pack: 24.58
• Gross Volume UOM: in
• Gross Weight Per Pack: 0.7300 lb
• Gross Weight per Pack Metric: 0.33
• Gross Weight UOM Metric: kg
• Harmonization Tariff Schedule Code: 8536200040
• Height [Metric]: 8.2550 cm
• Length [Metric]: 12.4460 cm
• Width [Metric]: 3.9370 cm
• Wire Size: 14 to 4 AWG
• Stock Status: NONSTOCK
• Manufacturer: Siemens
• Amperage Rating: 4 A
• Trip Type: Thermal Magnetic
• Dimensions: 121 mm H x 36 mm W x 76 mm D
• Temperature Rating: -25 to 55 °C
