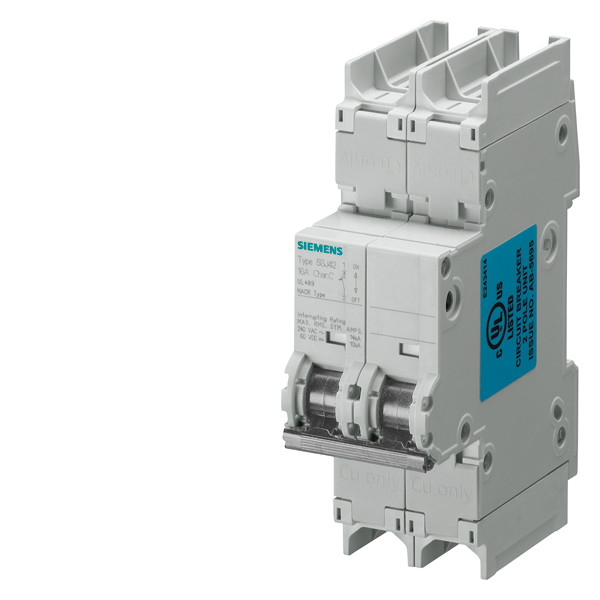

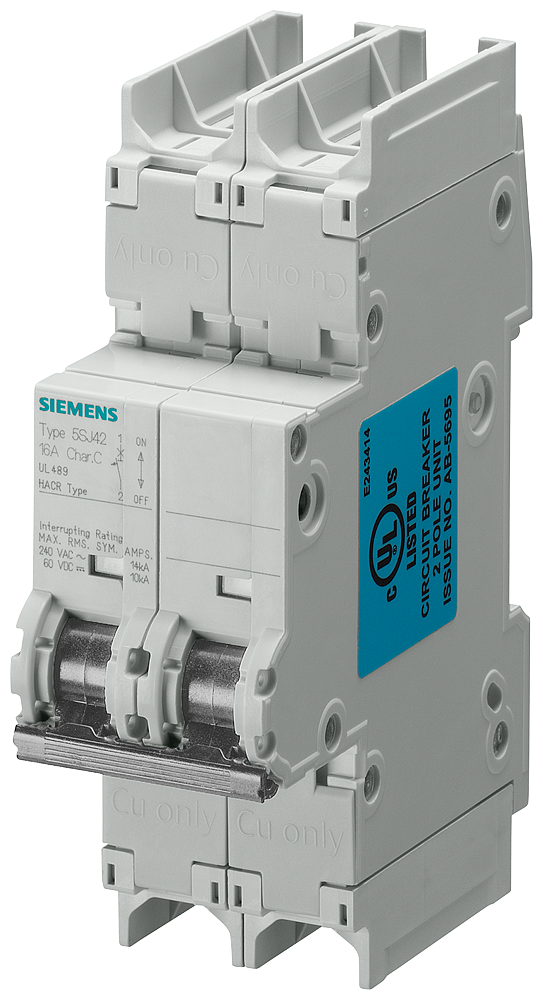

Siemens 5SJ4204-7HG41 Mcb 2P 4A C-Trip

Product Description

The SIEMENS 5SJ4204-7HG41 is a miniature circuit breaker (MCB) designed for thermal magnetic overcurrent protection in general industrial applications, such as branch circuit and feeder protection. It features a manual circuit opening mechanism and is not ambient compensated. This MCB is suitable for DIN rail mounting.

• Thermal Magnetic Protection
• Screw Terminals
• Handle Actuator

Product Highlights

The SIEMENS 5SJ4204-7HG41 MCB provides reliable overcurrent protection with convenient screw terminals and handle actuator.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ4204-7HG41
• Country of Origin: Germany

Technical Specifications

• Category: Circuit Protection
• Circuit Breakers: Circuit Breakers
• Voltage Rating - AC: 400 V
• Manufacturer: Siemens
• Voltage Rating - DC: 60 V
• Series: SENTRON
• Actuator Type: Lever
• Number of Poles: 2
• Part Status: Active
• Illumination: None
• Mounting Type: DIN Rail
• Approval Agency: CCC, CE, EAC, UL489, VDE
• Current Rating: 4A
• Manufacturer Part Number: 5SJ4204-7HG41
• Type: Thermal/Magnetic
• Characteristic: C Curve
• Applications: For Branch Circuit Protectors
• Connection Type: Identical Wire Screw Connections On Line And Load Side.
• Frequency: 50 Hz
• Interrupt Rating: 14 kAIC
• Material: Thermoplastic
• Short Circuit Current: 14 kA
• Standard: UL 489,IEC,HACR,EN 60 898,EN 60 947-2,CSA 22.2 NO. 5-02
• Trip Type: Class C
• Brand: Siemens
• Sub Brand: Sentron
• Class: C
