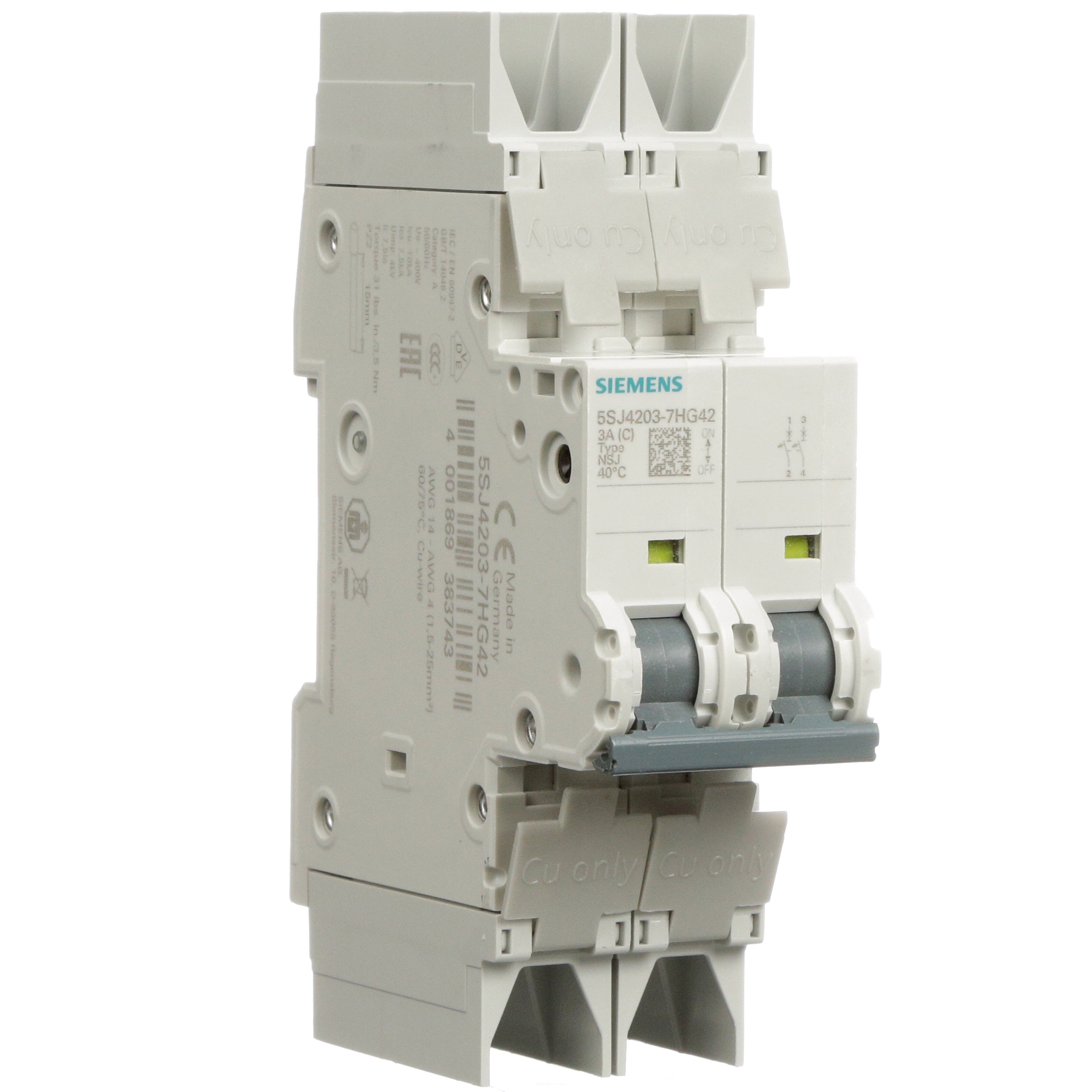

Siemens 5SJ4203-7HG42 Miniature Circuit Breaker 3 A (2P) 5SJ4203-7HG42

Product Description

Siemens 5SJ4203-7HG42 is a 2-pole miniature circuit breaker rated 3 A, designed for branch circuit protection on DIN-rail systems. The device features a Class C thermal-magnetic trip characteristic, a 400 V voltage rating, and a 14 kA interrupt capacity. It uses identical wire screw connections for line and load, has a thermoplastic enclosure, and complies with multiple international standards for industrial electrical protection.

• 2-pole, 3 A miniature circuit breaker with Class C trip characteristic
• 400 V rating with 14 kA interrupting capacity; DIN-rail mounting
• Thermoplastic enclosure with identical wire screw connections on line and load

Product Highlights

2-pole 3 A DIN-rail MCB, Class C trip, 14 kA interrupt rating, thermoplastic construction

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ4203-7HG42
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 5SJ4203-7HG42
• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 2
• Current Rating: 3 A
• Voltage Rating: 400 V
• Interrupt Rating: 14 kA
• Trip Characteristic: Class C (thermal-magnetic)
• Mounting Type: DIN rail
• Connection Type: Identical wire screw connections on line and load side
• Material: Thermoplastic
• Frequency: 50 Hz
• Standards/Certifications: CSA 22.2 NO. 5-02, EN 60947-2, EN 60898, IEC, UL 489
• Sub Brand: SENTRON
• Applications: Branch circuit protection
• Country of Origin: Germany
