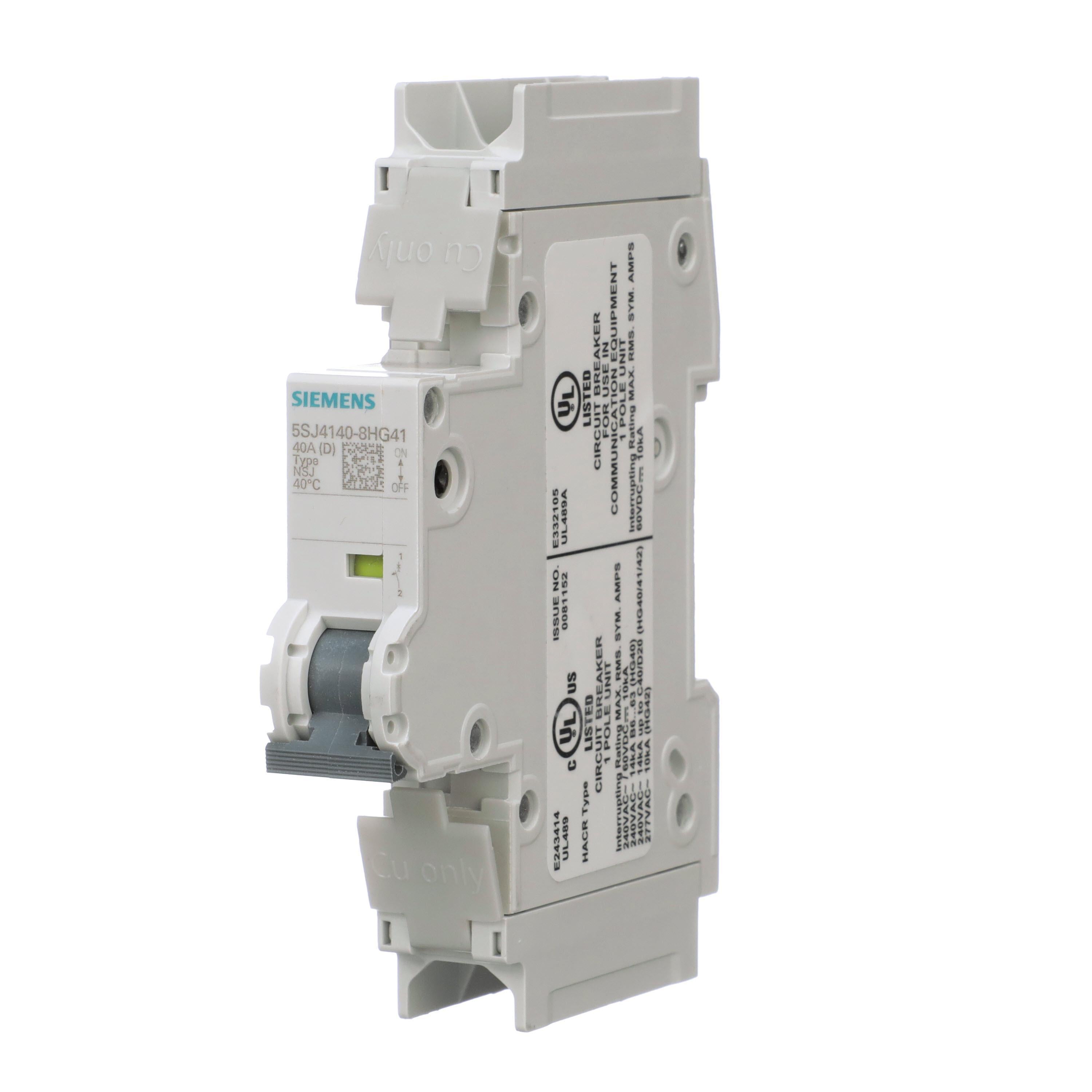

Siemens 5SJ41408HG41 Miniature Circuit Breaker 40 A (1 Pole)

Product Description

Siemens 5SJ41408HG41 is a single-pole miniature circuit breaker rated 40 A and 240 V with a D trip characteristic and 10 kA interrupting capacity. The device complies with UL 489 and has a depth dimension D = 70 mm. It is intended for branch circuit protection and for applications with higher inrush currents where a D-trip characteristic is required.

• Single-pole D-trip miniature circuit breaker, 40 A rating, 240 V, 10 kA interrupting capacity, UL 489 listed
• Compact dimensions 18 x 110 x 70 mm (D = 70 mm) with 35 mm DIN-rail mounting and IP20 enclosure
• Line/load screw connections accepting 14 to 4 AWG copper conductors; thermal/magnetic trip suitable for high inrush loads

Product Highlights

Single-pole 40 A D-trip MCB for 240 V systems with 10 kA interrupting capacity and DIN-rail mounting

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ41408HG41
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 5SJ41408HG41
• Product Type: Miniature circuit breaker
• Product Family: SENTRON
• Poles: 1
• Phase: 1
• Current Rating: 40 A
• Voltage Rating: 240 V
• Frequency Rating: 50 Hz
• Trip Characteristic: D (D-Trip)
• Trip Type: Thermal/magnetic
• Interrupting Capacity: 10 kA
• Standards: UL 489, CSA 22.2 No. 5-02, IEC/EN 60898, IEC/EN 60947-2
• Dimensions (W x H x D): 18 x 110 x 70 mm (0.71 x 4.33 x 2.76 in)
• Width: 18 mm
• Height: 110 mm
• Depth: 70 mm
• Mounting Type: DIN rail (35 mm)
• Enclosure Rating: IP20
• Connection Type: Line/Load screw
• Operating Temperature Range: -25 to 55 °C
• RoHS Compliance: Yes
• Country of Origin: Germany
• Actuator Type: Handle
• Application: Branch circuit protection and reverse-feed applications
• Wire Size (corrected): 14 to 4 AWG (approx. 2.08 to 21.1 mm²) copper only
