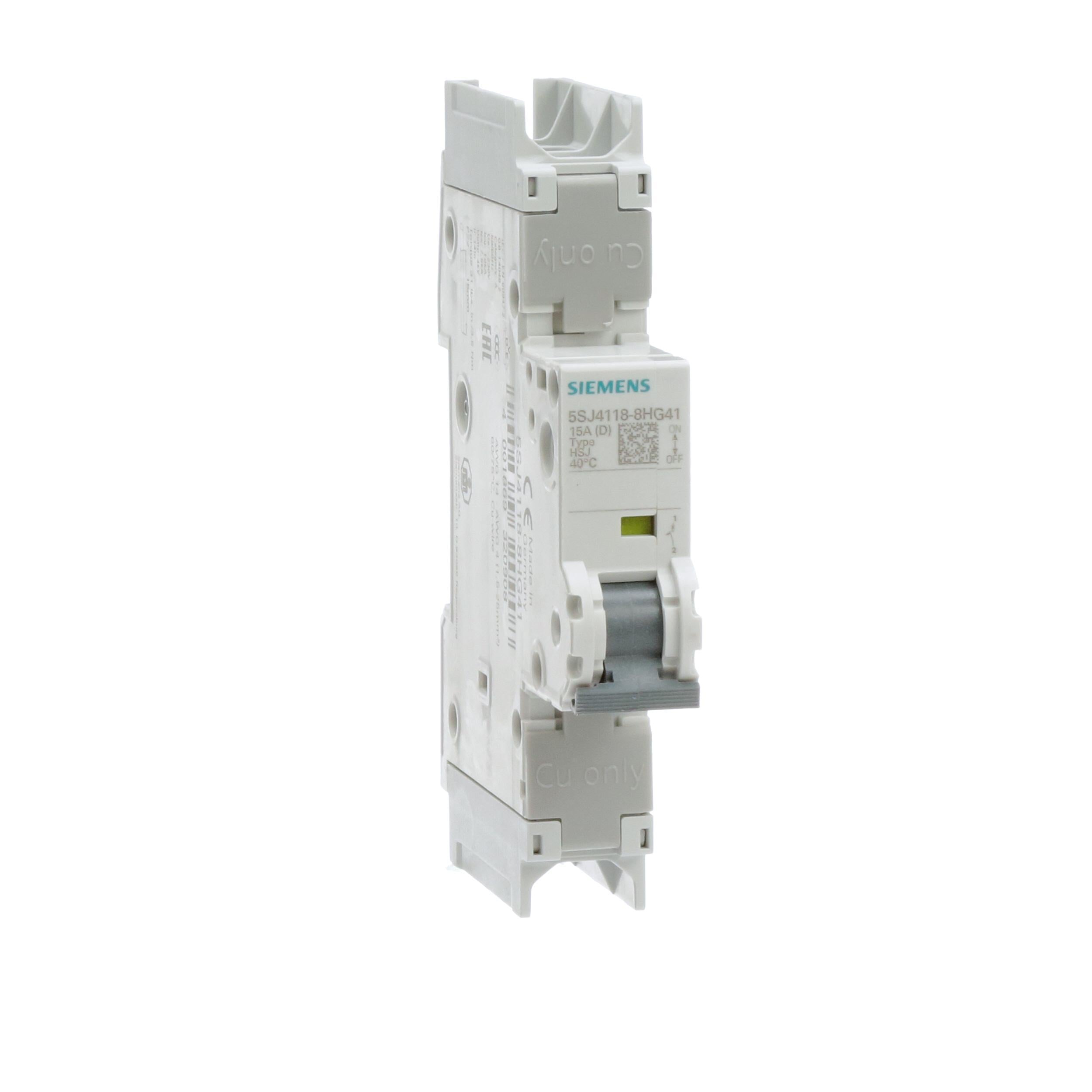

Siemens 5SJ41188HG41 Miniature Circuit Breaker 15A

Product Description

The Siemens 5SJ41188HG41 miniature circuit breaker is a 1-pole breaker rated at 240V and 15A, designed with a D trip curve and a 14kA interrupt capacity according to UL 489. It features thermal/magnetic trip functionality and is suitable for commercial and industrial applications. The device supports DIN rail mounting and screw connections for 14 to 4 AWG wire.

• D-trip designed for high inrush loads with a magnetic trip point 10 to 20 times the MCB rating
• Suitable for field wiring applications, supporting 14 to 4 AWG copper wire
• Features a visible indicator for ON and OFF/trip status

Product Highlights

Miniature circuit breaker with D trip curve, ideal for high inrush loads in commercial and industrial settings.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ41188HG41
• Country of Origin: Germany

Technical Specifications

• Approvals: UL 489
• Manufacturer: SIEMENS
• Characteristic: D curve
• Current Rating: 15 A
• Manufacturer Part Number: 5SJ41188HG41
• Number of Poles: 1
• Series: 5SJ4 Series
• Standards: UL 489
• UPC Code: 662643167849
• Voltage Rating: 240 V
• Type: Type HSJ
• UNSPSC: 39121601
• Voltage: 240 VAC
• Frequency: 50 Hz
• Interrupt: 14 kA
• Trip: Thermal/Magnetic Trip
• Phase: 1 ph
• Actuator: Handle Actuator
• Connection: Line/Load/Screw Connection
• Wire: 14 to 4 AWG
• Enclosure: IP20
• Mounting: DIN Rail Mounting
• Temperature: -25 to 55 deg C
• Amps: 15A
• AC Voltage Rating: 240V AC
• Circuit Breaker Mounting Style: Surface Mount/DIN Rail
• Max. AIR Rating: 14kA
• Terminal Connection: Screw Clamp
• DC Voltage Rating: 60V DC
• Curve Type: D
• Application: Commercial, Industrial
• Material: Thermoplastic
• Frame Size: Frame 1
• Max. Wire Size: 4 AWG
• Min. Wire Size: 14 AWG
