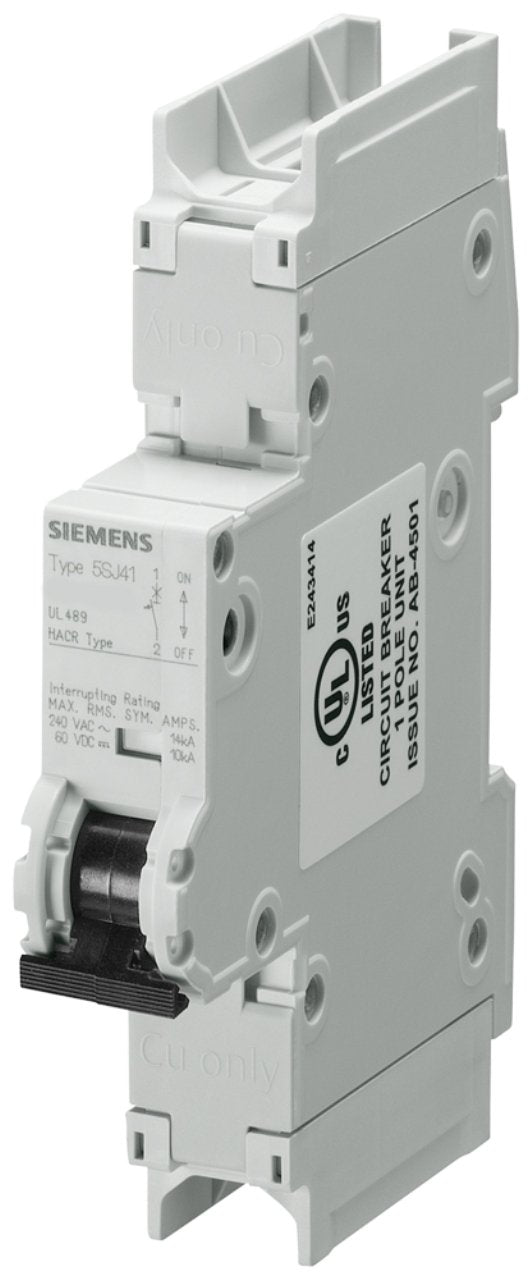

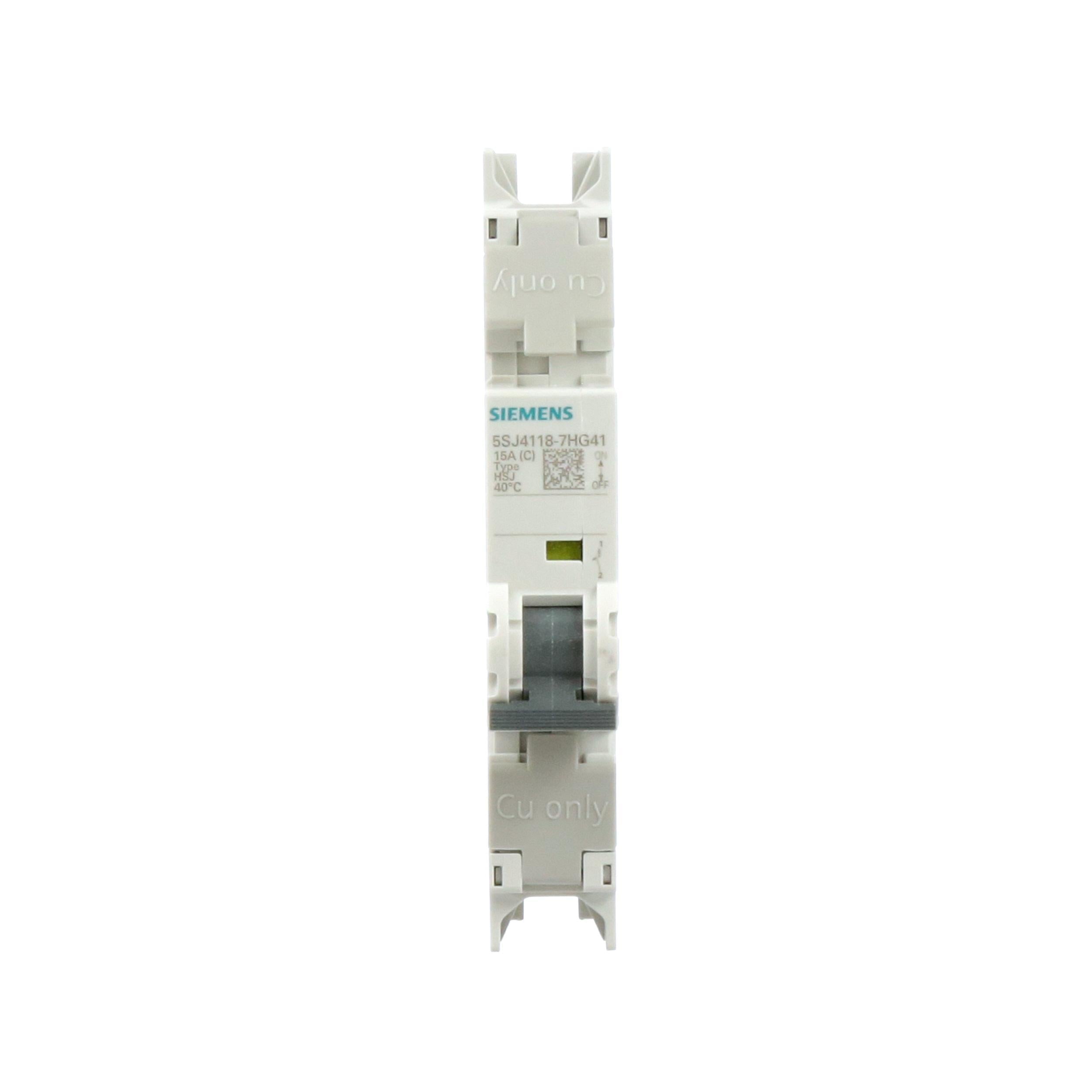

Siemens 5SJ41187HG41 Miniature Circuit Breaker 15 Ampere Maximum

Product Description

The SIEMENS 5SJ41187HG41 miniature circuit breaker is UL 489 rated and designed for branch circuit protection and feeder applications. It is a 1 Pole breaker with a 15 Ampere Maximum and Tripping Characteristic C. It can be installed on DIN rails and is suitable for use in distribution blocks, control cabinets, and control systems. It is also approved for HVAC systems and DC applications up to 60 VDC.

• UL 489 Rated
• 1 Pole Breaker
• 15 Ampere Maximum

Product Highlights

The Siemens 5SJ41187HG41 is a miniature circuit breaker designed for branch circuit protection and feeder applications. It is UL 489 rated and suitable for use in various settings.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ41187HG41

Technical Specifications

• Brand: SIEMENS
• MPN: 5SJ41187HG41
• Rated: UL 489
• Poles: 1 Pole
• Amperage: 15 Ampere Maximum
• Tripping Characteristic: C
• Mounting Type: DIN Rail Mounted
• Type: HSJ
• Voltage: 240 VAC, 60 VDC
• Temperature Rating: -25 to 55 deg C
• GTIN: 00662643167832
• Series: 5SJ
• Voltage Rating: 240 VAC
• Frequency Rating: 50 Hz
• Connection Type: Line/Load/Screw
• ActuatorType: Handle
• Interrupt Rating: 14 kA
• Trip Type: Class C/Thermal Magnetic
• Wire Size: 14 to 4 AWG
• Number Of Poles: 1
• Enclosure Type: IP20/IP40
• Amperage Rating: 15 A
• Application: Branch Circuit Protector Applications
• Standard & Approvals: CSA C22.2 No 5-02|UL 489|UL 489A|IEC/EN 60 898|IEC/EN 60 947-2|HACR Rated
• Manufacturer: Siemens
• Current Rating (Amps): 15A
• Voltage Rating - AC: 400 V
• Voltage Rating - DC: 60 V
• Actuator Type: Lever
• Illumination: None
• Illumination Voltage (Nominal): -
• Approval Agency: CCC, CE, CSA, EAC, UL489, VDE
• Characteristic: C Curve
• Current Rating: 15 A
• Manufacturer Part Number: 5SJ41187HG41
• Standards: UL 489
