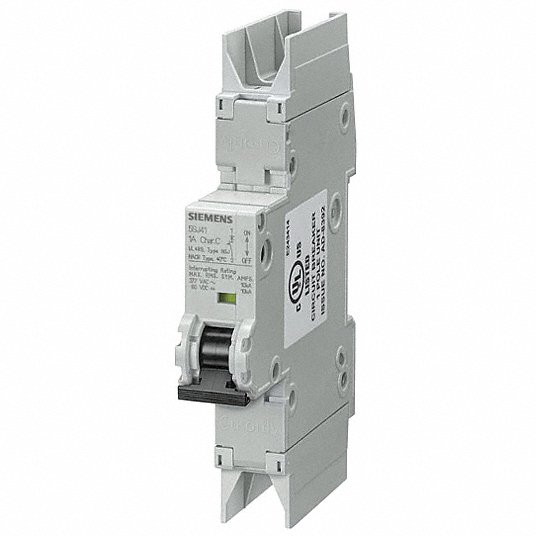

Siemens 5SJ4115-7HG42 Sentron Miniature Circuit Breaker 1.6 A

Product Description

The Siemens 5SJ4115-7HG42 Sentron miniature circuit breaker is a 240 V AC, 1.6 A breaker with a 50/60 Hz frequency. It features a 14 kA interrupt capacity, HSJ frame, and thermal magnetic trip. Designed with a handle actuator and screw connection, it accommodates 14 to 4 AWG wire and is suitable for branch circuit protection applications.

• Can be used globally for all applications in residential, non-residential and industrial buildings, this facilitates the planning of installations and enhances export opportunities
• The devices can be used according to IEC/EN 60898-1 and UL 489, which means these devices can be installed anywhere in the world
• Can be used for both AC voltage and DC voltage up to 125 VAC

Product Highlights

Miniature circuit breaker with 14 kA interrupt capacity and HSJ frame for diverse applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ4115-7HG42
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Part Number #: 5SJ4115-7HG42
• SKU #: 2326036
• Dimensions: 121 mm H x 18 mm W x 76 mm D
• Frame: HSJ
• Series: 5SJ
• UNSPSC: 39121601
• Trip Type: Thermal/Magnetic
• Wire Size: 14 to 4
• Application: Industrial
• Mounting Type: DIN Rail
• Enclosure Type: IP20/IP40
• Voltage Rating: 277
• Connection Type: Screw
• Frequency Rating: 50/60
• Temperature Rating: -25 to 55
• Actuator Type: Handle
• Amperage Rating: 1.6
• Condition: New
• Country of Origin: Germany
• Number of Throws: 1
• Interruption Type: Thermal Circuit Breaker
• Plug Type: None
• Custom Bundle: No
• Smart Home Compatibility: None
• Suitable For: Interior
• Tripping Characteristics: Type C
• Current Type: AC/DC
• Control Style: Switch
• Number of Ports: 1
• Voltage: 277Vac
• Number in Pack: 1
• Number of Outlets: None
• Features: Trip Indicator
• Number of Gangs: 1
• Maximum Amperage: 1.6A
• Number of Positions: 1
• Current Rating: 1.6A
• Number of Phases: 1
• Material: Plastic, Copper
• Operation Method: On/Off
• Type: Main Breaker
• Model: 5SJ4115-7HG42
• Number of Poles: 1
• Number of Circuits: 1-10
• Smart Home Protocol: None
• Amps: 1.6 A
• Curve Type: C
• AC Voltage Rating: 277V AC
• DC Voltage Rating: 60V DC
• Max. AIR Rating: 10kA at 277V AC
• Phase: 1
• Meets UL Type: UL 489
• Terminal Connection: Screw Clamp
• Circuit Breaker Mounting Style: DIN Rail
• Min. Wire Size: 14 AWG
• Max. Wire Size: 4 AWG
• Length: 4.76 in
• Width: 0.71 in
• Depth: 2.75 in
• Frame Size: 63A/5SJ4
• Circuit Breaker Actuator: Toggle
• Min. Operating Temp.: -13°F
• Max. Operating Temp.: 113 °F
• Standards: CSA C22.2 No. 5-02; EN 60898; EN 60947-2; UL 489
• Voltage Type: AC/DC
