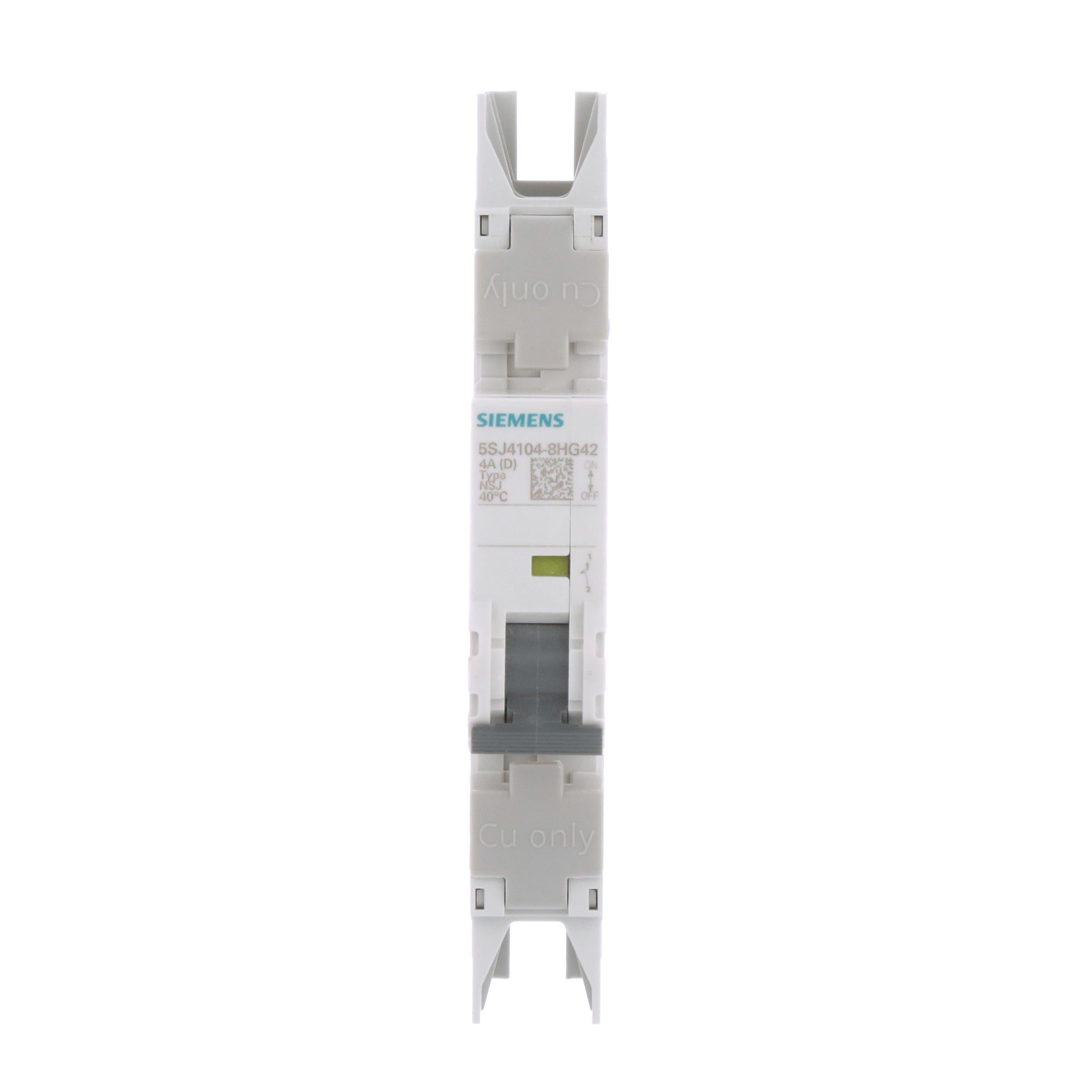

Siemens 5SJ4104-8HG42 Mcb 5sj4 1p 277v 4a 10k D-Trip

Product Description

The SIEMENS 5SJ4104-8HG42 is a miniature circuit breaker designed for circuit protection. Rated at 4A, it operates at 400 V AC and 60 V DC, featuring a lever actuator and DIN rail mounting. It is suitable for branch circuit protection applications.

• Current Rating: 4A
• Voltage Rating: Up to 400V AC, 60V DC
• Mounting Type: DIN Rail

Product Highlights

This miniature circuit breaker is designed for reliable circuit protection with a compact form factor and easy installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ4104-8HG42

Technical Specifications

• Category: Circuit Protection
• Circuit Breakers: Circuit Breakers
• Voltage Rating - AC: 400 V
• Manufacturer: Siemens
• Voltage Rating - DC: 60 V
• Series: 5SJ4
• Actuator Type: Handle
• Number of Poles: 1
• Part Status: Active
• Illumination: None
• Mounting Type: DIN Rail
• Approval Agency: CCC, CE, CSA, EAC, UL489, VDE
• Current Rating (Amps): 4A
• Manufacturer Part Number: 5SJ4104-8HG42
• Current Rating: 4 A
• Brand: Siemens
• VAC: 277
• Pole: 1
• Trip Type: D
• Type: Miniature Circuit Breaker
• Frequency Rating: 50 Hz
• Interrupt Rating: 14 kA
• Connection Type: Line/Load/Screw
• Enclosure Type: IP20
• Phase: 1
• Temperature Rating: -25 to 55 deg C
• Standard & Approvals: CSA 22.2 No. 5-02, CE Marked, cULus Listed, IEC/EN 60898, IEC/EN 60947-2, HACR Rated, UL 489 File No. E243414
• Amperage Rating: 4 A
