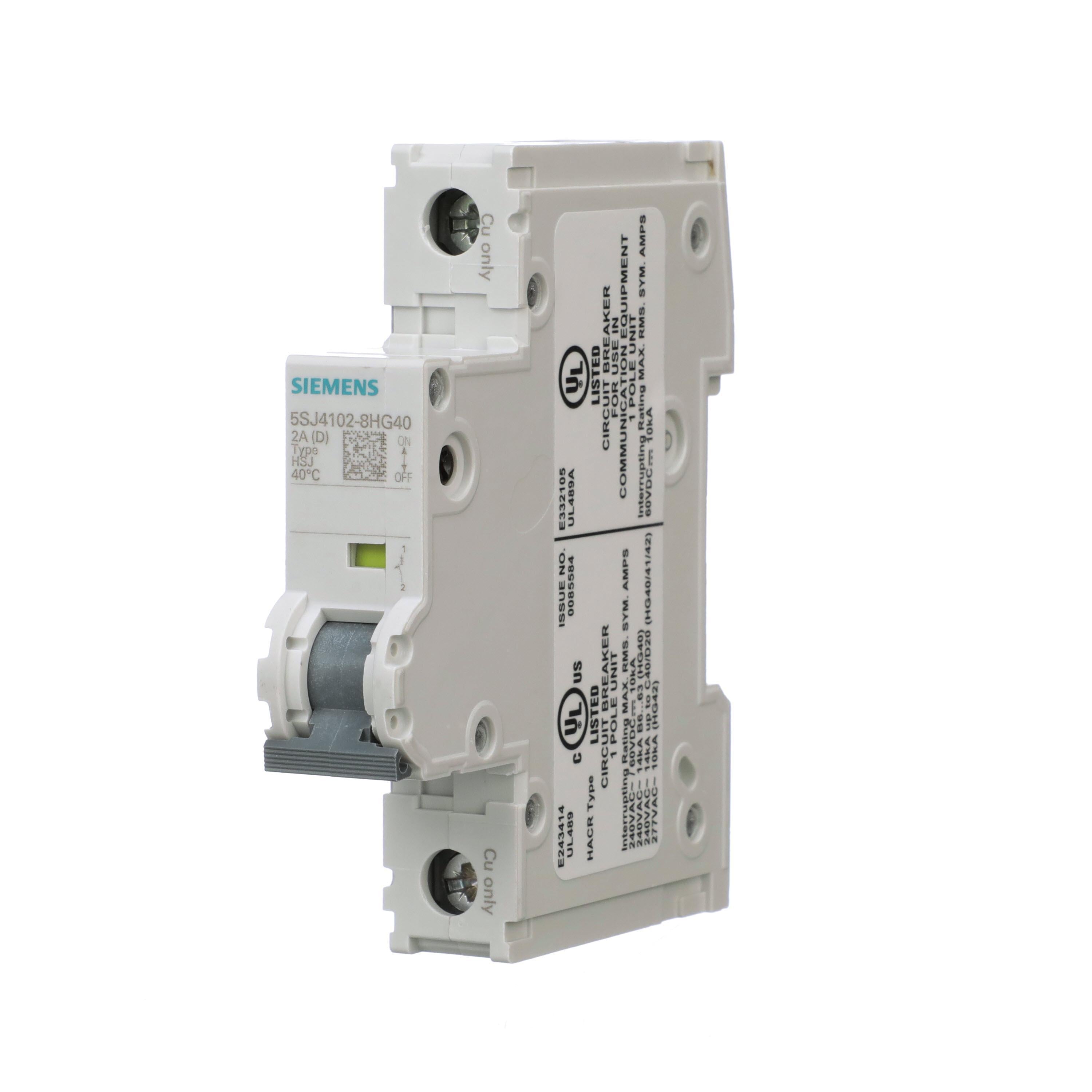

Siemens 5SJ4102-8HG40 Sentron Miniature Circuit Breaker 2 A

Product Description

The Siemens 5SJ4102-8HG40 Sentron Miniature Circuit Breaker, Type HSJ, is designed for 240 VAC applications with a 2 A current rating. It features a 14 kA interrupt rating and a thermal/magnetic trip mechanism. This circuit breaker is suitable for providing reliable protection for electrical systems.

• 40 deg C calibration base for industrial applications
• Can be used for field wiring applications 14 to 4 AWG copper only
• D-trip is designed for high inrush loads, magnetic trip point is 10 to 20 times the MCB rating

Product Highlights

Miniature circuit breaker with thermal/magnetic trip, handle actuator, and DIN rail mounting.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ4102-8HG40

Technical Specifications

• Brand: Siemens
• Part Number #: 5SJ4102-8HG40
• Type: Type HSJ
• Voltage: 240VAC 60VDC
• Amperage: 2 A
• Frequency: 50 Hz
• Interrupt Rating: 14 kA
• Trip Type: Thermal/Magnetic Trip
• Number of Poles: 1
• Phase: 1 ph
• Actuator: Handle Actuator
• Connection: Line/Load/Screw Connection
• Wire Size: 14 to 4 AWG
• Enclosure: IP20
• Mounting: DIN Rail Mounting
• Operating Temperature: -25 to 55 deg C
• Application: Branch Circuit Protection Applications
• Poles: 1P
• Trip Range (Thermal): 1.13-1.45
• Trip Range (Magnetic): 10-20
• Rating: kA IR - 14
• Actuator Style: Toggle Lever
