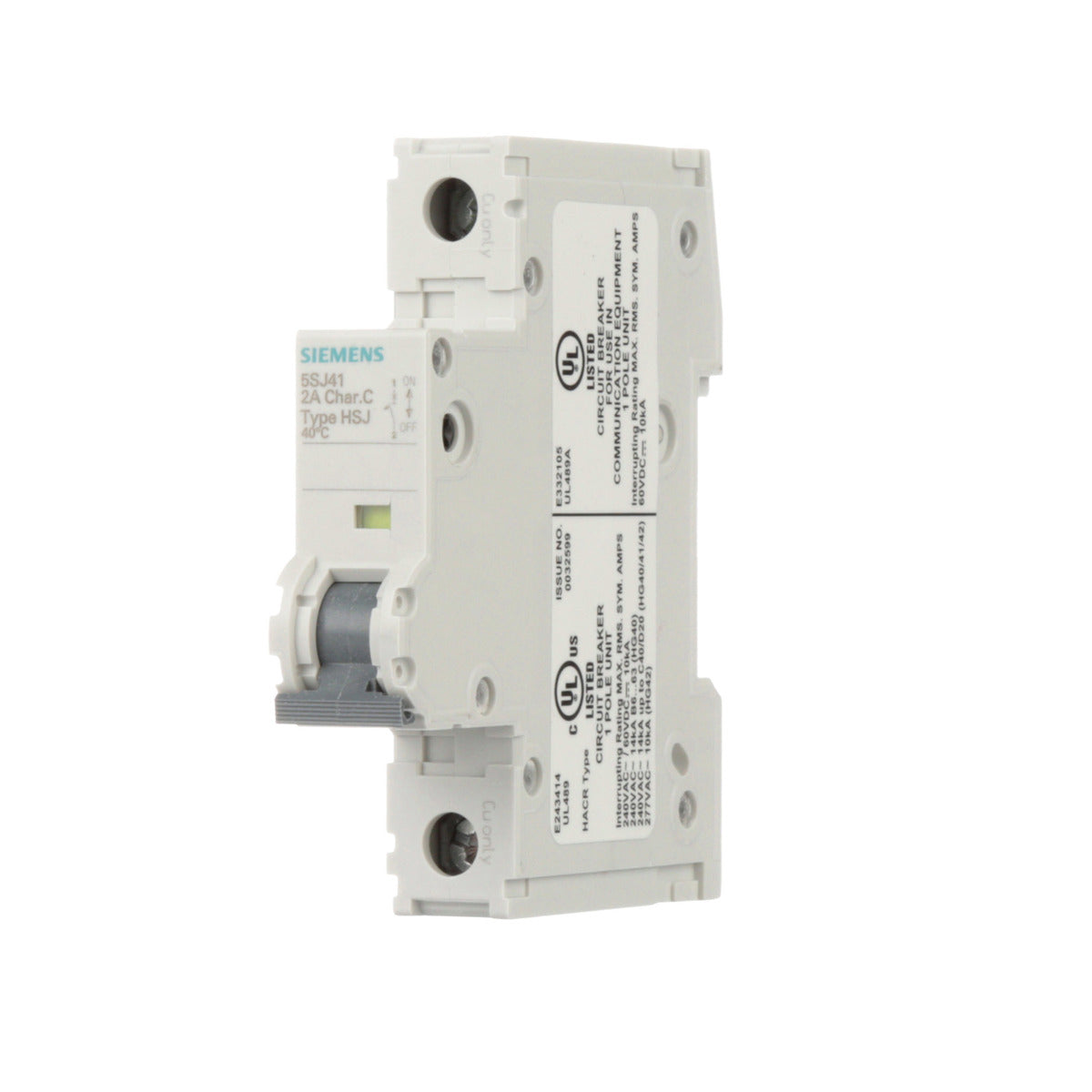

Siemens 5SJ4102-7HG40 1-Pole 240 VAC 2 Amp Miniature Circuit Breaker

Product Description

The Siemens 5SJ4102-7HG40 is a miniature circuit breaker designed for use in power distribution systems. This device operates at two amperes with a voltage rating of two hundred forty VAC. Its construction is compliant with multiple standards, ensuring reliability in various applications.

• One pole design
• Interrupt rating of fourteen kA
• Magnetic trip point of five to ten times the rated current

Product Highlights

This miniature circuit breaker is suitable for branch circuit protection, providing essential safety by cutting off power during overload or short-circuit events.

Product Information

Standard Information

• Manufacturer: Siemens
• Sub Brand: Sentron

Technical Specifications

• Catalog Number: 5SJ4102-7HG40
• Voltage Rating: 240 VAC
• Amperage Rating: 2 Amp
• Number of Poles: 1 Pole
• Interrupt Rating: 14 kAIC
• Width: 2.650 inches
• Height: 3.25 inches
• Length: 7.45 inches
• Weight: 0.370 lb
• Country of Origin: Germany
• Frequency Rating: 50 Hz
• Material: Thermoplastic
• Application: Branch Circuit Protectors
• Connection Type: Identical wire screw connections on line and load side
• Mounting Type: 35 mm DIN Rail
• Standards: UL 489, CSA 22.2 No. 5-02, HACR Rated
