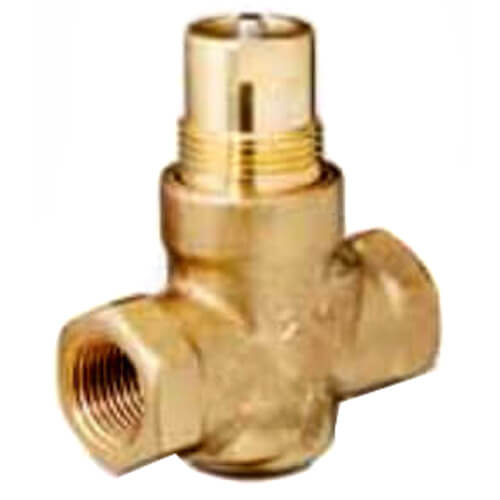

Siemens 59902043 1/2 2-Way N/O Brass Equal Percentage Globe Valve Body Angle Female x Union Male 4 Cv

Product Description

The Siemens 59902043 is a 1/2 valve body designed for HVAC applications. This globe valve operates at a flow capacity of four Cv and can be coupled with pneumatic or electronic actuators. The valve features a two-way design and an angle female x union male connection.

• Direct-coupled universal bonnet, no tools needed for installation.
• Compatible with brass or stainless steel trim and ANSI Leakage Class IV standards.
• Rated for steam applications up to 15 psi.

Product Highlights

This valve is ideal for applications controlling hot or chilled water, glycol solutions, or steam. The 59902043 can operate with a stroke of seven thirty-seconds of an inch, providing a flexible solution for various systems.

Product Information

Standard Information

• Brand: Siemens
• MPN: 59902043

Technical Specifications

• Connection Size: 1/2 inches
• Body Pattern: 2-Way
• Flow Capacity (Cv): 4
• Position: Normally Open
• Max Temperature: 250 °F
• Min Temperature: 20 °F
• Application: Point of Source
• Weight: 3 lbs
