Siemens 599-10358 3-way Ball Valve 6.3 Cv (3/4 in)

Product Description

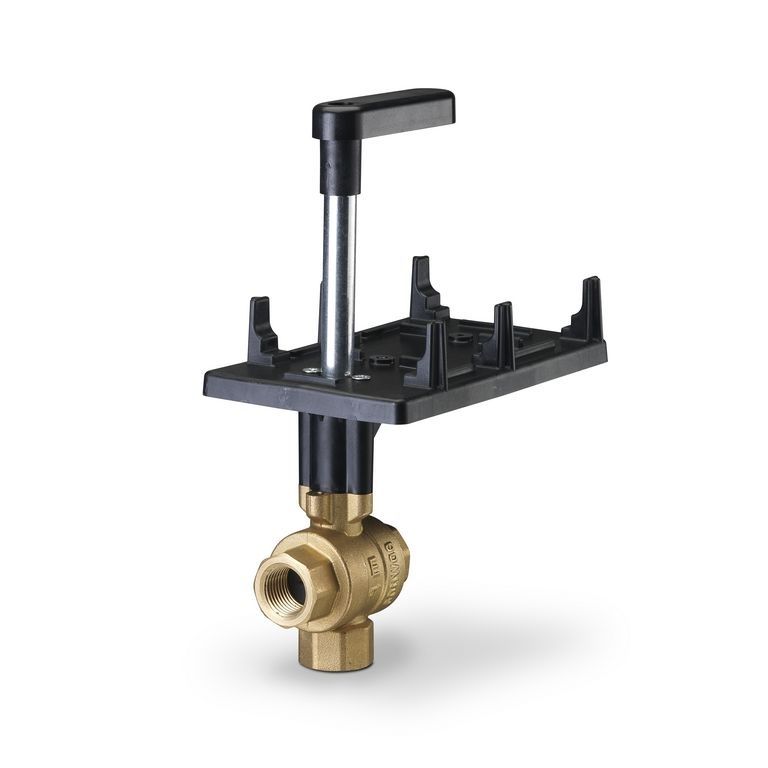

Siemens 599-10358 is a 3-way ball valve with a 3/4 inch NPT connection and a flow coefficient (Cv) of 6.3. The valve features a chrome-plated ball with a brass stem, an ANSI 250 rated body, and a blow-out proof stem for high-pressure service. It is intended for mixing or diverting hot or chilled water and glycol solutions to 50% across an operating range of 35 to 250 F.

• 3-way mixing/diverting ball valve, 3/4 in NPT port, Cv 6.3
• Body rated ANSI 250 with 200 psi close-off pressure; operating temperature 35 F to 250 F (2 C to 121 C)
• Chrome-plated ball and brass stem, universal mounting plate, suitable for water and glycol solutions to 50%

Product Highlights

3/4 in 3-way valve, 6.3 Cv, ANSI 250 body, 200 psi close-off, chrome-plated ball with brass stem, for hot/chilled water and up to 50% glycol

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-10358
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number (MPN): 599-10358
• Product Type: 3-way ball valve
• Valve Pattern: 3-way mixing/diverting
• Size: 3/4 in (0.75 in)
• Port Size: 3/4 in
• End Connection: NPT
• Flow Coefficient (Cv): 6.3
• Material / Construction: Chrome-plated ball with brass stem
• Trim: Plated brass
• Valve Body Rating: ANSI 250
• Close-off Pressure: 200 psi
• Flow Characteristic: Equal percentage
• Operating Temperature: 35 F to 250 F (2 C to 121 C)
• Media Compatibility: Water and glycol solutions up to 50%
• Mounting Type: Universal mounting plate
• Stem Feature: Blow-out proof stem
• Weight: 635 g
• Dimensions: 6.36 x 8.62 x 2.99 in
• Leakage Class: ANSI Class IV
• Static Pressure: 360 psi
• Ball Material: Chrome-plated (nickel- or chrome-plated brass options reported)
• Stem Material: Brass
• Angle of Rotation: 0 to 90 degrees
• Actuator Compatibility: Siemens GDE, GLB, GMA, GQD
