Siemens 599-10322 1.5 inches 2W 25 Cv Ball Valve (1.5 in)

Product Description

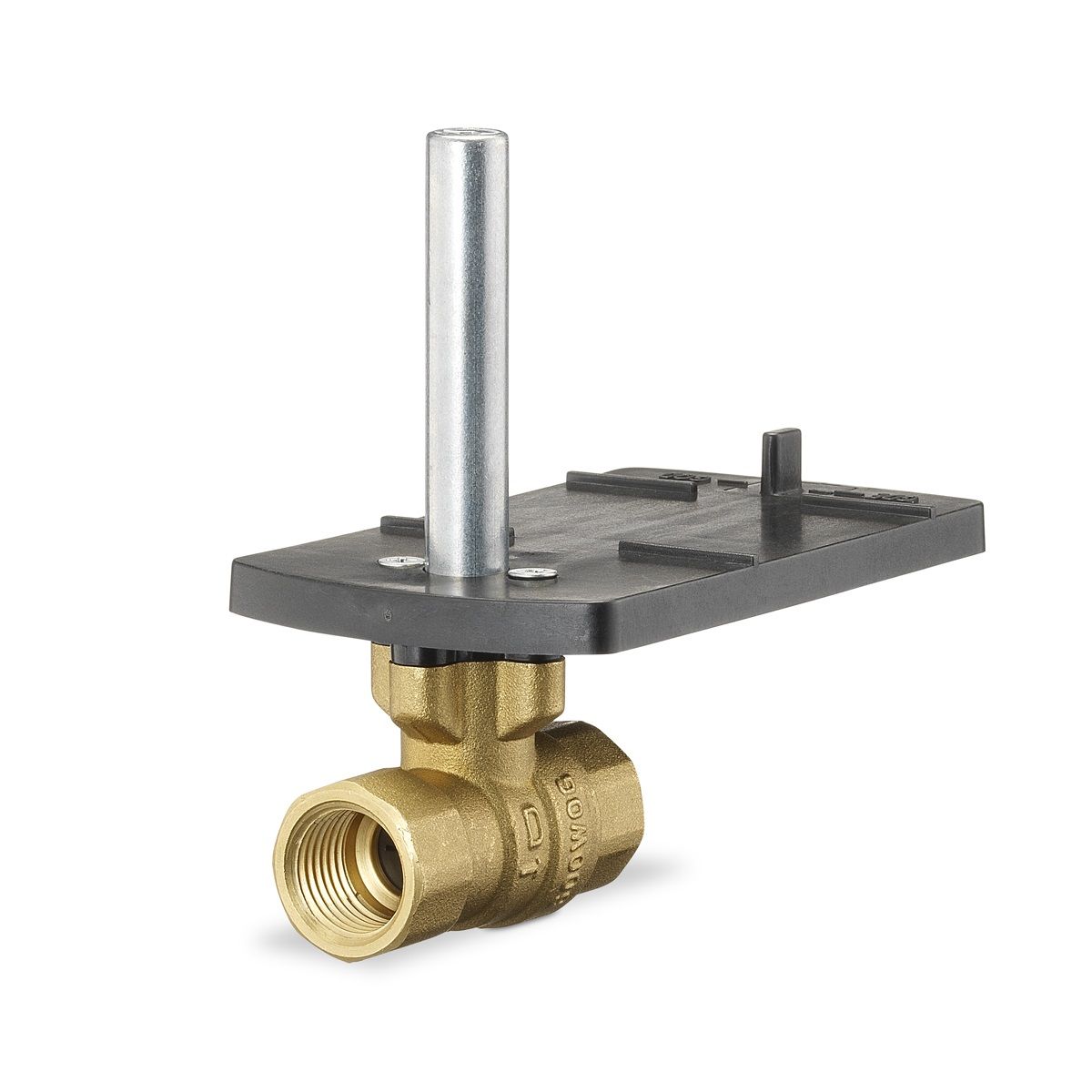

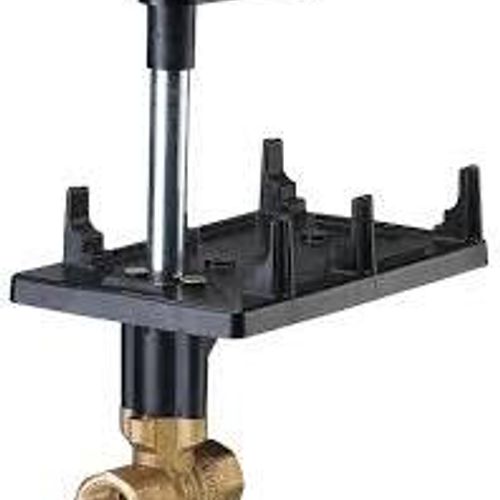

Siemens 599-10322 is a 1.5-inch, 2-way ball valve with a 25 Cv flow coefficient intended for HVAC control applications. It includes a chrome-plated brass ball and brass stem, female NPT connections, and an operating handle for manual operation during power failure. The valve is compatible with hot or chilled water and up to 50% glycol, has an equal-percentage flow characteristic, and a 200 psi close-off rating with maximum temperatures up to 250 F.

• 1.5 in 2-way ball valve, Cv 25, female NPT connections; chrome-plated brass ball and brass stem
• Close-off pressure 200 psi; equal-percentage flow; operating temperature range up to 250 F (2 C to 121 C)
• Compatible with hot or chilled water and up to 50% water-glycol solutions; includes manual operating handle

Product Highlights

1.5 in 2-way valve, 25 Cv, chrome-plated brass ball, female NPT, 200 psi close-off, compatible with up to 50% glycol

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-10322
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 599-10322
• Model / MPN: 599-10322
• Series: 599 Series
• Valve Type: 2-way ball valve
• Size / Port: 1.5 in (1-1/2 in)
• Cv (Flow Coefficient): 25 Cv
• Connection Type: Female NPT
• Ball Material: Chrome-plated brass
• Stem Material: Brass
• Body Material: Brass
• Flow Characteristic: Equal percentage
• Close-off Pressure: 200 psi
• Operating Temperature: 35 F to 250 F (2 C to 121 C)
• Media Compatibility: Hot or chilled water, up to 50% glycol
• Item Weight: 2.8 lb
• Product Dimensions: 4 x 2.75 x 3.25 inches
• Package Quantity: 1
• Manual Operation: Operating handle for manual operation during power failure
• Actuator Compatibility: Siemens GDE, GLB, GMA, GQD
• Body Rating: 600 (WOG/ANSI 250/600 WOG)
• Leakage Class: ANSI Class IV
• Static Pressure: 360 psi
• Angle Of Rotation: 0 to 90 degrees
• Country of Origin: China
