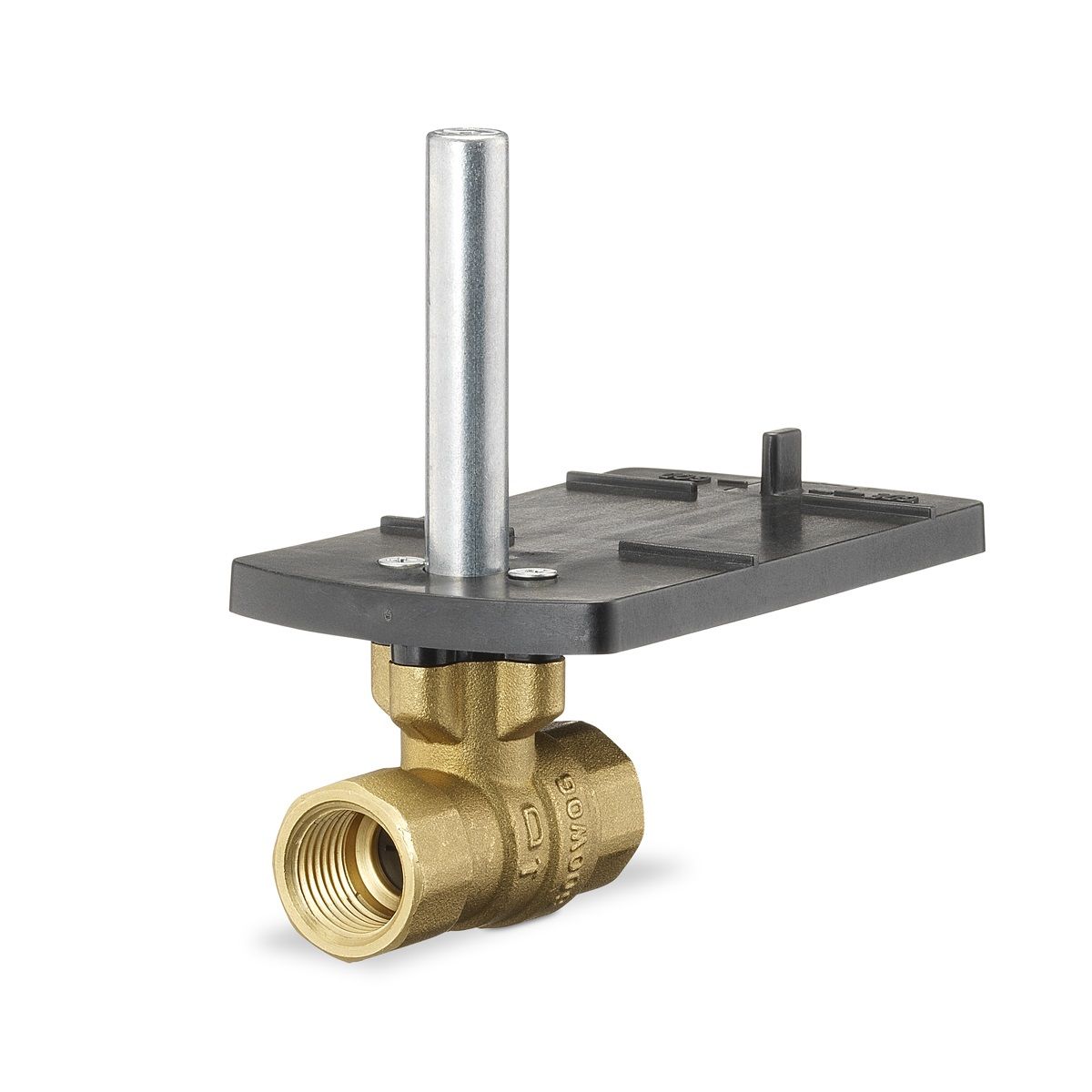

Siemens 599-10307S Ball Valve, 2 Way, 1/2 in. NPT, 10 Cv

Product Description

The SIEMENS 599-10307S is a 2-way ball valve with a 1/2 in. NPT connection and a 10 Cv flow coefficient. It features a stainless steel ball and stem, suitable for controlling chilled water, hot water, or 50% glycol solutions. It is designed for use with electric actuators in HVAC systems.

• 200 psi Close-Off With ANSI Class IV Leakage
• Blow-Out Proof Stem Withstands High Pressure

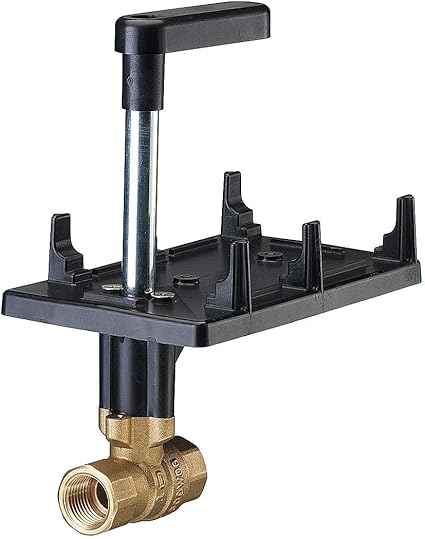

• Universal Mounting Plate

Product Highlights

This ball valve is ideal for HVAC control, offering reliable performance with its stainless steel construction and high close-off pressure.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-10307S
• Country of Origin: US

Technical Specifications

• Service: Water, 50% Water-Glycol Solution
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: 35 F To 250 F (2 C To 121 C)
• Trim: SS
• Assembly: Valve Only
• Connection: NPT
• Valve Size: 0.5 in
• Valve Piping: 2-Way
• Close-Off Rating: 600 PSI
• Material: Brass, Stainless Steel
• Safe Working Water PSI: 200 psi
• Cv: 10 CV
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1/2 in
• Connections: Female NPT
• Body Rating: Forged Brass ASTM B283, C37733
• Maximum Closeoff Pressure: 200 PSI
• Materials Of Construction: Forged Brass or Stainless Steel
• Media Compatibility: 50% Water, Glycol Solutions up to 50%
• Media temperature: 1/2" to 1-1/4" - 35° to 250°F (2° to 121°C) 1-1/2" to 2" - 35° to 230°F (2° to 110°C)
• Actuator Compatibility: Siemens GDE, GLB, GMA, GQD,
• Static pressure: 360 psi (2482 kPa)
• Flow Optimizer: Glass filled polymer
• Ball: Nickel-plated brass or Stainless Steel
• Ball seals: Reinforced PTFE seals with EPDM O-rings
• Female end connections: Brass
• Stem: Brass or stainless steel
• Stem seals: EPDM O-rings
• Angle of rotation: 0 to 90 degrees
• Close-off ratings per ANSI/FCI 70-2: Class IV for A-AB, Class III for B-AB
• Maximum operating differential pressure: 1/2" to 1-1/2": 60 psi; 2": 35 psi
• Warranty: 2 Years
• Valve Type: Ball
• Valve CV/GPM: 10
• Max Temp: 250
• Exterior Finish: Stainless Steel
• Inlet Connection Type: National Pipe Tapered
