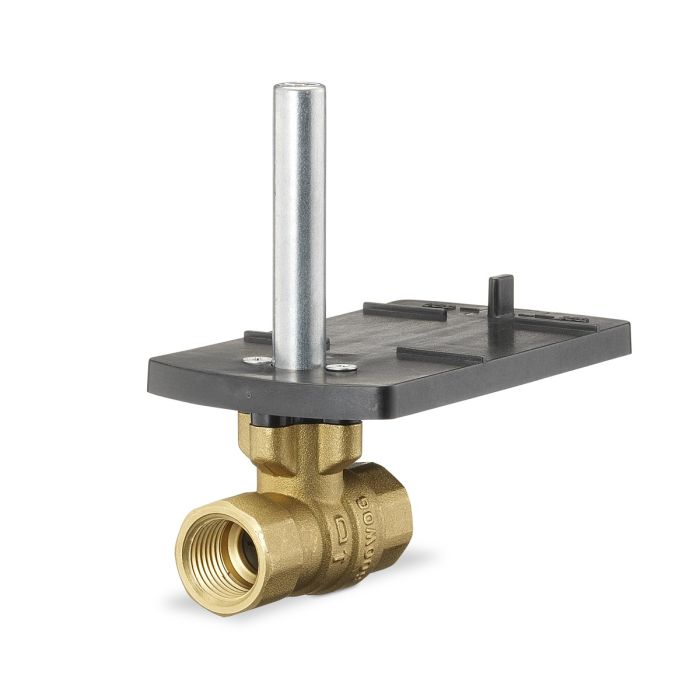

Siemens 599-10305 Ball Valve, 2 Way, 1/2 in. NPT, 4 Cv

Product Description

The Siemens 599-10305 is a two-way ball valve designed for industrial applications. It features a connection size of one-half inch with a four Cv flow capacity. This valve is useful in controlling the flow of hot or chilled water, as well as up to fifty percent glycol solutions in HVAC systems.

• Suitable for various applications like fan coil units and reheat coils.
• Developed with a chrome-plated finish and brass stem for durability.
• 200 psi close-off pressure ensures reliable operation.

Product Highlights

The Siemens 599-10305 is built to provide dependable service in managing fluid flow. Ideal for controlling water in HVAC systems, its compact design makes installation straightforward.

Product Information

Standard Information

• MPN: 599-10305
• Brand: Siemens

Technical Specifications

• Service: Water, 50% Water-Glycol Solution
• Close-Off Pressure: 200 psi
• Operating Conditions: 35 F To 250 F (2 C To 121 C)
• Flow Characteristic: Equal Percentage
• Dimensions: 5.15 x 5.65 x 3.75 inches
• Weight: 0.8 lbs
• Part #: 599-10305
• Features: Blow-Out Proof Stem Withstands High Pressure, Universal Mounting Plate
