Product Description

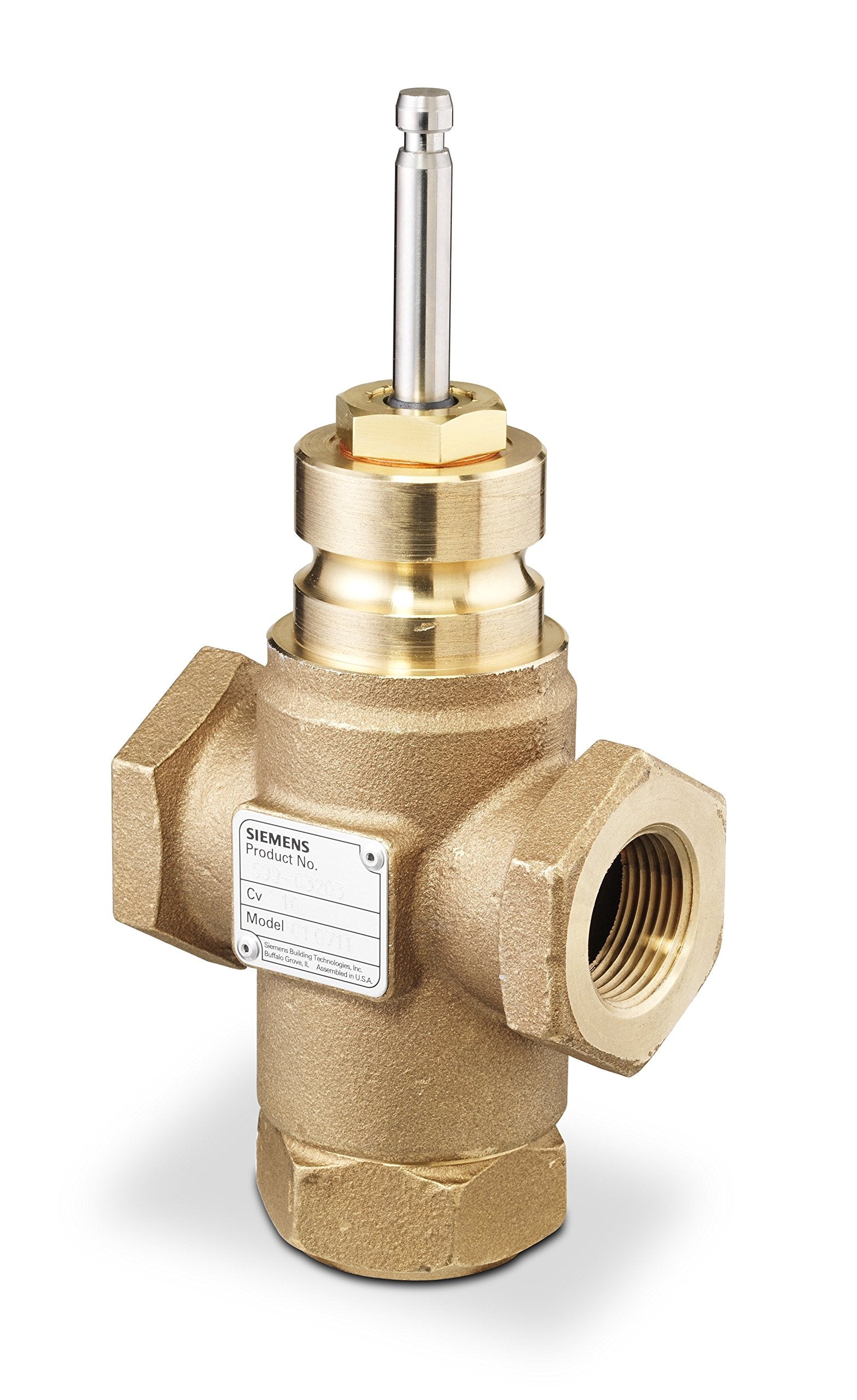

The Siemens Building Technology 1 Mixing Valve Body, model 599-03203, is designed for high-performance fluid control in HVAC systems. It features a 3-way valve pattern, which allows for precise mixing of hot and chilled water or other fluids. This makes it suitable for applications in hydronic systems and temperature control. The valve can handle high flow rates with a capacity of ten cubic feet per minute, ensuring efficient operation.
- 3-way mixing valve pattern
- Ten cubic feet per minute flow capacity
- Body rated for pressures up to 250 psi
Product Highlights
This mixing valve is compact and lightweight, enabling straightforward installation in tight spaces. It is built for durability, with brass trim that withstands high temperatures and pressures.
Product Information
Standard Information
-
Brand: Siemens Building Technology
-
MPN: 599-03203
Technical Specifications
-
Item Number: 599-03203
-
Max Flow Rate: 10 CV
-
Body Rating: 250 psi
-
Max Temperature: 250 °F
-
Length: 9.55 inches
-
Width: 8.6 inches
-
Height: 3.25 inches
-
Weight: 5.17 lbs
