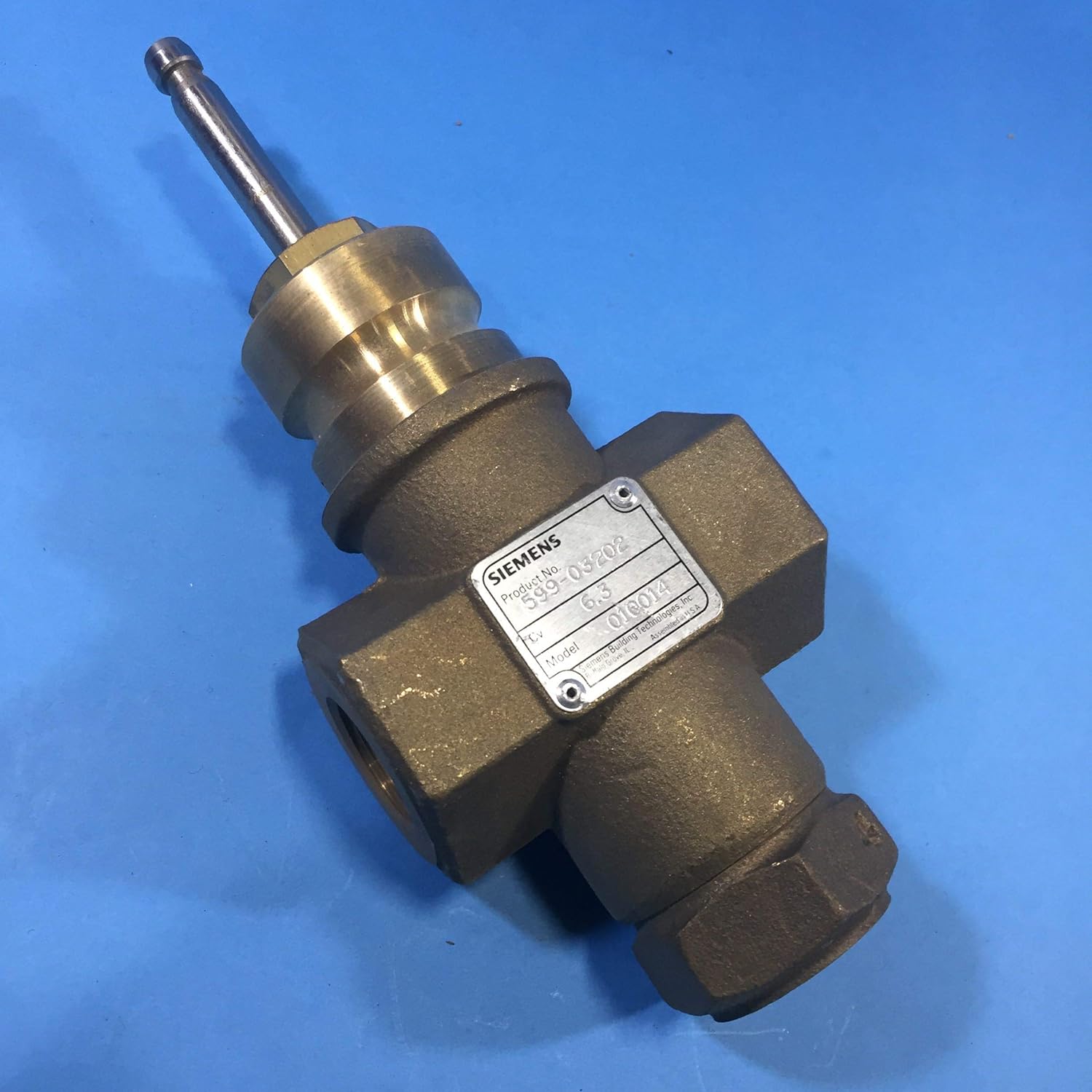

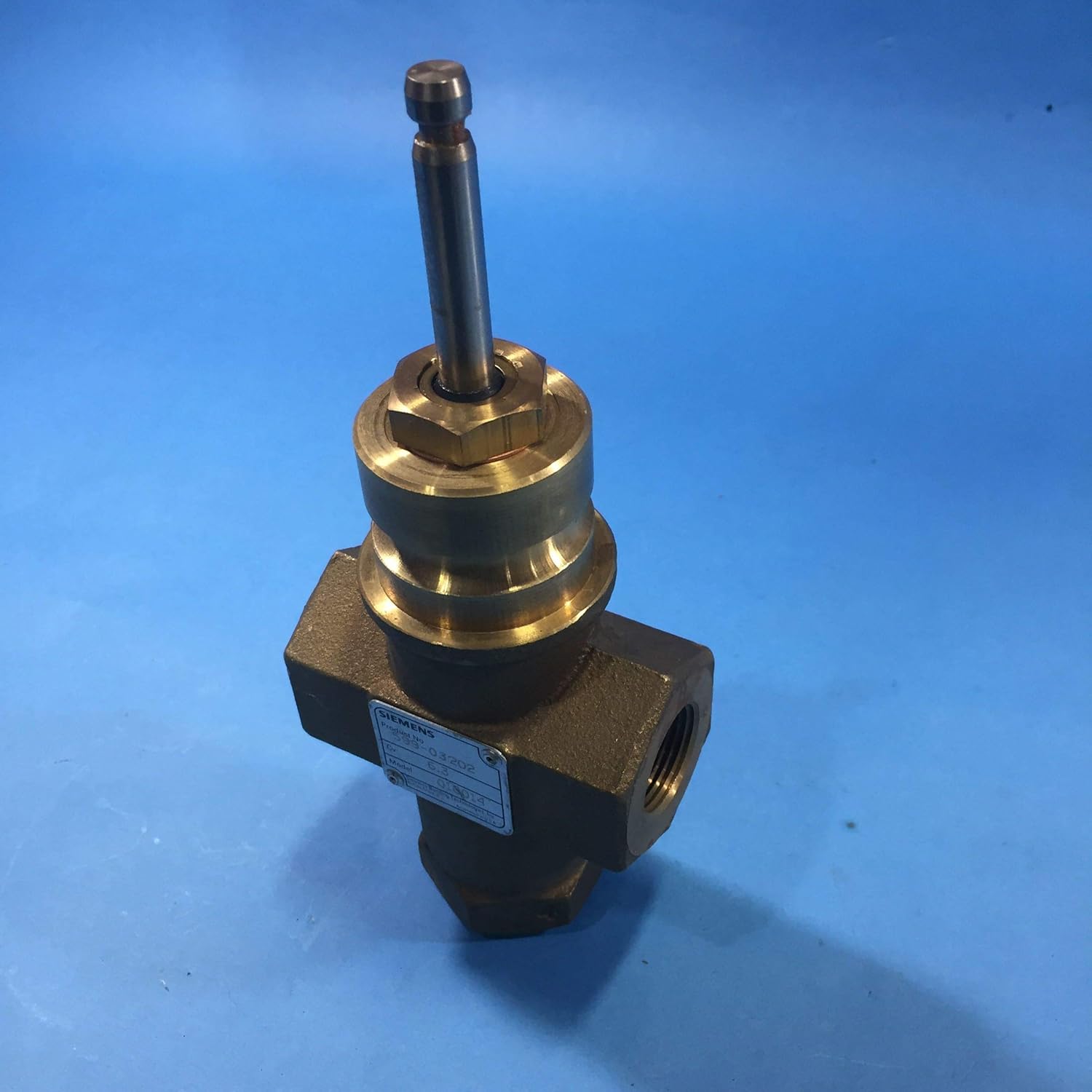

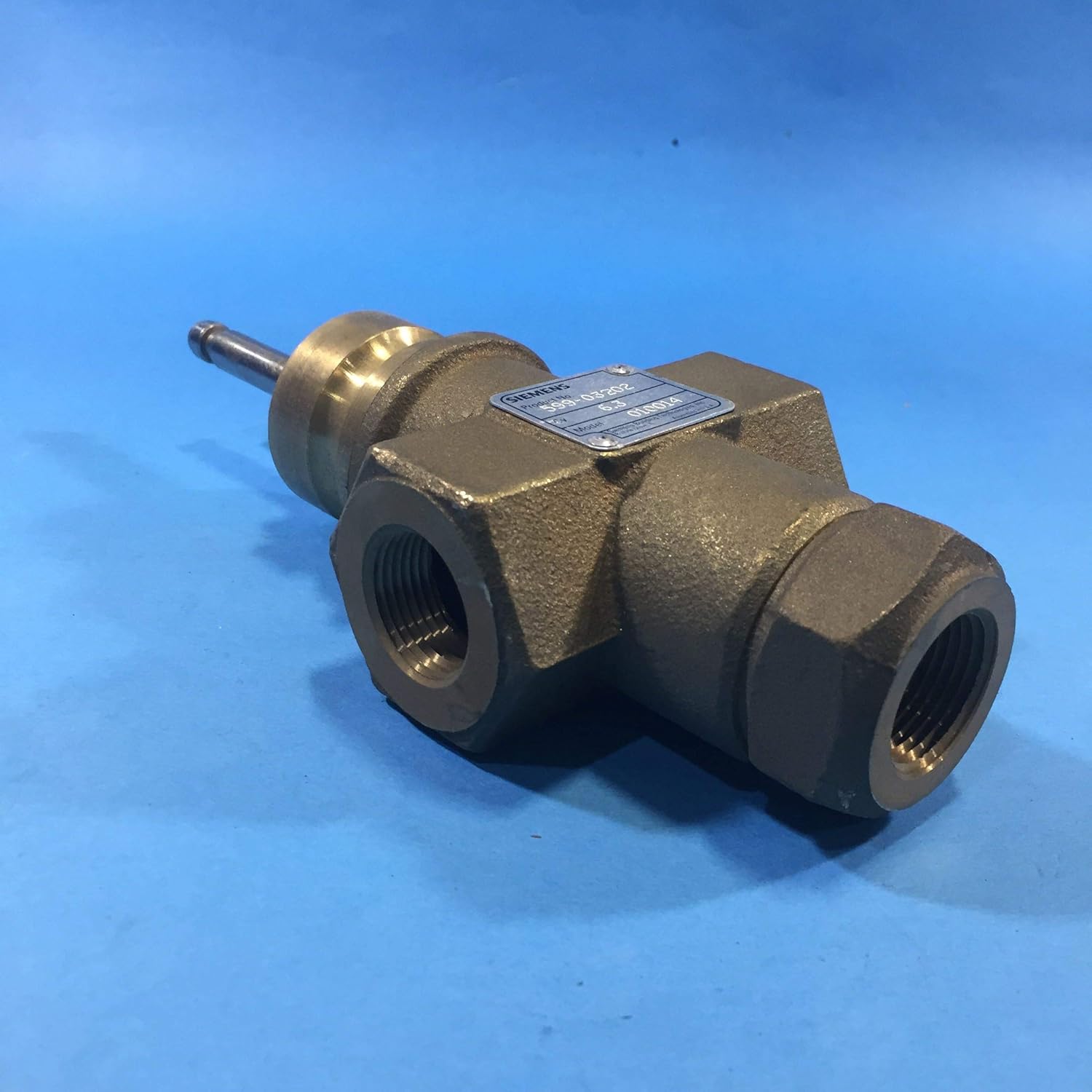

Siemens 599-03202 3/43W.VLV.BZ,250,6.3 CV,WATER

Product Description

The Siemens 599-03202 is a three-way mixing valve designed to regulate water flow in heating and cooling applications. This valve features a flow rate of six point three Cv, making it suitable for commercial and industrial use. The body of the valve is made of durable brass, ensuring long-lasting performance. The valve is designed for easy installation and has female connections.

• Flow rate: 6.3 Cv
• Maximum temperature: 250 degrees Fahrenheit
• ANSI leakage class IV compliance

Product Highlights

This valve is essential for precise flow control in HVAC systems, ensuring efficient temperature regulation.

Product Information

Standard Information

• Brand: Siemens Building Technology
• Type: Globe Valve
• SKU: 599-03202

Technical Specifications

• Item Number: 599-03202
• Body Pattern: 3-Way
• Connection Size: 3/4 inches
• Connection Type: Female x Female
• Maximum Flow Capacity: 6.3 Cv
• Material: Brass
• Shipping Weight: 4 pounds
• Dimensions: 3.31 x 1.75 x 4.31 inches
